Hello,

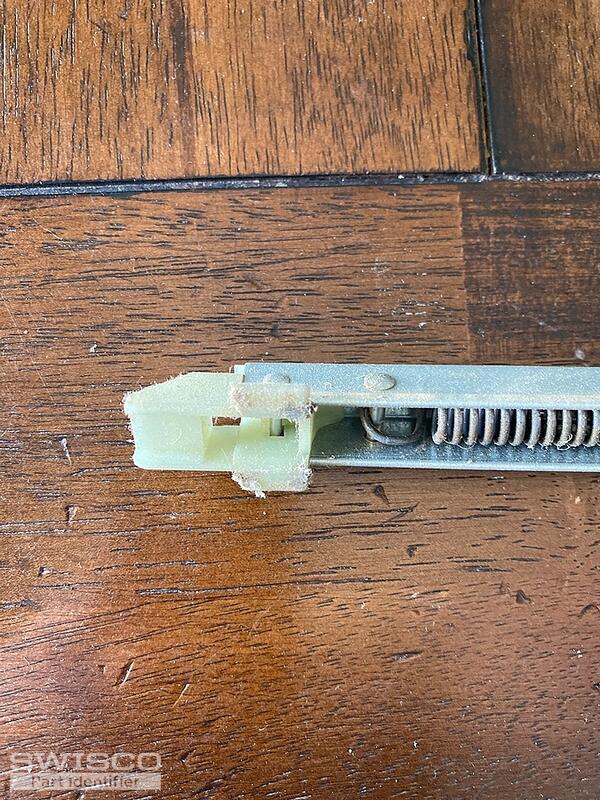

The string in one of my window balance springs broke, I need a replacement balance. I have attached photos, the original balance is stamped "25-2 HI5 CMC 50". The metal channel is 1/2" wide and 26" long, I just need the proper replacement with the correct plastic ends, mine has "wings" on both plastic end pieces.
Thank you!
Non-tilt Window Balance Spring
Home Owner from Arizona
Apr 11, 2021 4:09 pm
4 user uploaded images
2 Replies
Emily from SWISCO
Apr 15, 2021 8:37 am
Hello! You could either have an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a strength option of 2520. If you have any further questions please let us know!
Comparison of the S378, S380 and S385 balance shoes.
