Non tilt balance

Quick Learner from Orange, CA

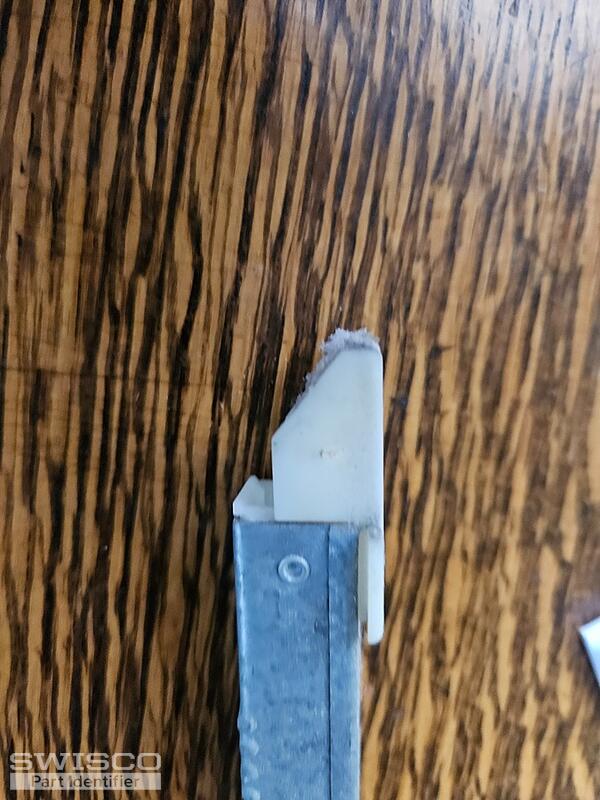

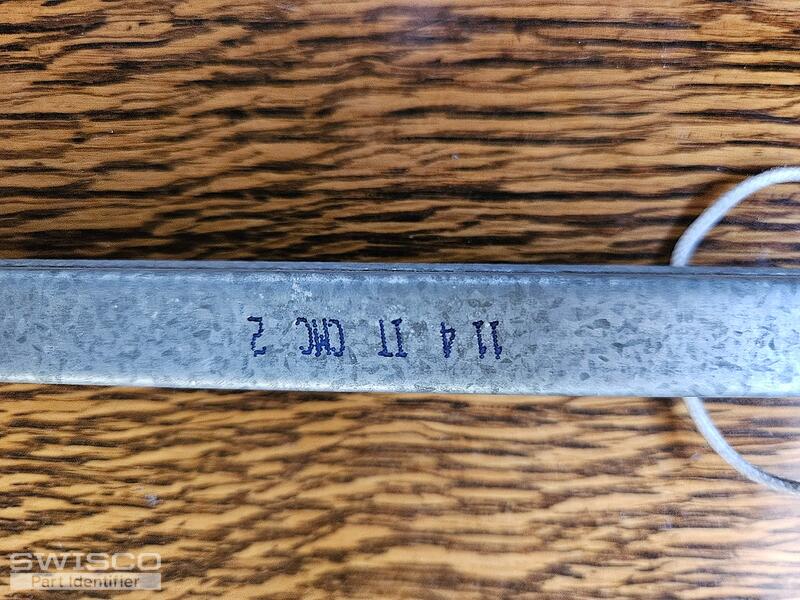

Length of balance is 12" (metal channel). Stamps read 11 4 IT CMC2. Channel is 1/2" wide. Would need 2. Please advise which replacement part would be appropriate. Thank you.
5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for writing in. This looks like either an S380-12 or S385-12 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Measure the depth of your existing balance's shoe to determine which Series matches best. In either case, for a new stamp option choose 1140. Let me know if you have questions.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Orange, CA
Thanks for the quick response, Bob! Measured as you suggested and it looks like the S385-12 is the one I need. Stamp option?
Bob
Bob from SWISCO
SWISCO
Expert

Great! Based on your old stamp of 11 4, you can use our 1140. Two balances with this stamp can carry a sash weighing 11 through 12 pounds. You can always weigh your sash on a scale to verify that, if you wish.
