Non tilt channel balance for All Weather vinyl non tilt. : SWISCO.com

Home Owner from San Jose CA

Jul 18, 2023 12:11 am

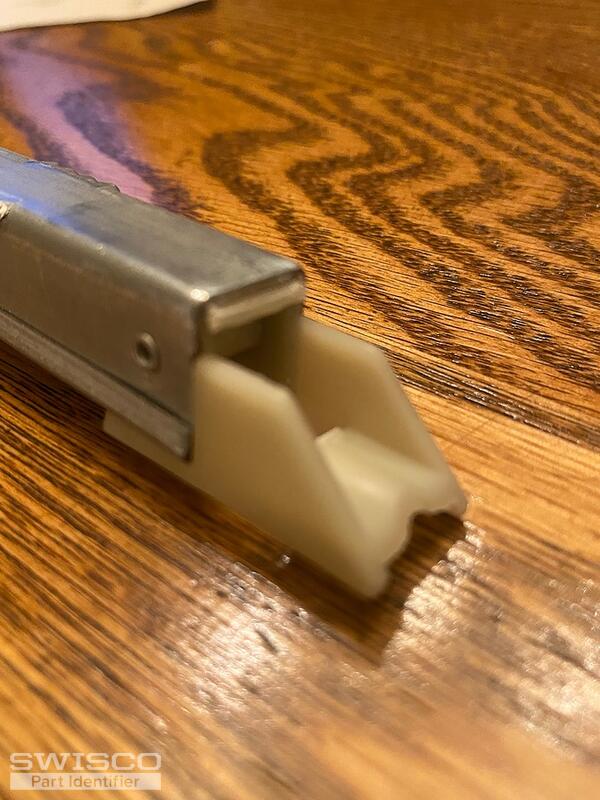

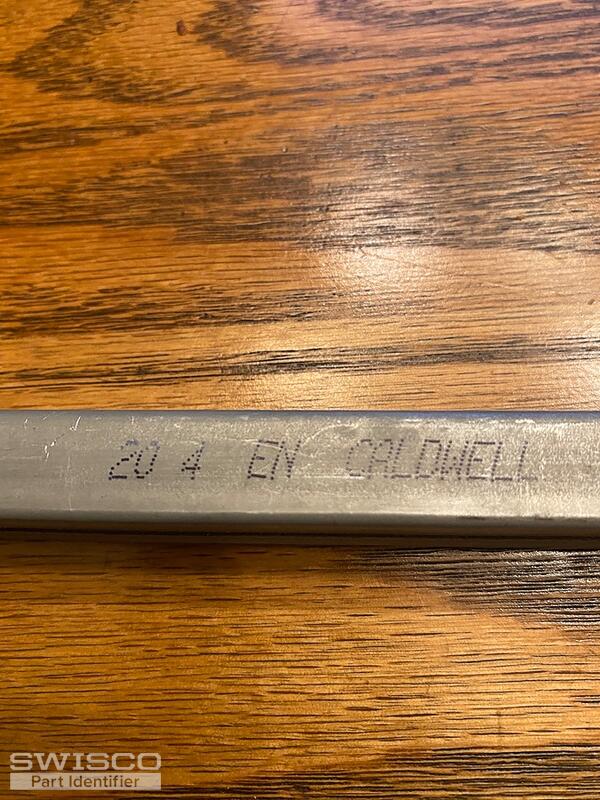

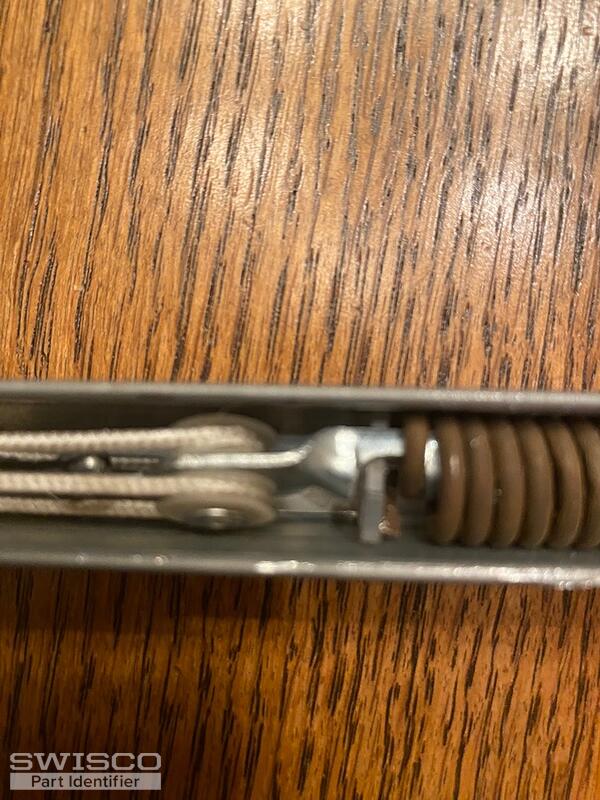

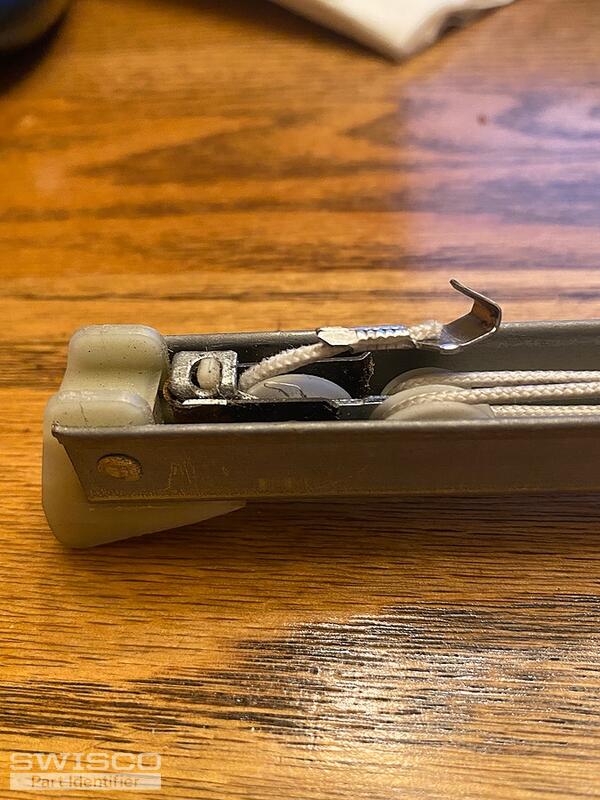

Actual length of metal channel 21 1/16 inches. Stamped 20 4 EN. CALDWELL. Manufactured by ALL WEATHER,
VACAVILLE Calif in 1995

4 user uploaded images

5 Replies

Home Owner from San Jose CA

Jul 18, 2023 1:00 am

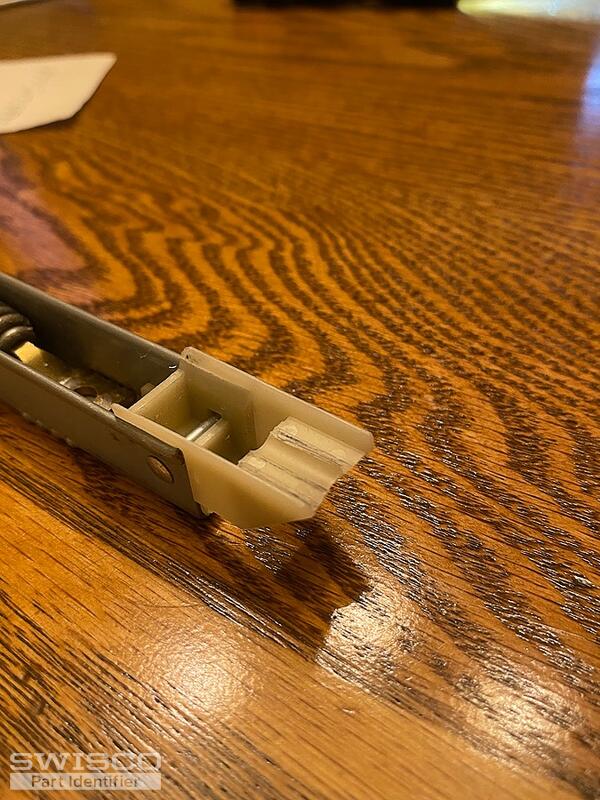

I forgot to include the channel width which is 9/16" inch

1 user uploaded image

Casey from SWISCO

Jul 18, 2023 1:23 pm

Hello,

It looks like you have either our S351-21, with a 15-002 bottom attachment, or S390-21, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2040 spring strength option for your replacement balances. Thank you!

Comparison of the S351 and S390 balance shoes.

Home Owner from San Jose CA

Jul 18, 2023 6:00 pm

It looks like mine is the S390 15-001. Should I order the 20 inch or 21 inch? It's stamped 20 - 4 but Actual measurement is
21 1/16". Thanks

Casey from SWISCO

Jul 19, 2023 8:22 am

In that case, you would need the 21" long S390-21 channel balance with a 2040 strength option.
