Non tilt sash . Window balance

A handy person from Sanibel FL says:

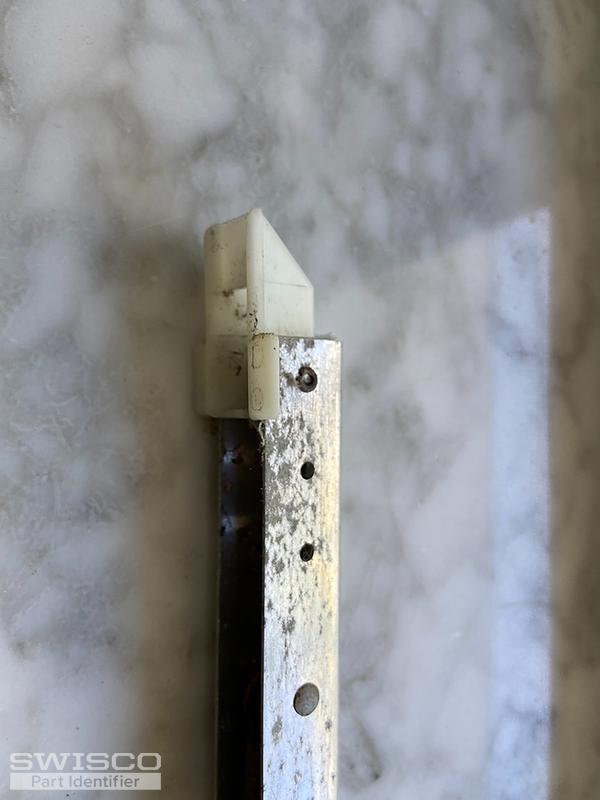

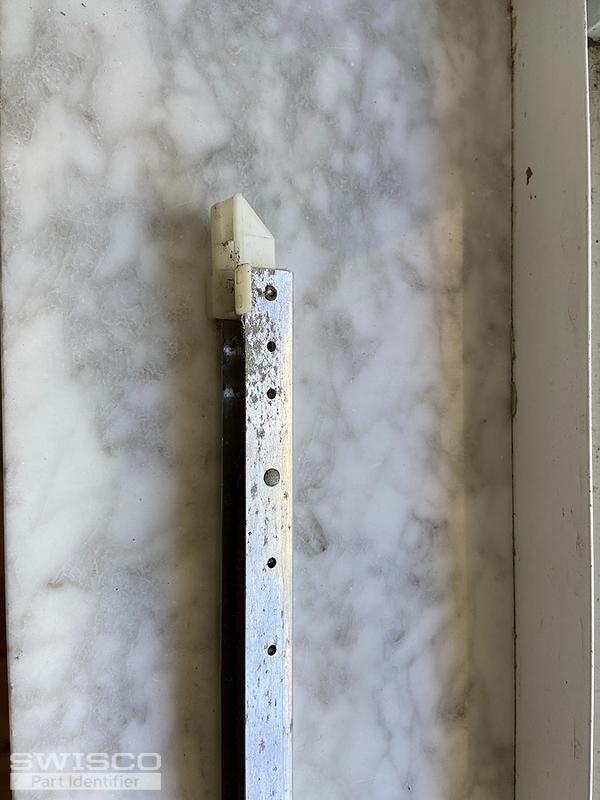

2920 B.S. I. Stamped . 1/2 channel, 30 inch long channel ( metal part)
Thumbnail of the uploaded file named 2E217A8F-3618-4F18-B82A-6DD635B4F8DE.jpeg
Thumbnail of the uploaded file named 1C038676-5484-43BF-85A4-D89CDBD3A177.jpeg
Thumbnail of the uploaded file named BC6301AF-2F31-49BE-B9E9-0363669DBB65.jpeg
Thumbnail of the uploaded file named A47B678D-4E7F-4C71-A3C5-5489D93B7147.jpeg
Thumbnail of the uploaded file named 120C9BF6-2CE4-4943-9BC1-3988EBF09D97.jpeg
A handy person from Sanibel FL says:

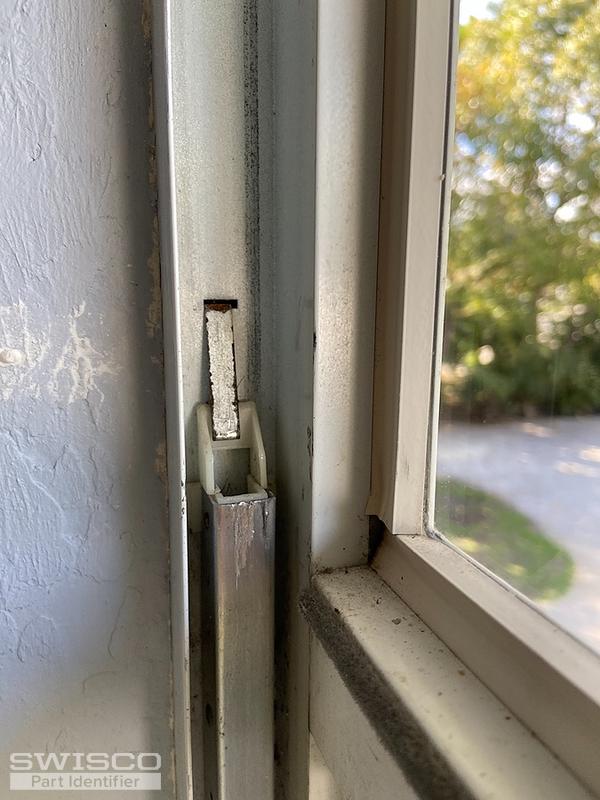

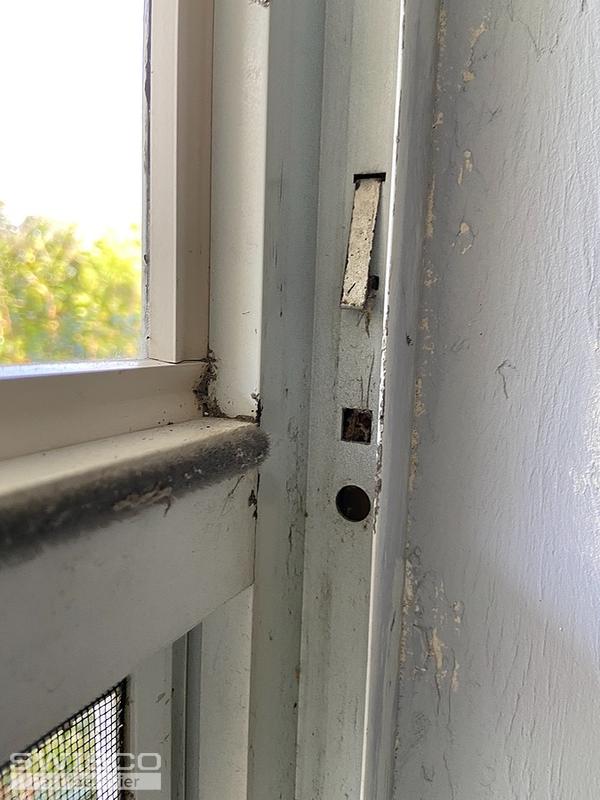

Added jamb photos
Thumbnail of the uploaded file named 7D37B6F9-875A-41B1-9DBE-8FE60733444B.jpeg
Thumbnail of the uploaded file named F08C2F33-0A01-459A-840E-29FA5721FACB.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2920 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.



Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A handy person from Sanibel FL says:
Measures as 7/8 " ????
See photo.
Thanks
Profile picture of Casey
Casey from SWISCO responded:

We do have a smaller shoe with a depth of 7/8", which would be our 15-029. This shoe does not come with any of our stock balances but we can have them custom made for you. We'll just need to know how many balances you need to get an order link and price quote together for you. Thank you!

A handy person from Sanibel FL says:
I would need 4 window balances (2 windows at 2 each)
Profile picture of Casey
Casey from SWISCO responded:

We just sent over an order link and price quote for these balances. Please let us know if you need anything else.
