Non tilt window balance
Handy Person from Howell NJ
May 19, 2025 4:59 pm

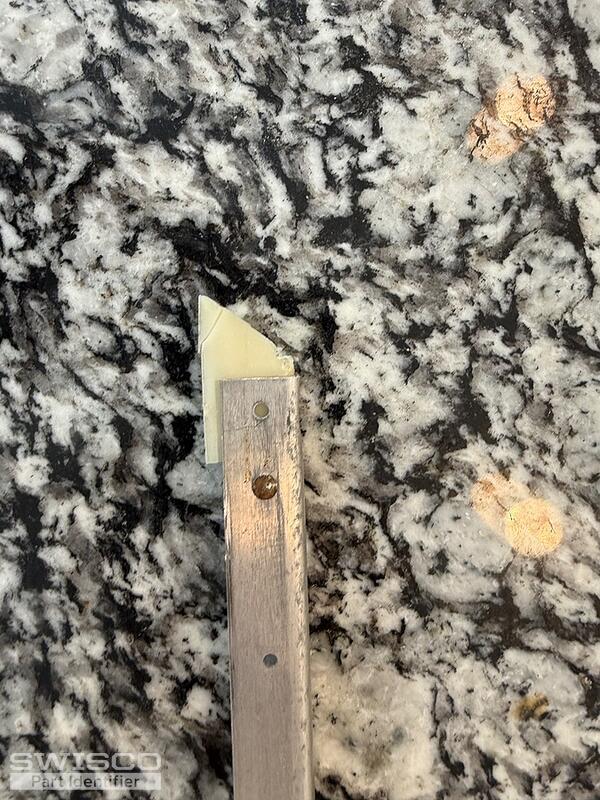

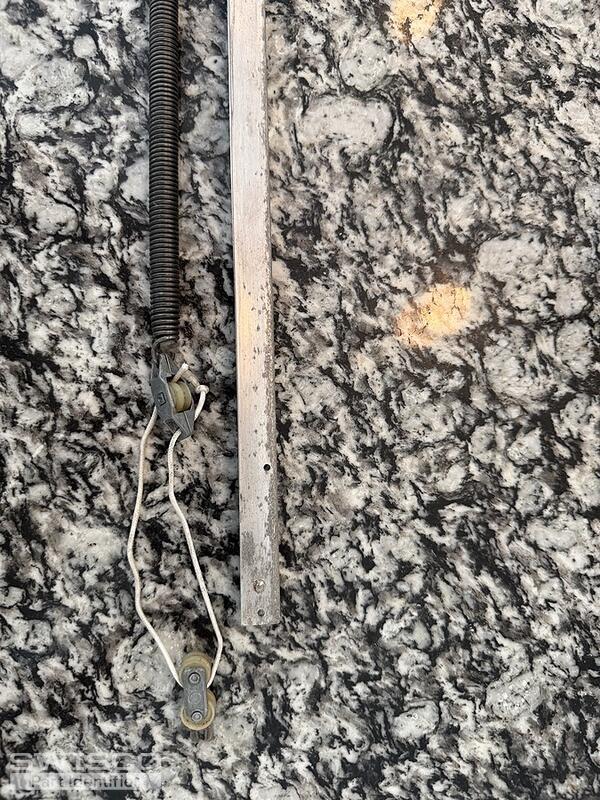

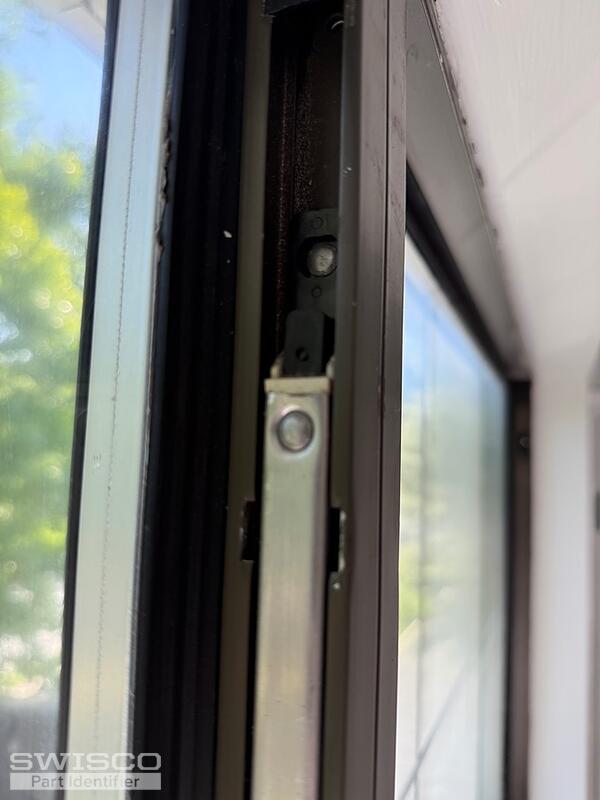

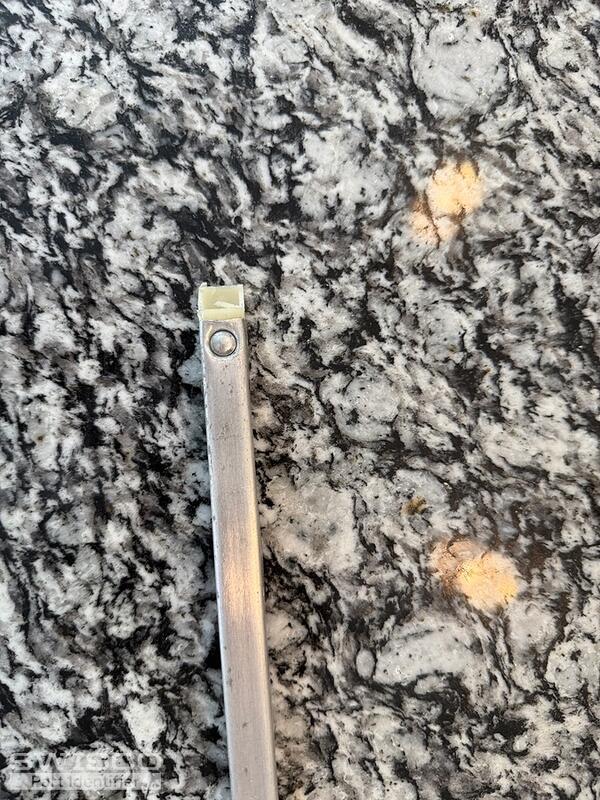

Some windows are opening half decent but have the silver bar stay down and it squeaks on the way up or down. Some close on an angle because the silver pc is not attached, some have the little black plastic hinge (supporting the window) broken or bent
3 user uploaded images
3 Replies
Handy Person from Howell NJ
May 19, 2025 5:11 pm

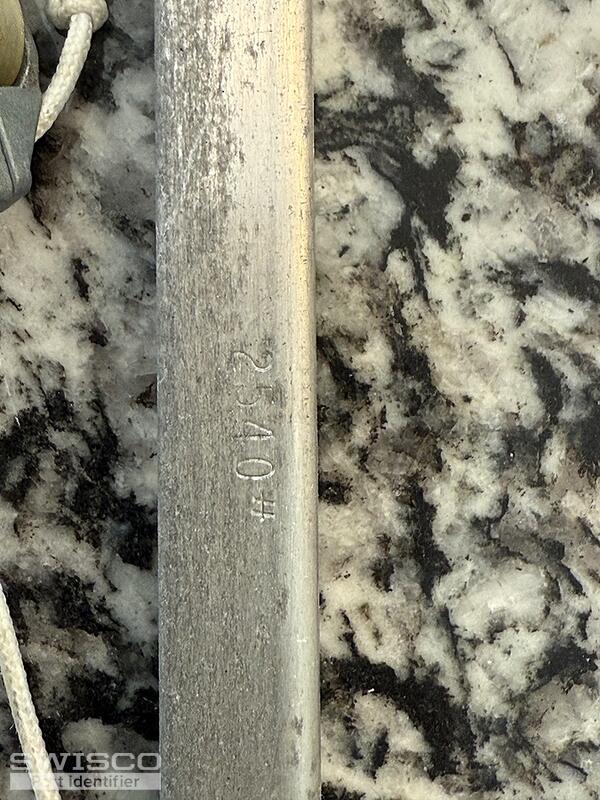

Channel is 26" long has 2540 stamp. Some have 2530 stamp and are the same size
5 user uploaded images
Jasmine from SWISCO
May 20, 2025 1:35 pm
Thanks for writing in! I am confident we can supply you with the replacement balances needed for this repair but I'll need to see a photo of the bottom attachment from the balance to identify it. The photos only display the top attachment.
Do all of the balances in each window match or do they have mismatched balance stamps?
The plastic piece securing the balance in the window is a take out clip. I'm certain the 16-009 should be the one you need but be sure to look over the dimensions to confirm.
These are available in black.
Alternate view of 16-009
Alternate image for 16-009
