Non tilt window balance : SWISCO.com

Home Owner from Oregon

Sep 11, 2025 3:01 am

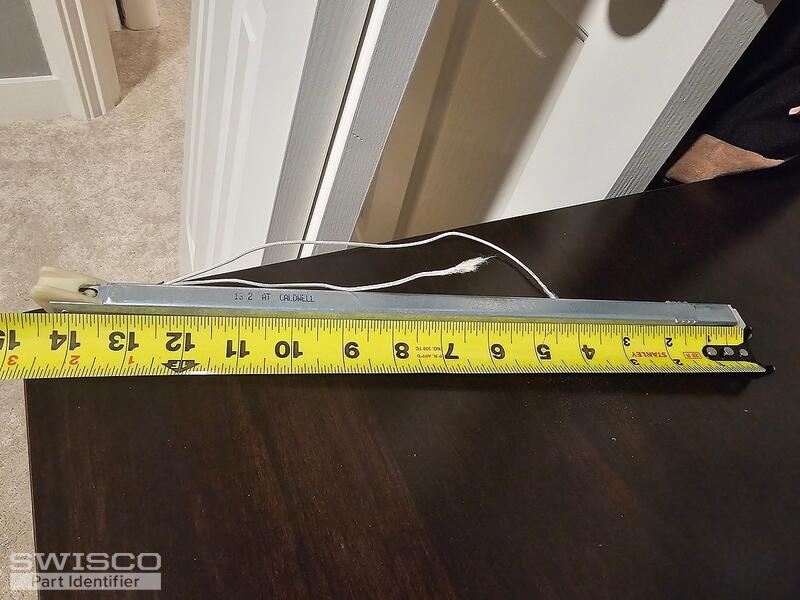

I have a 1/2 inch wide window balance that the cord snapped. I believe it is a 380 1320 but would like you to confirm for my part order. The markings on the balance say 13 2 Caldwell.

Thank you

Brian

5 user uploaded images

4 Replies

Bob from SWISCO

Sep 15, 2025 4:50 am

Hey Brian. I do think this is either a Series 380 or Series 385, depending on the depth of the bottom nylon shoe; but before proceeding, can you send me photos of the 'guts' or underside of the metal channel? Some balances from the west coast have a special design we must account for. We'll do our best to help from there.

Home Owner from Oregon

Sep 15, 2025 5:27 pm

Hello Bob

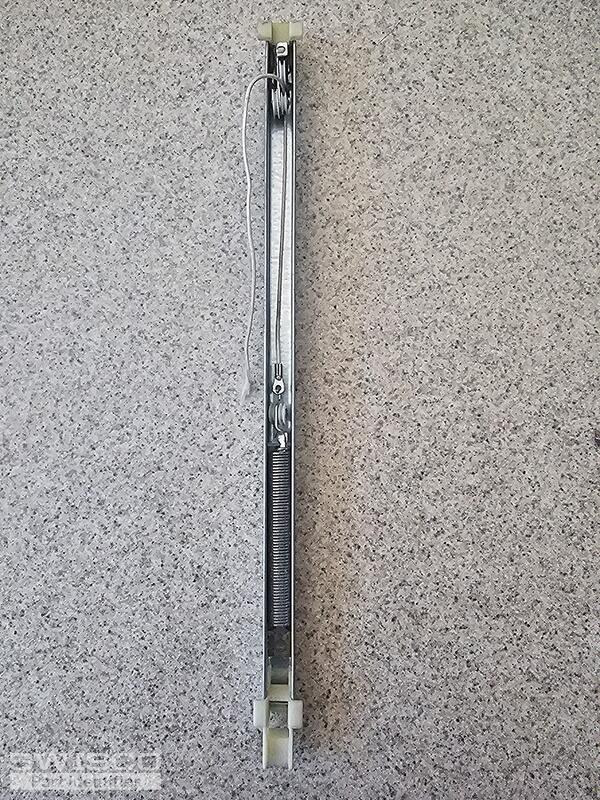

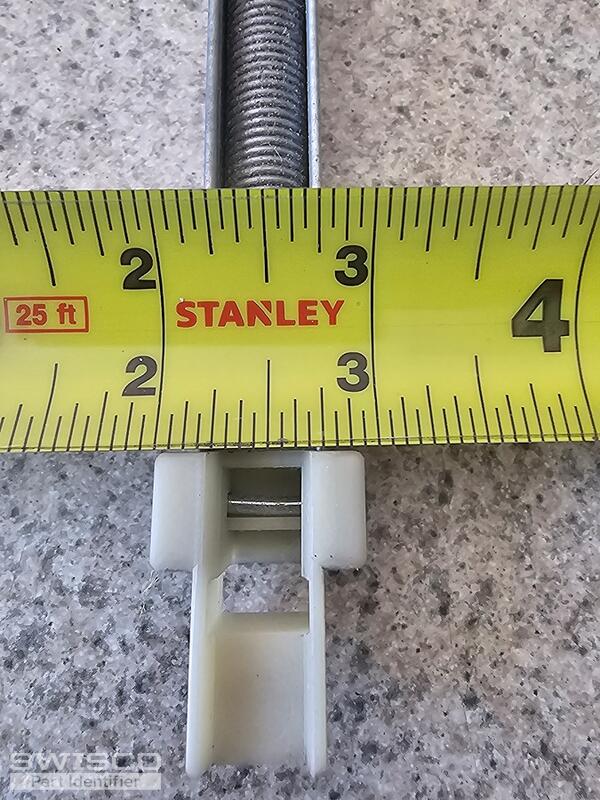

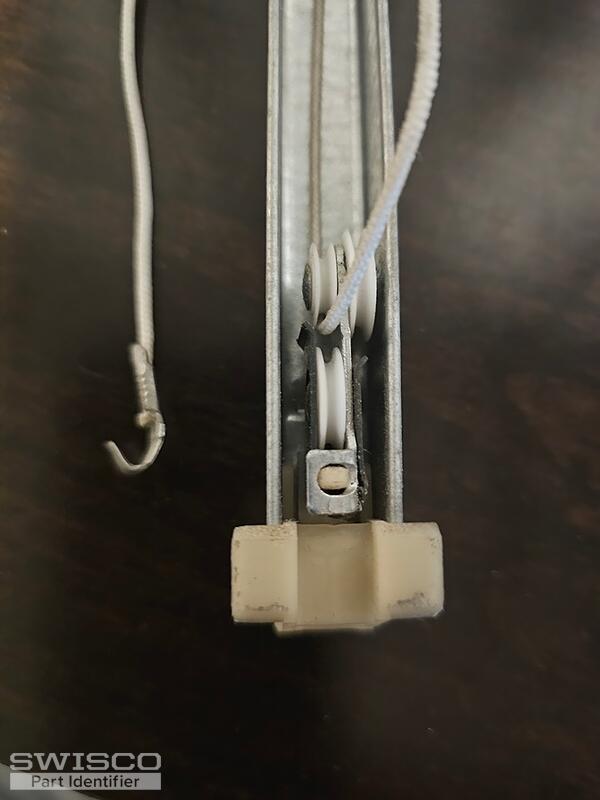

Thanks for the quick reply. I am attaching a picture of the "guts" and width of the bottom nylon shoe.

2 user uploaded images

Bob from SWISCO

Sep 16, 2025 3:37 pm

Thanks, that's perfect. This indeed looks like the S380-14 or S385-14 Channel Balance, depending on the bottom shoe depth. See the diagram below. Measure your old shoe depth to see what matches best. For a stamp option choose 1320.

Comparison of the S378, S380 and S385 balance shoes.
