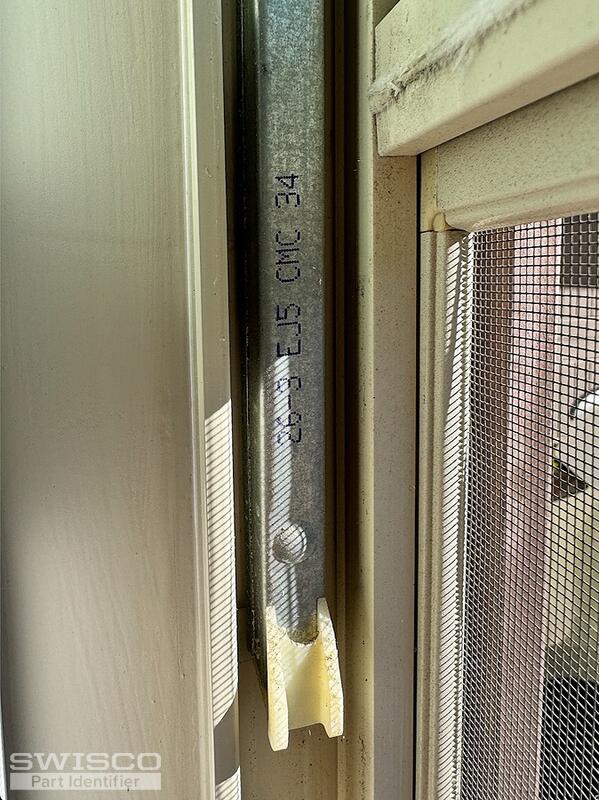

Non-tilt window channel balance part - Stamp as 26-3 EJ5 CMC 34
Home Owner from Irvine
Nov 11, 2024 1:17 pm

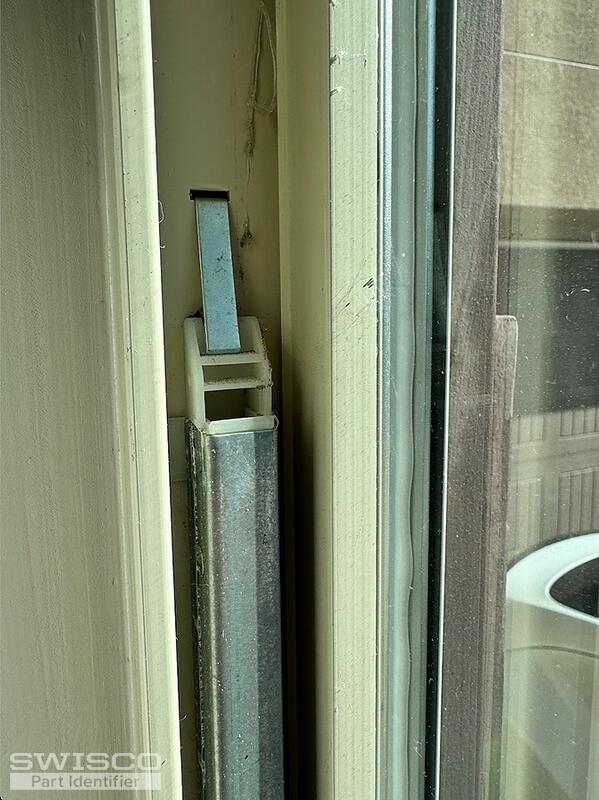

Hi, can you let me know what's the correct replacement part for my window channel balancer
2 user uploaded images
6 Replies
Home Owner from Irvine
Nov 11, 2024 1:45 pm

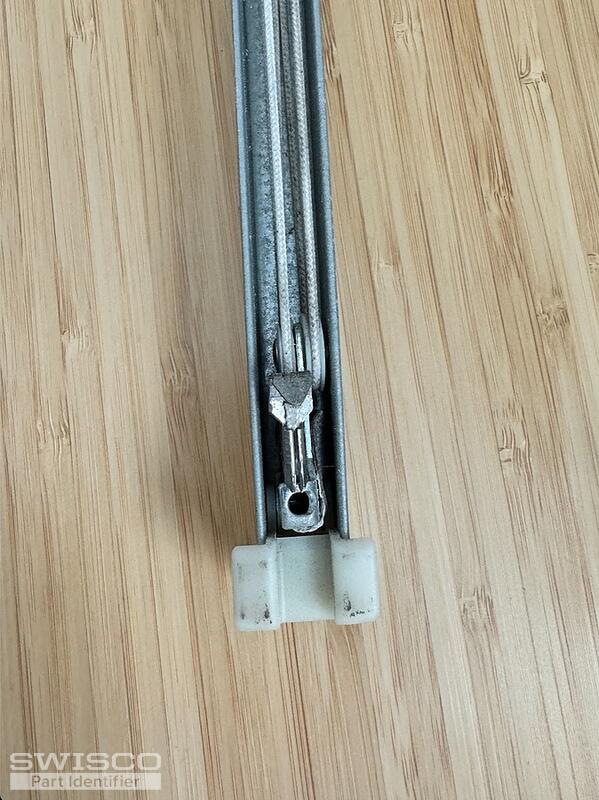

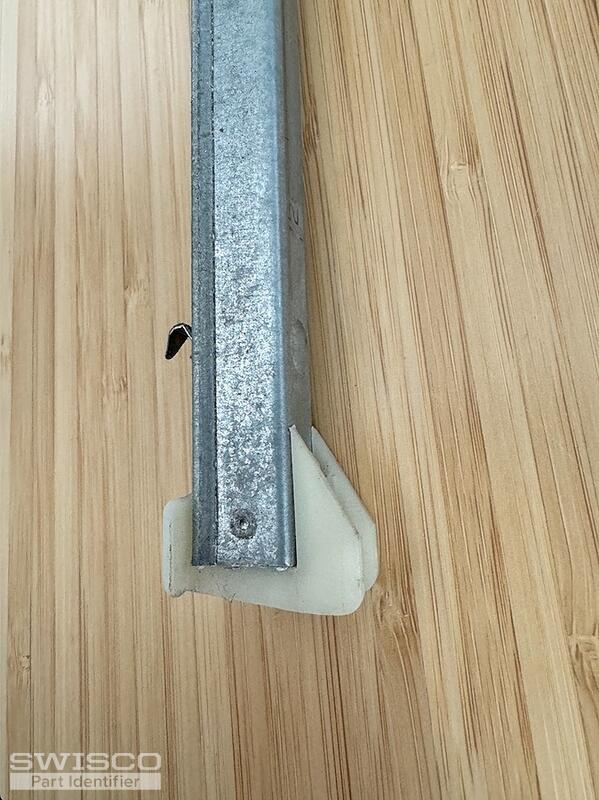

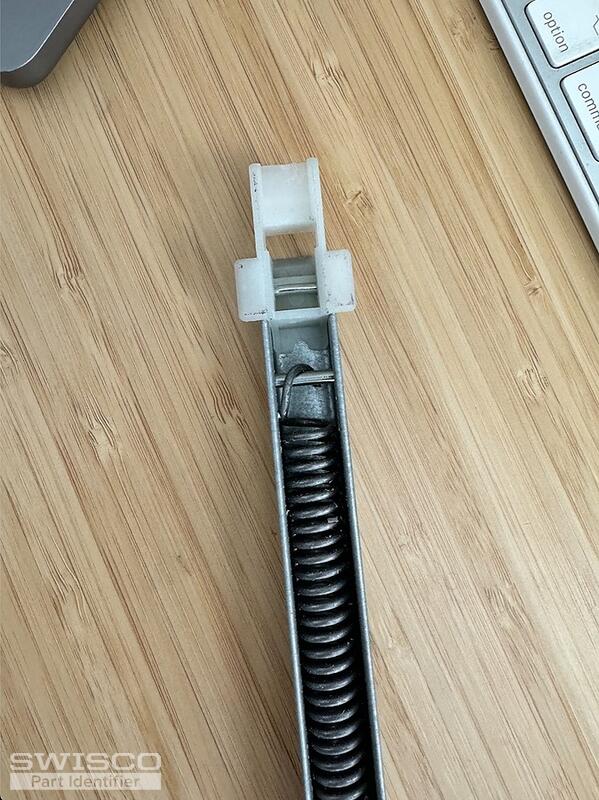

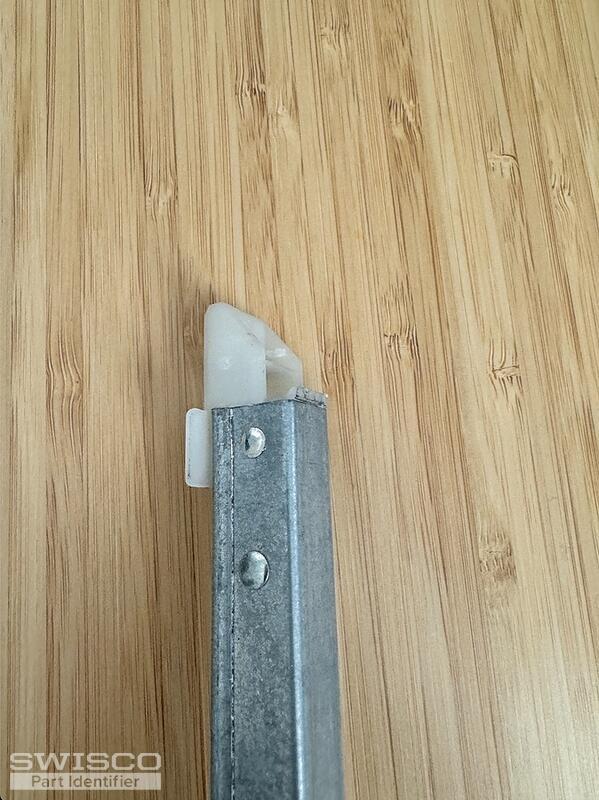

Additional detailed photos attached
5 user uploaded images
Home Owner from Irvine
Nov 11, 2024 1:47 pm

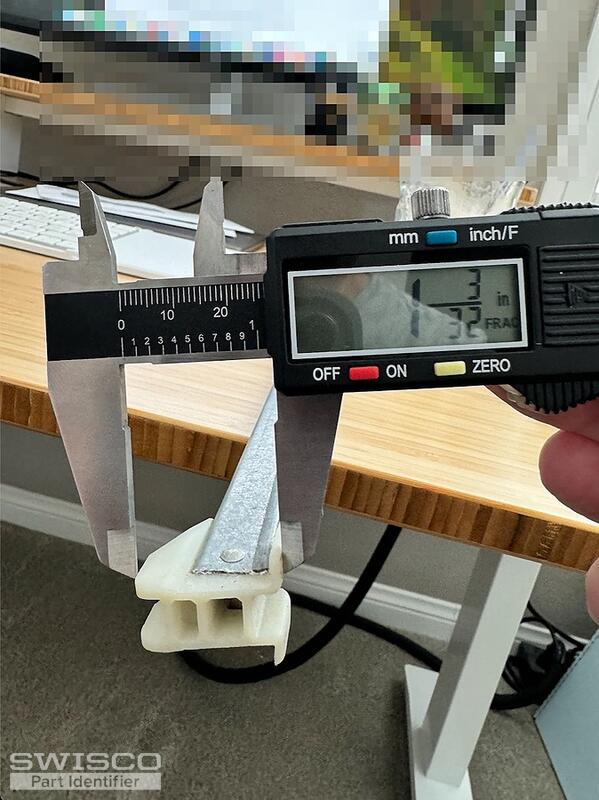

The metal shaft measures L: 27" and W (front face): 0.5"
Emily from SWISCO
Nov 14, 2024 11:39 am
Hi there!
Thank you for reaching out to us. We're happy to help with this. Can you show us a photo of the inside of the balance's metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel. We'll do our best to help from there.
Home Owner from Irvine
Nov 14, 2024 12:12 pm

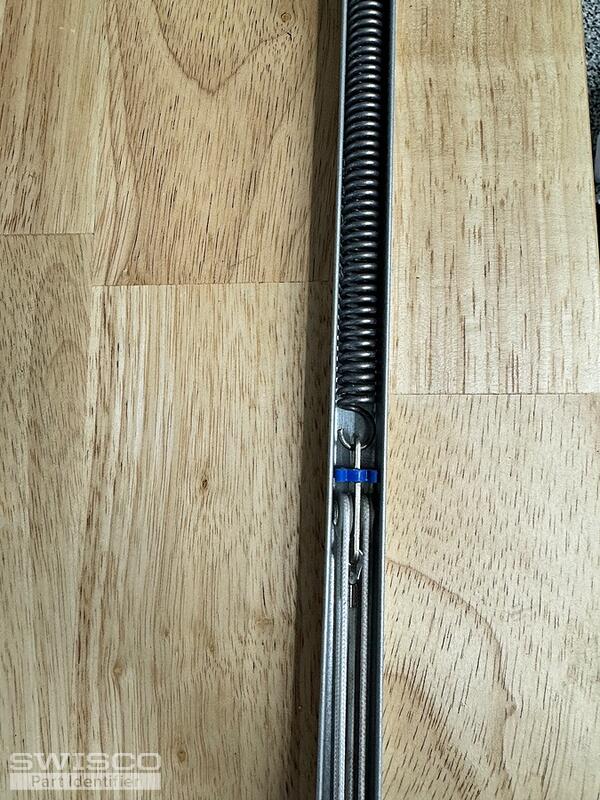

Attached requested photo
1 user uploaded image
Emily from SWISCO
Nov 18, 2024 10:17 am
Thank you for waiting while we looked into this. We can help supply the balances you need but this must be a custom order due to the special blue clip shown in your photo here. With that said, I'm going to email you a purchase link and price quote for (2) of these balances that you can use to place an order on our website.
Please note that the shoe depth will be 1.088" and this would be the best we can offer. Let us know if you have any questions.
