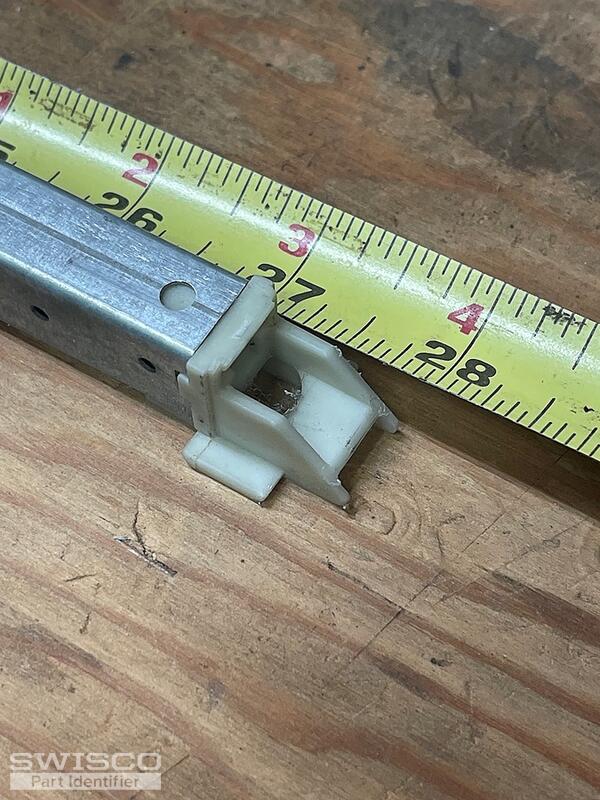

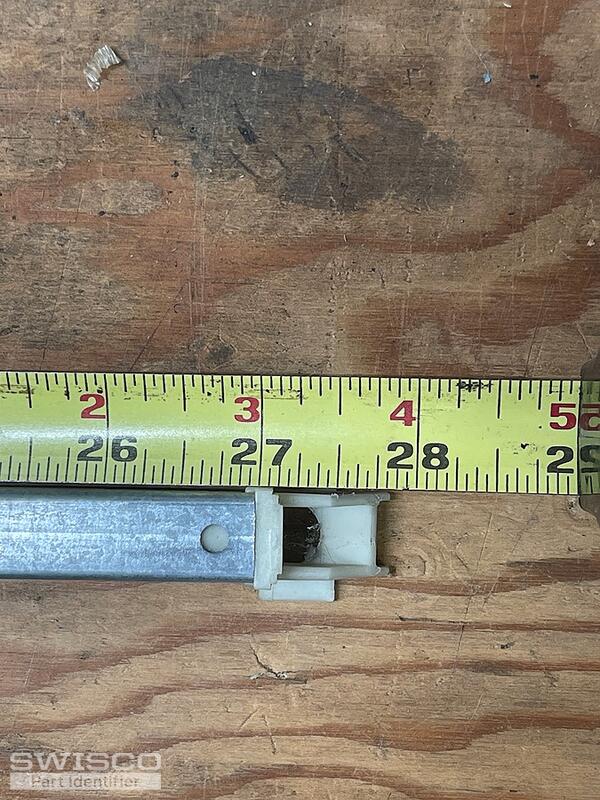

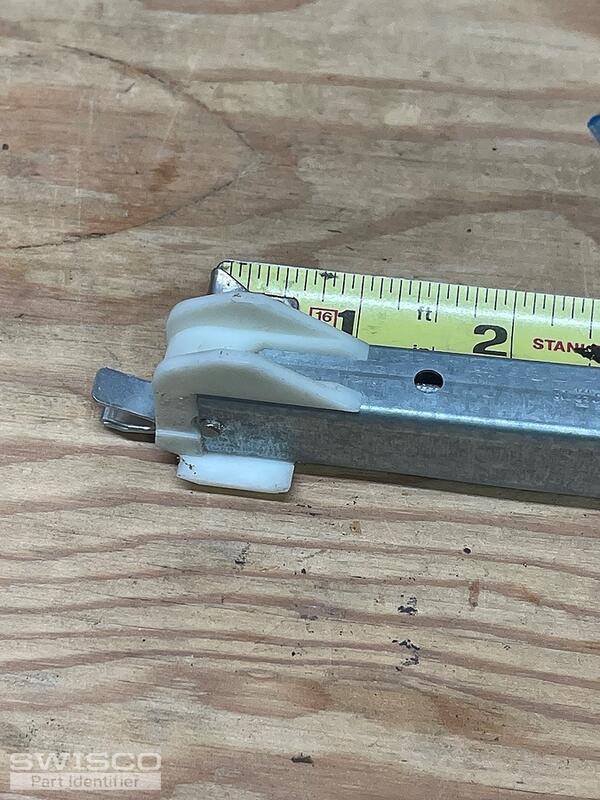

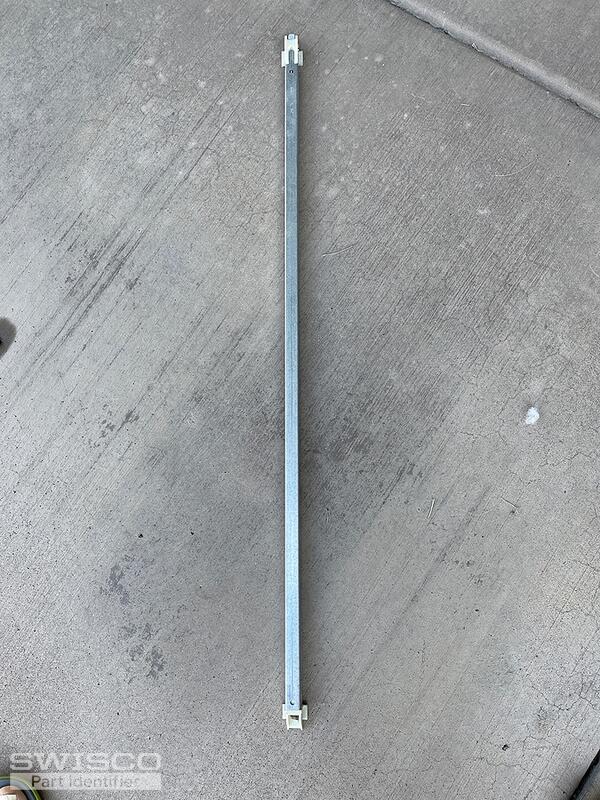

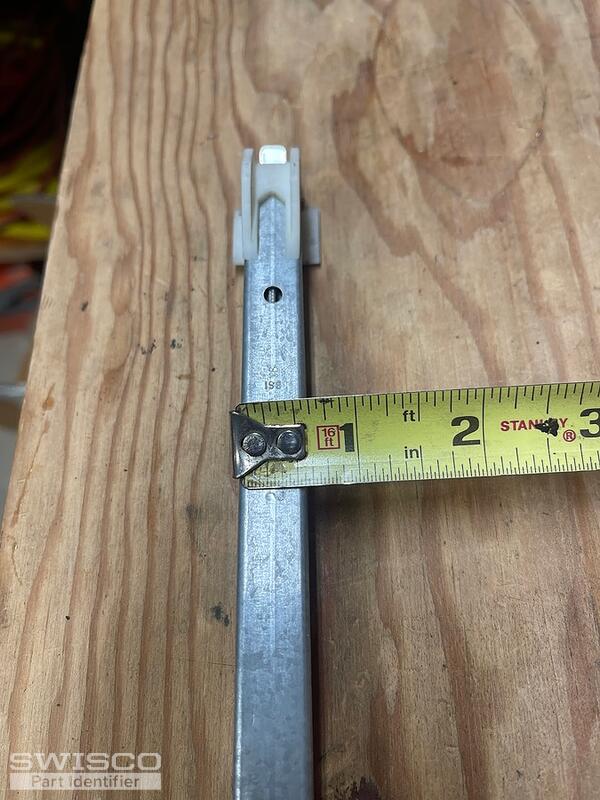

I am looking for new window balances. The width is about one-half inch and the length is about 28 inches as shown in the pictures. Can you please recommend the proper balance.
Thank you.
Mike
Non-tilting single hung windows, cascade brand.
Home Owner from California
Jun 28, 2023 11:55 pm
4 user uploaded images
8 Replies
Tom from SWISCO
Jun 29, 2023 1:52 pm
Hello, Mike. We can supply this balance, but it will have to be a custom order due to its design. What you have here is a special "block and tackle" balance, named for its block and tackle configuration.
Before we go any further, can you first tell me what the stamp on the metal channel reads? It's currently obscured in your photos. Can you also tell me how many you wanted to buy? Finally, please verify the length of the metal channel. It should have a length that ends on a 7/8", like 27-7/8" or 28-7/8".
Home Owner from California
Jul 1, 2023 11:14 am
The length of just the metal channel, not including the plastic ends is 26 - 7/8.
I don't see any stamp anywhere on the metal channel.

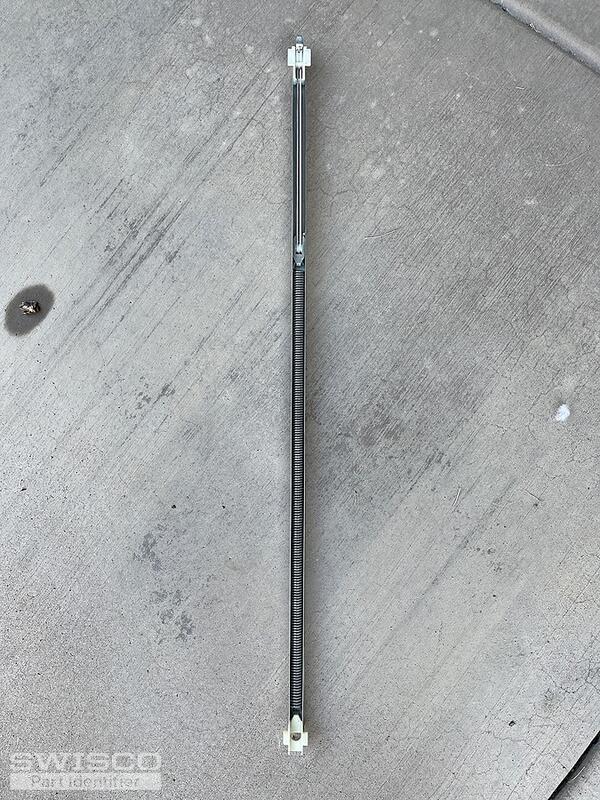

I added a couple more photos, might they help?
I don't see any stamp anywhere on the metal channel.
I added a couple more photos, might they help?
2 user uploaded images
Home Owner from California
Jul 1, 2023 12:04 pm
Ok so I'm starting over because I am now understanding better this process.
I have a total of thirteen windows of which there are two sizes. All single hung and non- tilting. Length of 26-7/8 and width of 1/2 inch.

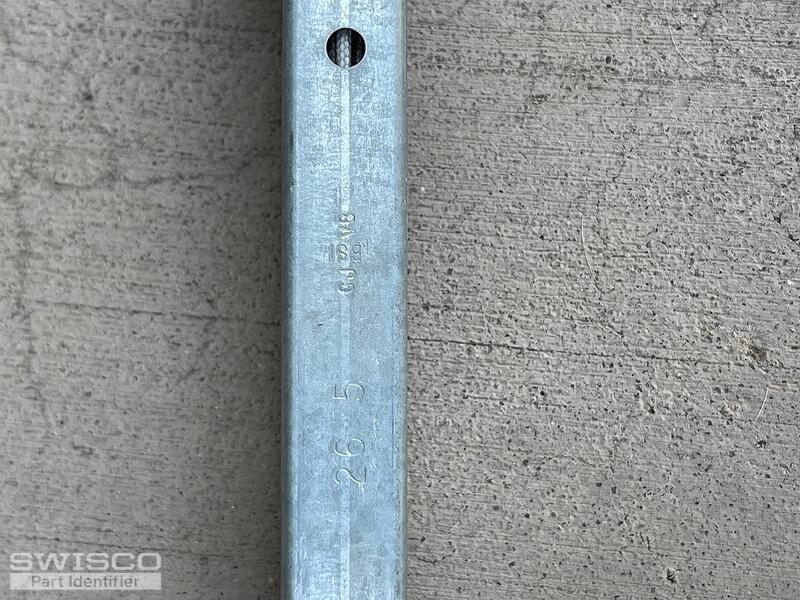

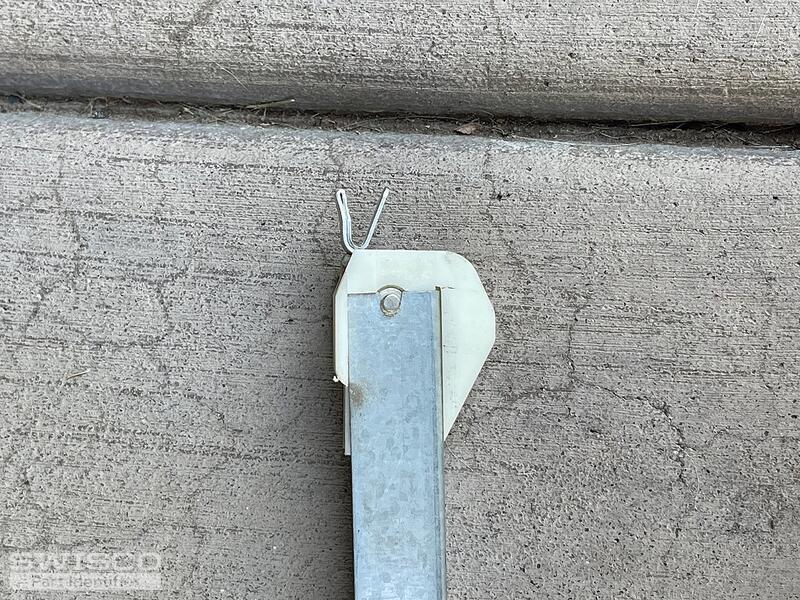

Size #1 of which there are 10 windows: smaller in size with balances with the numbers 26-5 stamped on the channel with a clip type of metal attachment on the end of the cord. (See photos)

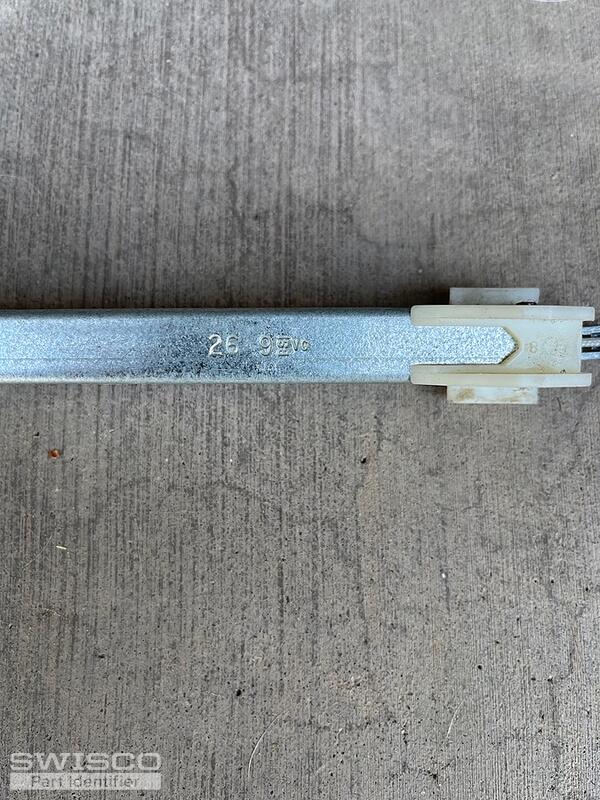

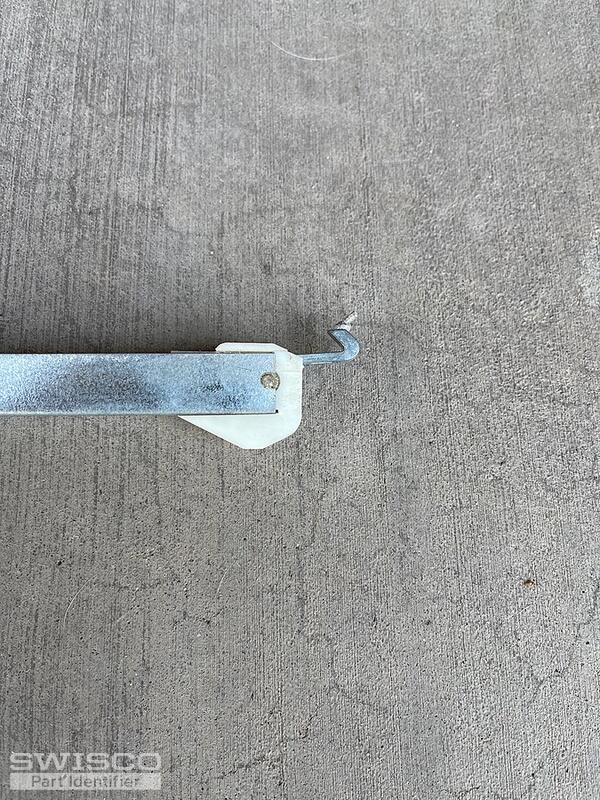

Size#2 of which there are 3 windows: larger in size with the numbers 26-9 stamped on the channel; with a hook style metal attachment in the end of the cord. (See photos)
They all seem to have similar plastic end pieces.
Hope this helps more.
Thanks!
I have a total of thirteen windows of which there are two sizes. All single hung and non- tilting. Length of 26-7/8 and width of 1/2 inch.
Size #1 of which there are 10 windows: smaller in size with balances with the numbers 26-5 stamped on the channel with a clip type of metal attachment on the end of the cord. (See photos)
Size#2 of which there are 3 windows: larger in size with the numbers 26-9 stamped on the channel; with a hook style metal attachment in the end of the cord. (See photos)
They all seem to have similar plastic end pieces.
Hope this helps more.
Thanks!
4 user uploaded images
Tom from SWISCO
Jul 3, 2023 8:49 am
Thank you! This is much clearer. I appreciate you taking the time to get me this info.
I know exactly what these balances are and I am confident that we can get them for you. Please give me a little more time to check on their availability and I'll get back to you ASAP!
Tom from SWISCO
Jul 3, 2023 3:39 pm
Hello again! I'm afraid I've run into a bit of a road block with this 26-9 stamp balance. Before we can move forward with that, I need to give the manufacturer the weight of the sash that these balances will be supporting. Would that be information you can get for me? If so, please make sure that the weight is as precise as possible, down to the ounce. We can then get the ball rolling again.
Home Owner from California
Jul 6, 2023 12:34 am
Greetings,
That sash weighs 28.6 lbs. or 457.6 ounces.
Hope that helps.
Thank you.
That sash weighs 28.6 lbs. or 457.6 ounces.
Hope that helps.
Thank you.
Tom from SWISCO
Jul 10, 2023 1:30 pm
Thank you! That's a huge help. What I'll do now is email you a purchase link and price quote that will let you add these two sizes to your cart. You can then checkout as normal.
Please let me know if you had any other questions and I'd be happy to advise.
