Hello,

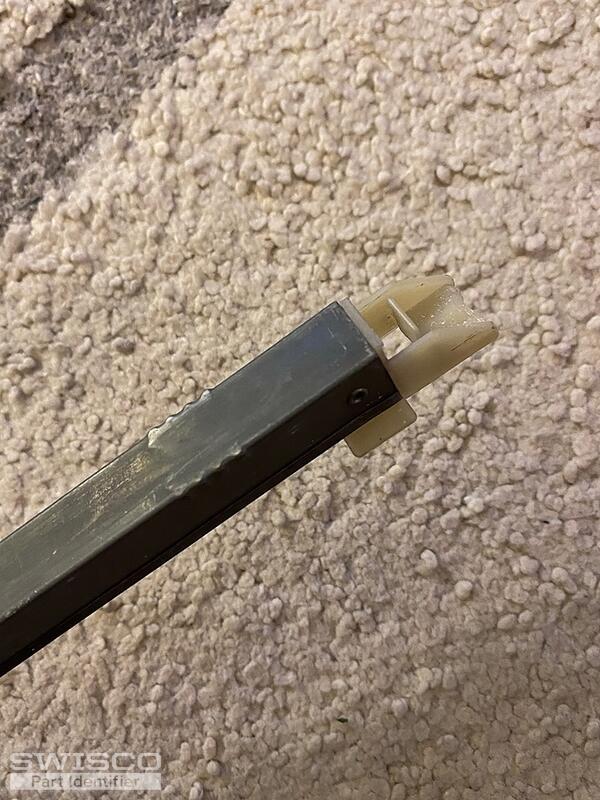

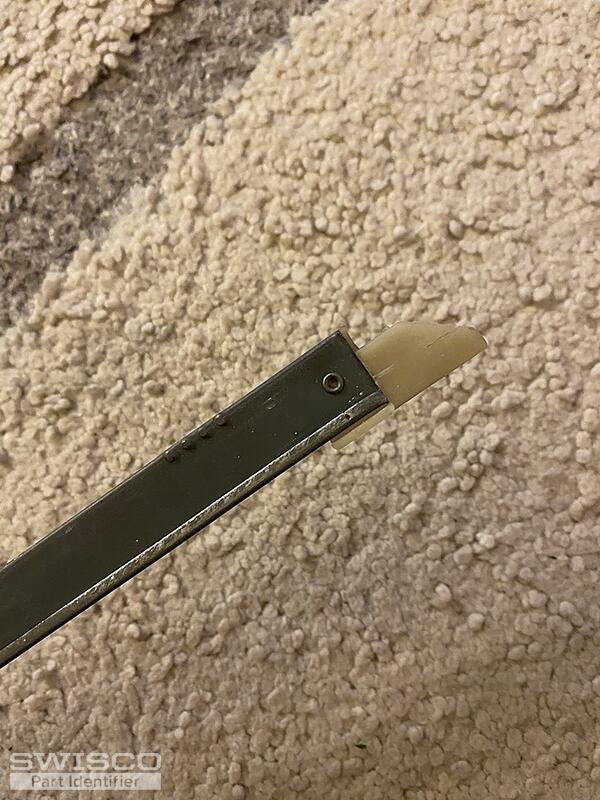

I'm looking for this parts.
Nontill window
Quick Learner from 20176
Nov 14, 2021 6:21 pm
5 user uploaded images
2 Replies
Emily from SWISCO
Nov 17, 2021 12:56 pm
Hi there!
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. When determining length, only measure the metal channel and be sure to not include the plastic attachments in this measurement. You'll also need to refer to the stamp on your metal channel in order to select the appropriate stamp option.
If you have any questions just let us know!
Comparison of the S378, S380 and S385 balance shoes.
