Nu Air Windows

Question

Hello,

I have 7 Nu Air windows, all with the same ~60.5" height, four with a 51" width, two with a 35.5" width and one with a 34.5". They pretty much all have an issue with the locks not being able to close cleanly or not at all. The wider windows have two locks and only one will lock on each.

I took pictures of one of the 51" wide windows showing the bottom sash removed from the frame and of the bottom right channel balance. The string on the bottom right channel balance was broken when I took the sash out, which is probably why it won't stay open on its own. The top left channel balance string looked fine.

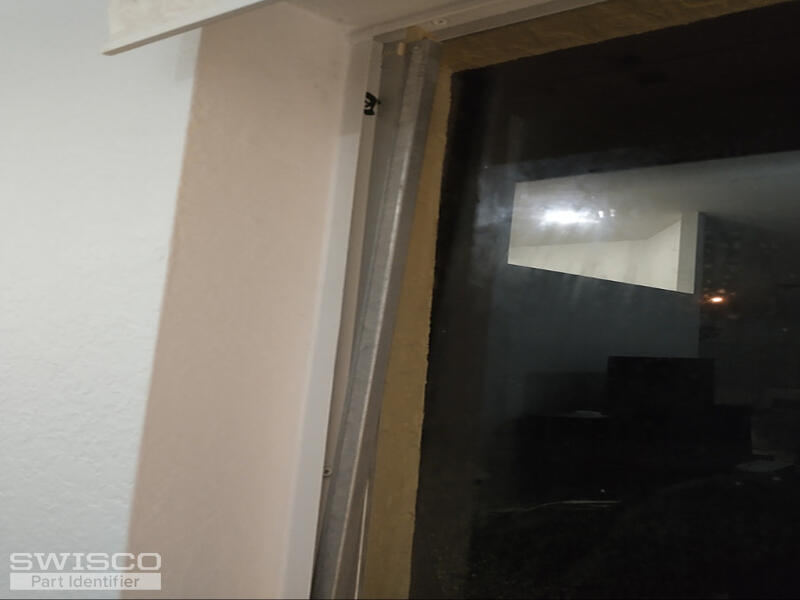

The picture of the top channel balance inside the frame hangs out quite a bit when the sash is installed and when the top plastic holder isn't holding it in, should it hang out that much?

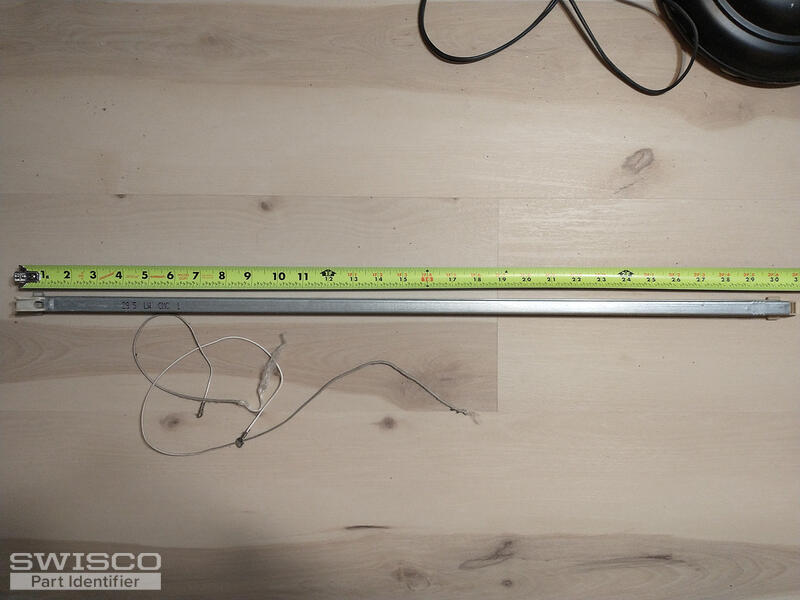

The channel balance width is a little over 1/2". The two pictures of the top and bottom right side of the sash are identical to the left side. There is a marking on the channel balance that says "29 5 LW CMC 1". The length of the balance is about 31" including the plastic pieces.

I hope this is enough information for you to assist me in getting the parts I need to get my windows working properly so they lock and are sealed. If you need anything else, please let me know and I look forward to hearing from you.

Thank you,
Steven

Bob · Accepted Answer

Hi Steven. Do the windows struggle to open or stay opened? If so you almost certainly need new channel balances. If it's just an issue of the locks not latching to their keepers though it may be a different issue, such as the window not being level, in which case you may need to hire a pro for assistance. Just keep that in mind.

If you did need to replace the balances, you have either our S380-30 or S385-30. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. For a stamp choose 2950.

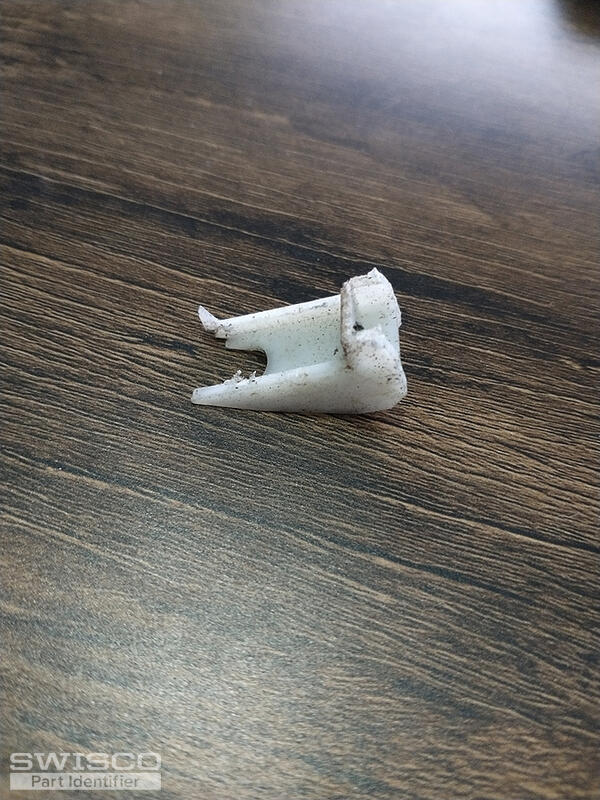

For the Top Sash Guides, see id the 18-178 pair matches what you need.

Comparison of the S378, S380 and S385 balance shoes.
