Nuair Non-tilting Window parts

A handy person from North Fort Myers, FL says:
I need top sash guides and channel window balancers (30 inches long) for my Nuair non-tilting double hung windows.
Thank you.
Thumbnail of the uploaded file named Window 1.jpg
Thumbnail of the uploaded file named Windows 3.jpg
Thumbnail of the uploaded file named Windows 4.jpg

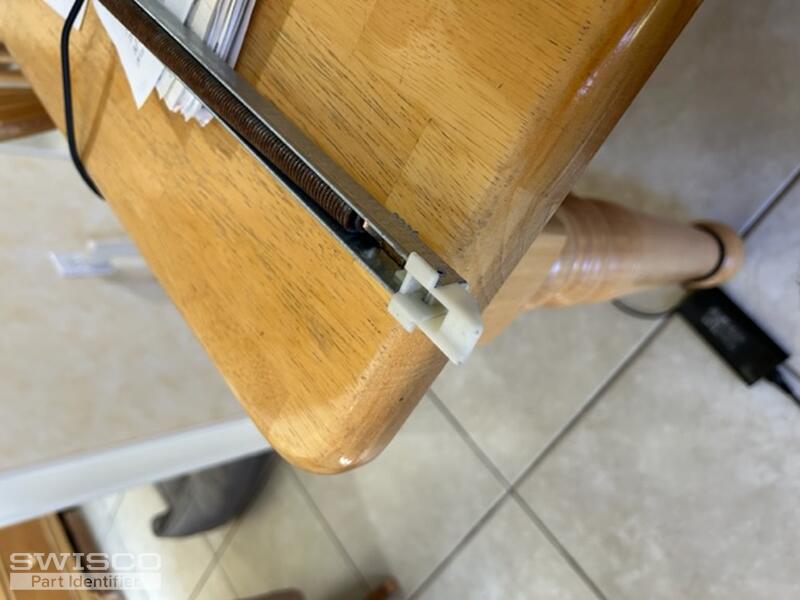

Thumbnail of the uploaded file named Windows 5.jpg

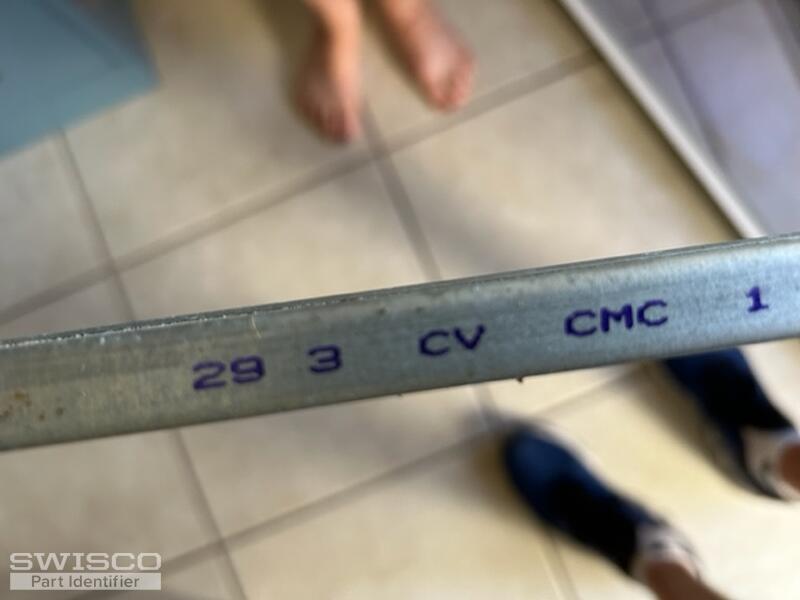

Thumbnail of the uploaded file named Windows 6.jpg
A handy person from North Fort Myers, FL says:
Thumbnail of the uploaded file named Window 0.jpg
A handy person from North Fort Myers, FL says:
Please tell me what parts I need for my Nuair double hung non tilting window. If you need additional information, please let me know.
Thank you.
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either the S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 2930 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

As for your top sash guide, I don't recognize it at first glance but we would be happy to look into this for you. To get started, we'll need to see additional photos of your guide removed from the sash and from multiple angles, along with written-out dimensions, to compare to our inventory. Thank you!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

A handy person from North Fort Myers, FL says:
Please let me know which sash guides I need? It looks like 18-178-am I correct?
Thank you

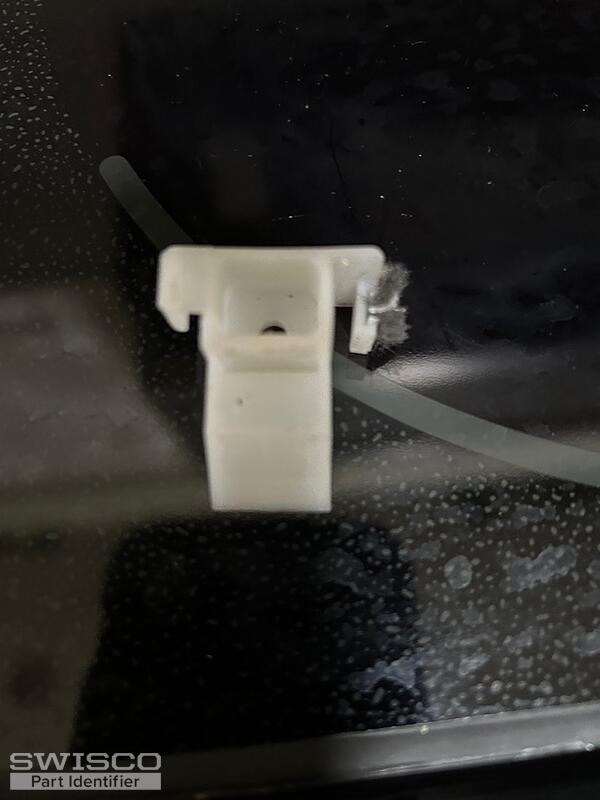

Thumbnail of the uploaded file named sash 1.jpg
Thumbnail of the uploaded file named sash2.jpg

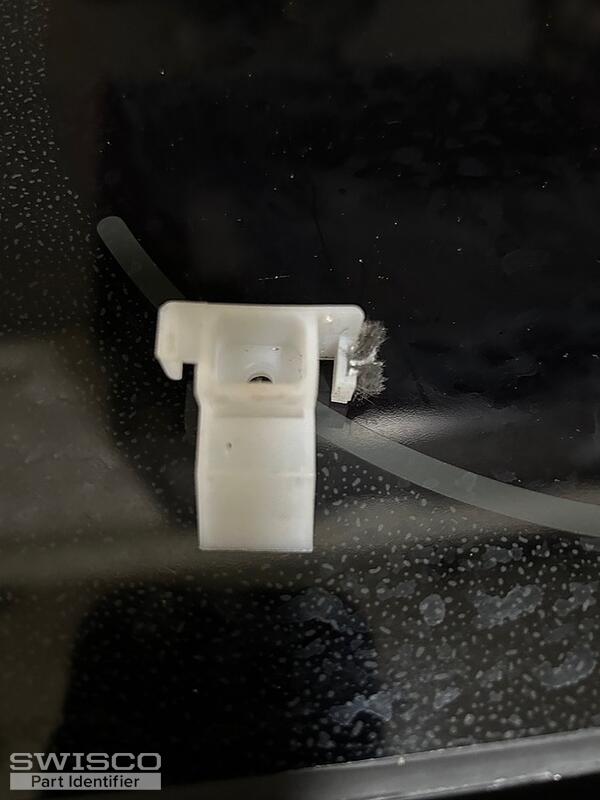

Thumbnail of the uploaded file named sash3.jpg
Profile picture of Casey
Casey from SWISCO responded:

I agree that as long as the dimensions below match up to yours, your top sash guide does look like a match to the 18-178 guide pair.

Alternate view of 18-178
Alternate view of 18-178

Alternate image for 18-178
Alternate image for 18-178
