Nuair window channel balance 1110 non-tilting.

Home Owner from Inverness Fl
The channel is 11 15/16 inches long 1/2 wide and 5/8 deep. The number printed on it is 1110.

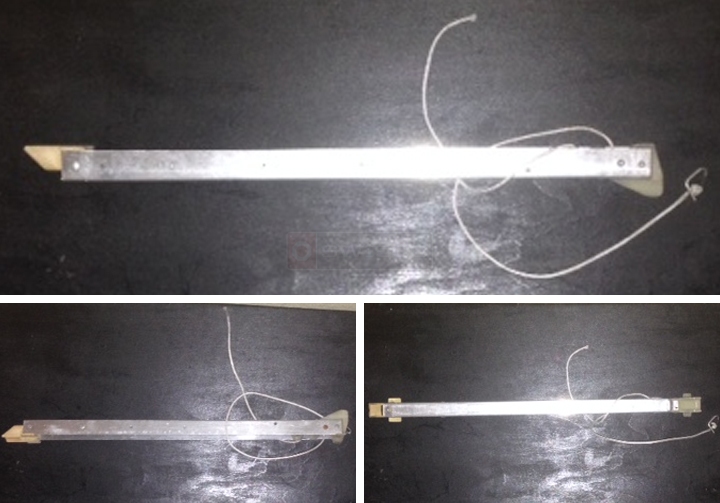

User submitted photos of a window balance.
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Hey, thanks for posting. This balance will have to be custom made, since it's so small. However, before we can begin, we will have to determine what Series you have.

I've narrowed this down to two possible channel balance Series: either our Series 380 or our Series 385.

Now, as you can see, the only difference between these two Series is their bottom shoe. The Series 380 uses the 15-005 while the Series 385 uses the 15-004. I can't quite tell what you have based on your pictures, though. Please carefully compare their dimensions to your own hardware and see which is a better match.
Comparison of 15-004 and 15-005
Comparison of 15-004 and 15-005
