Nuprime

Home Owner from Destrehan, Louisiana

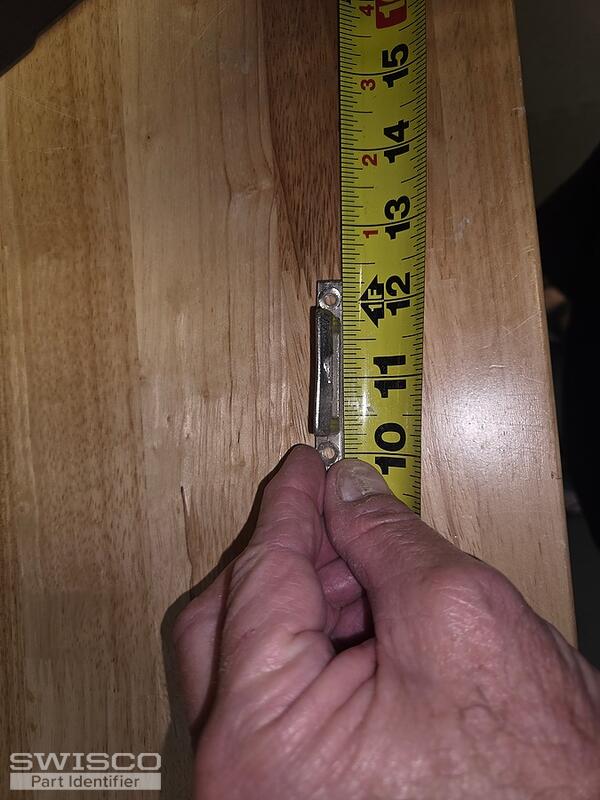

The parts I'm in need of are the Nuprime Season-All Patent Nos. 3,449,862 D 209.812 -D 213.676 Latch and the Keeper which has no labeling. The keeper has two screws located 2-1/16" center to center. The tab on the keeper has sheared off.
4 user uploaded images
6 Replies
Paul
Paul from SWISCO
SWISCO
Expert

Hello,

The sash lock resembles our 90-042. As for the keeper, I am afraid we do not recognize it off-hand. If you could write out the exact distance between the center of the screw holes, as well as the height of the keeper, that would help us determine if a possible replacement is available. Thank you!

Detail of 90-042
Detail of 90-042

Side view of 90-042
Side view of 90-042

Home Owner from Destrehan, Louisiana
The keeper is 3/4" overall height. The two mounting holes are 2-1/16" ctr to ctr.
Thank you
Paul
Paul from SWISCO
SWISCO
Expert

Great. We'll start researching this and we'll follow up with you early next week to confirm if we are able to locate a possible match.

Home Owner from Destrehan, Louisiana
Thank you
Paul
Paul from SWISCO
SWISCO
Expert

Unfortunately, we were unable to find your exact keeper. We offer the 90-112 keeper that is 3/4" high, with installation holes 2" apart, but the holes may be adjusted to work for 2-1/16". The thickness of the keeper is 7/16". We also have Keeper shims, 90-058, with 2-1/16" screw holes. Take a look and see if you might be able to adapt something like this to work for your repair.

Alternate image for 90-112
Alternate image for 90-112

Dimensions for 90-058
Dimensions for 90-058
