Please identify these for me. Thanks!
Greg
Nylon parts
Quick Learner from Athens Al
Jul 9, 2025 2:32 pm
2 user uploaded images
4 Replies
Casey from SWISCO
Jul 14, 2025 2:05 pm
Hello,
We'd be happy to look into this for you, but we'd need to see photos of your corner pivot and an undamaged slide latch removed from the screen frame to compare to our inventory. Thank you!
Quick Learner from Athens Al
Jul 14, 2025 7:59 pm
Hi Casey,

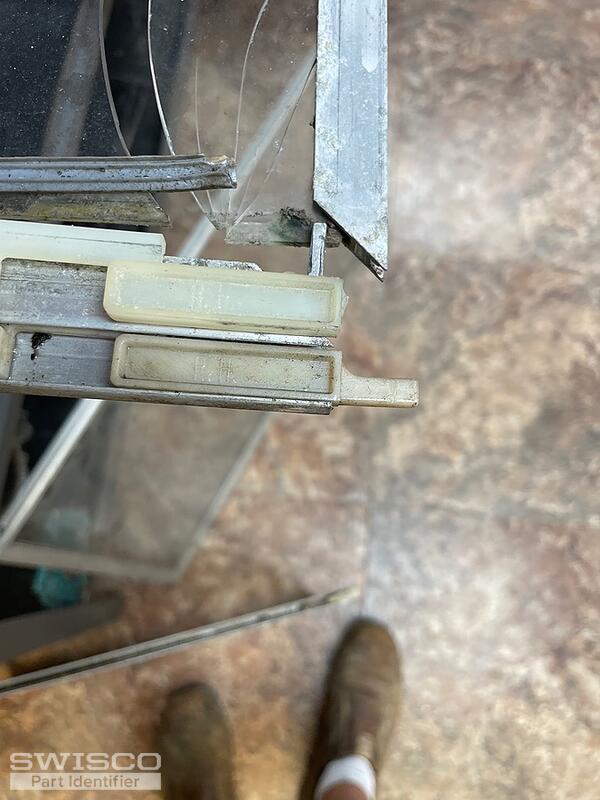

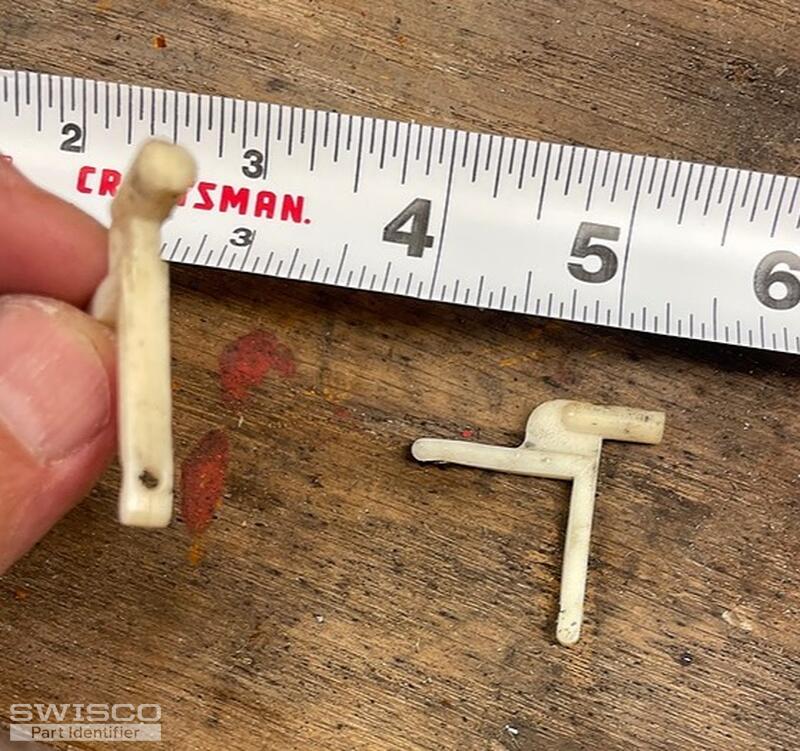

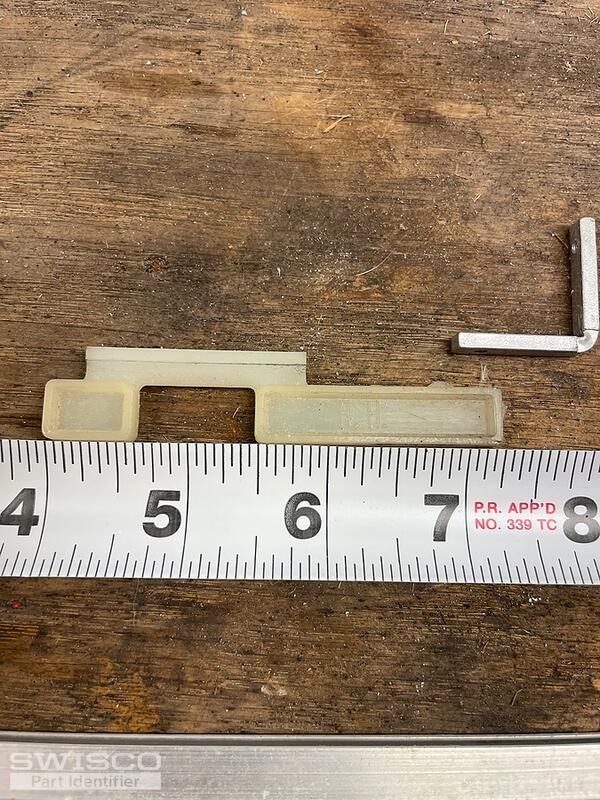

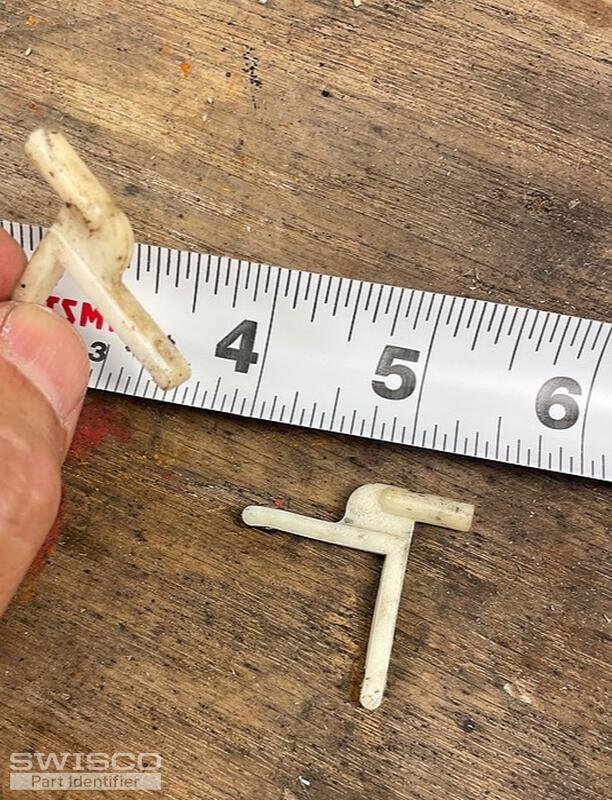

here are some additional pics. I couldn't get the undamaged slide out because of a stripped screw. But I got a broken one out and a picture of the undamaged one next to it. Please help!
here are some additional pics. I couldn't get the undamaged slide out because of a stripped screw. But I got a broken one out and a picture of the undamaged one next to it. Please help!
5 user uploaded images
Dave Sr. from SWISCO
Jul 16, 2025 9:31 am
We did carry latches and tilt corners similar to yours at one time, but unfortunately, they were discontinued and are no longer available. We suggest using the 91-006 metal latches as a replacement.
Dimensions for 91-006
As for the top tilts, take a look at the three tilt corners related on this page, with leg dimensions of 3/16" X 3/16". You would need to file the height of the corner leg and drill a hole to install them in your storm sash. You could also check with hardware stores or glass shops in your area that repair storm sashes to see if they still have these parts on hand.
