OP05-7524-26

A quick learner from Oakland, CA says:
May 27, 2022
Hello! This is a pretty awesome service, thank you.

Please help with finding a replacement part for this arm operator: OP05-7524-26

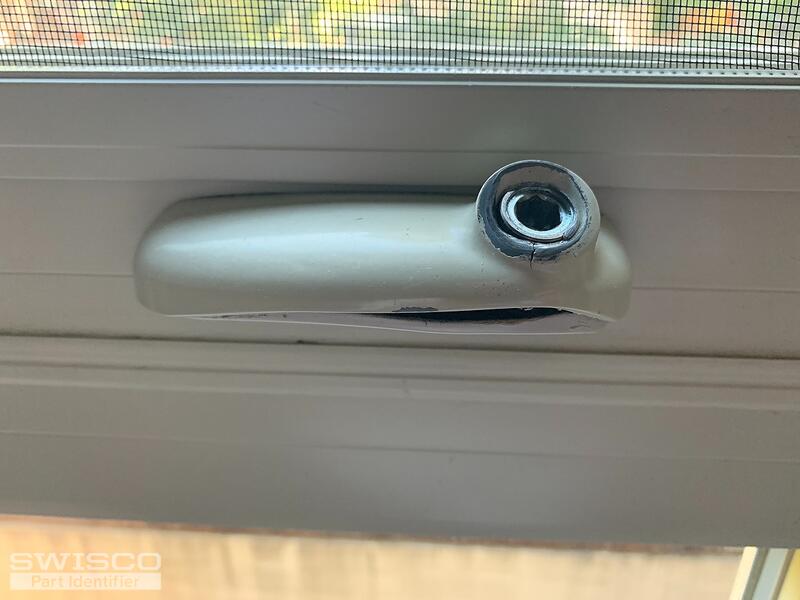

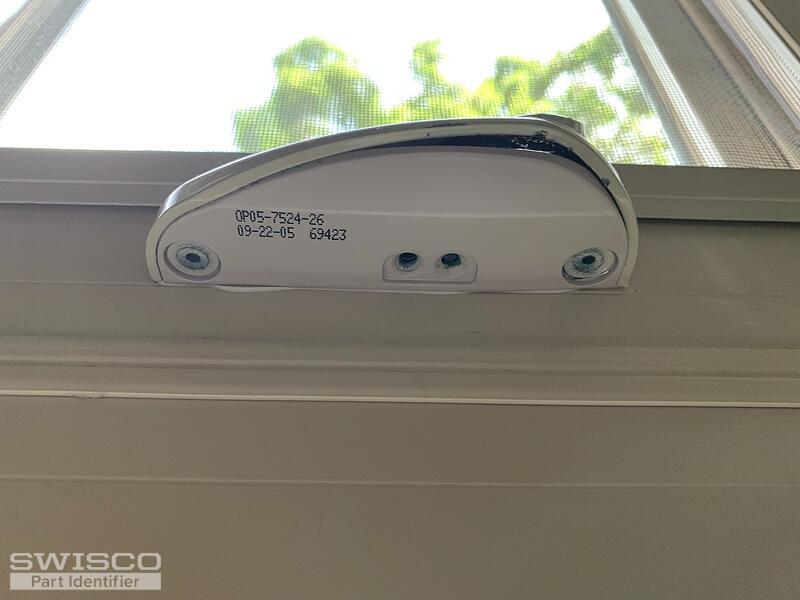

Thumbnail of the uploaded file named IMG_7154.jpg
Thumbnail of the uploaded file named image_6487327.JPG
Profile picture of Tom
Tom from SWISCO responded:
June 1, 2022

I think we can help with this operator, but your photos currently only show the base, which is a design shared by multiple different products. In order to make a recommendation, I will need to see the complete assembly removed from the window. That way we can be sure that no important details are obscured.

Please let me know if that would be possible.
A quick learner from Oakland, CA says:
June 1, 2022

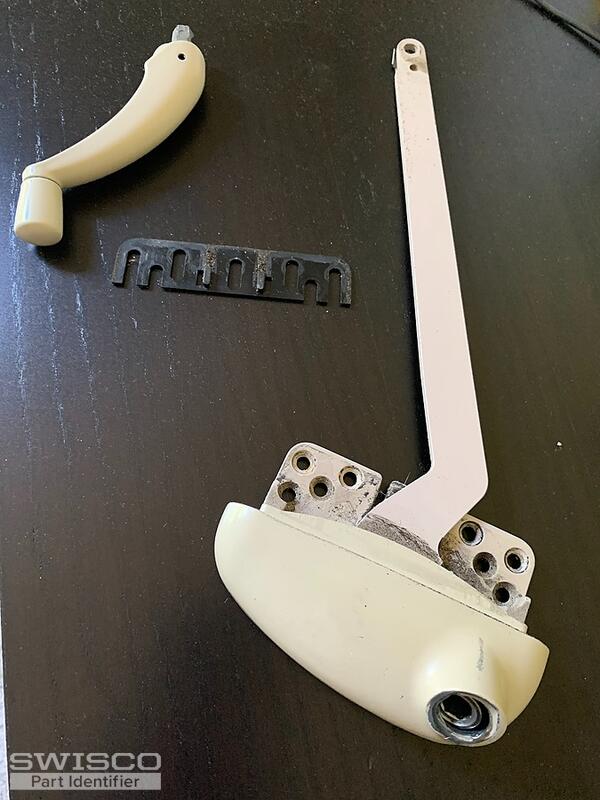

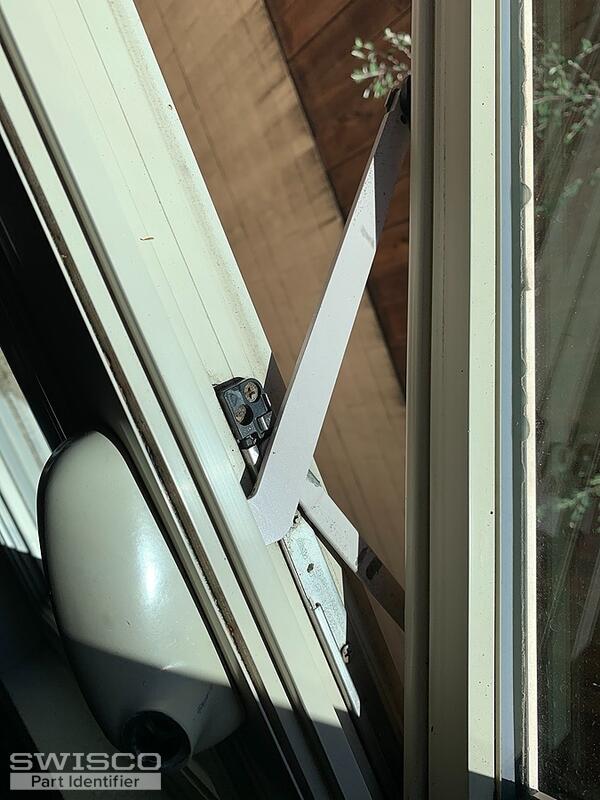

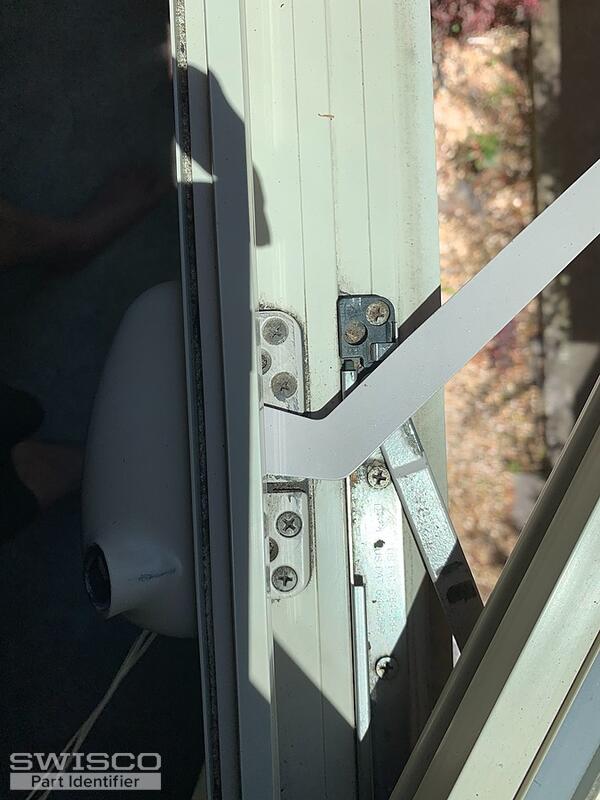

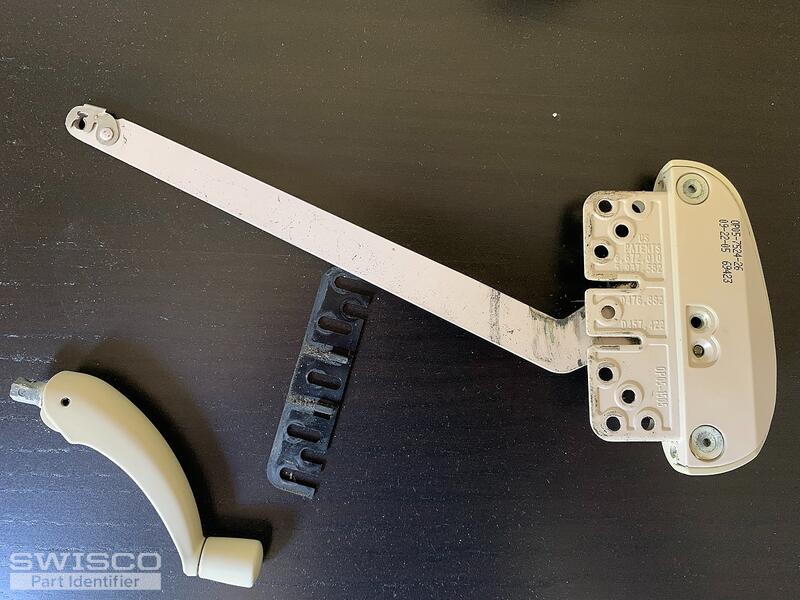

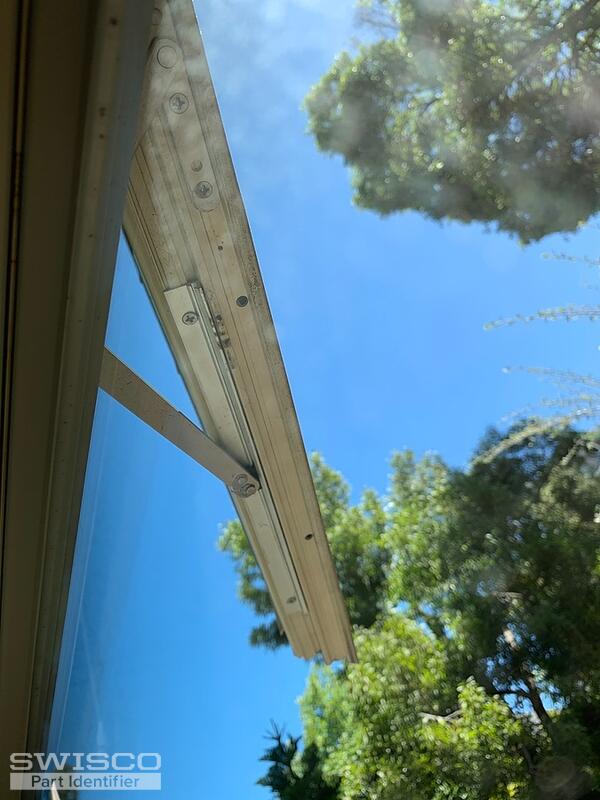

Do these images help?
Thumbnail of the uploaded file named IMG_7164.jpg
Thumbnail of the uploaded file named IMG_7165.jpg
Thumbnail of the uploaded file named IMG_7166.jpg
Thumbnail of the uploaded file named IMG_7167.jpg
Thumbnail of the uploaded file named IMG_7169.jpg
Profile picture of Casey
Casey from SWISCO responded:
June 2, 2022

Hello,

Tom is out of the office today but I'd be happy to help. Take a look at the 39-429 and 39-434 Roto operators, depending on the length of the arm that attaches to the sash. Both of these options are compatible with the 39-232 folding handle. Thanks for posting!
A quick learner from Oakland, CA says:
June 3, 2022
Thanks, Casey! I will need the 9.5" arm. Any idea on lead time?

Also which crank handle color matches the operator, white or almond?
Profile picture of Casey
Casey from SWISCO responded:
June 3, 2022

Great! Unfortunately, we do not have a confirmed ETA for the 39-429 at this time but if you sign up to be auto-notified on the product page, you'll receive an email as soon as they're back in stock.

Also, the operator covers are white so you can purchase the white handle to go with them.
Roto Single Arm Operator, 9-1/2"
Roto Single Arm Operator, 9-1/2"
39-429
$28.90
Roto Single Arm Operator, 7-1/2"
Roto Single Arm Operator, 7-1/2"
39-434
$21.70
Roto Folding Crank Handle, 11/32"
Roto Folding Crank Handle, 11/32"
39-232
$10.80
