Old Metal Closet Door - Strato Fold Door

A home owner from Arlington Heights, IL says:
October 12, 2020

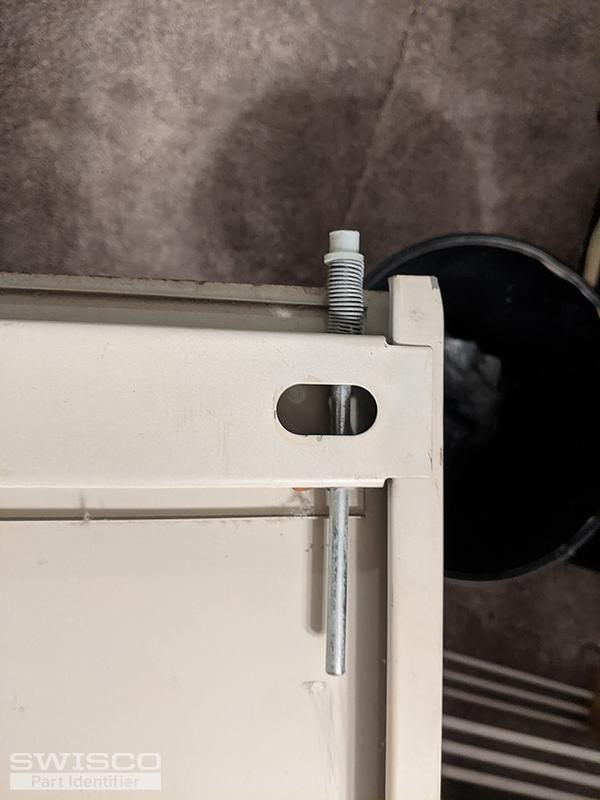

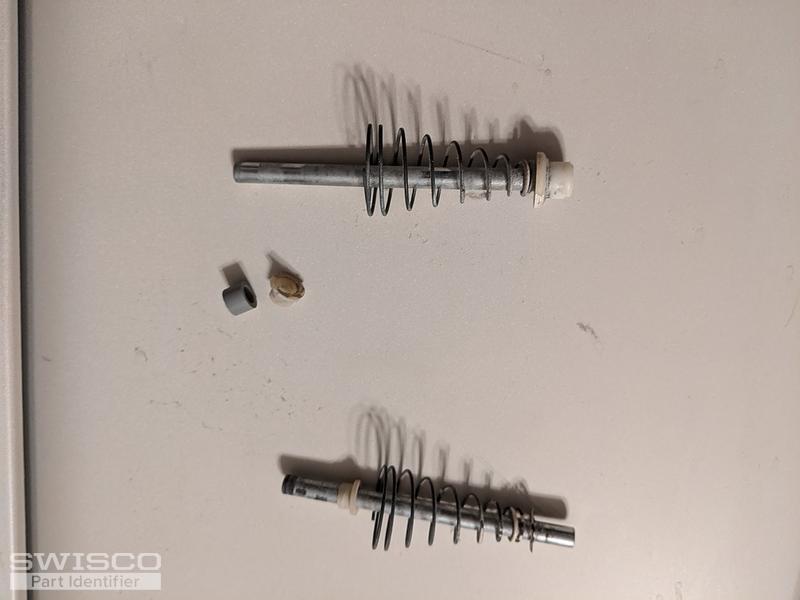

I am renovating my place and decided to spray paint my old closet doors, unfortunately once I removed the doors the top pivots came off and the little plastic plugs are no longer keep them from springing out. I will need to order new top pivots and bottom pivots along with additional stationary pivots.
Thumbnail of the uploaded file named PXL_20201013_004838545.jpg
Thumbnail of the uploaded file named PXL_20201013_005105056.jpg
Thumbnail of the uploaded file named PXL_20201013_005123647.jpg
Thumbnail of the uploaded file named PXL_20201013_005127138.jpg
Thumbnail of the uploaded file named PXL_20201013_005201684.jpg
Profile picture of Bob
Bob from SWISCO responded:
October 15, 2020

Strato-fold was a division of Peachtree closet doors. I don't believe that these are around anymore, but we carry the newer replacement styles. See our 21-030 bottom pivot adjusting threaded pin, the 21-029 top spring loaded pivot pin and our 21-028 top and bottom spring loaded guide pins. See if these match what you need.
A home owner from Arlington Heights, IL says:
October 15, 2020
These are the ones I previously ordered however my doors do not have a square hole in order to clip these pivots to the door. Are there any other options.
Profile picture of Paul
Paul from SWISCO responded:
October 15, 2020

Perhaps I can help. I went through your photos, and based on what you show I have a few suggestions. Please review:
Bifold Door Pivot, Cromwell
Bifold Door Pivot, Cromwell
21-003
$4.07
Plain Pin, 1/4" x 5-3/4"
Plain Pin, 1/4" x 5-3/4"
21-026B
$1.54
Bifold Door Top Pivot and Guide Pin
Bifold Door Top Pivot and Guide Pin
21-091
$5.95
1/4" Nylinder
1/4" Nylinder
21-150
$0.39
1/4" Push Nut
1/4" Push Nut
21-155
$0.28
Bifold Door Top Pivot and Guide Pin, Benchmark
Bifold Door Top Pivot and Guide Pin, Benchmark
21-042
$4.10
Bifold Door Top Pivot and Guide Pin, Peachtree
Bifold Door Top Pivot and Guide Pin, Peachtree
21-071
$5.10
5/16" Nylinder
5/16" Nylinder
21-151
$0.39
Floating Grommet, Float-A-Way
Floating Grommet, Float-A-Way
21-152
$1.05
Bi-fold Door Repairs
Bi-fold Door Repairs
GUIDE
READ >
