Old Milgard Window Glazing Beads

Home Owner from California
Hi!

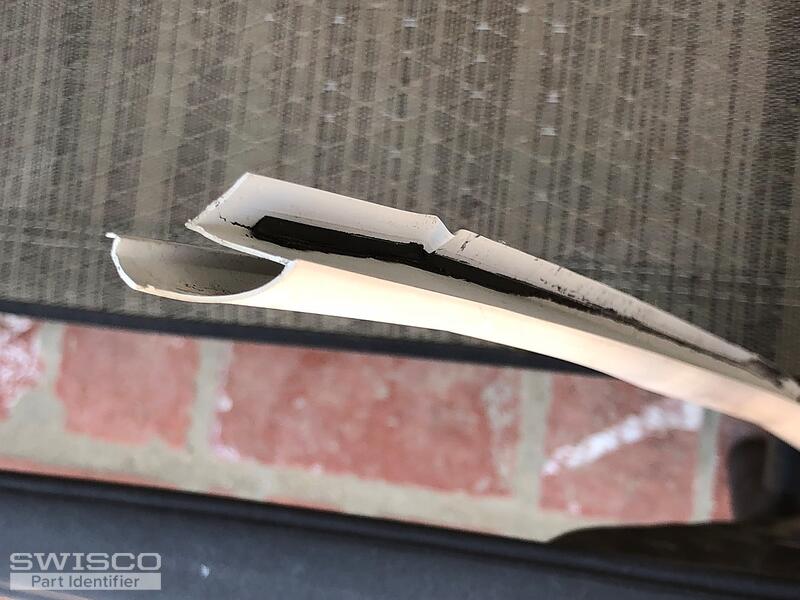

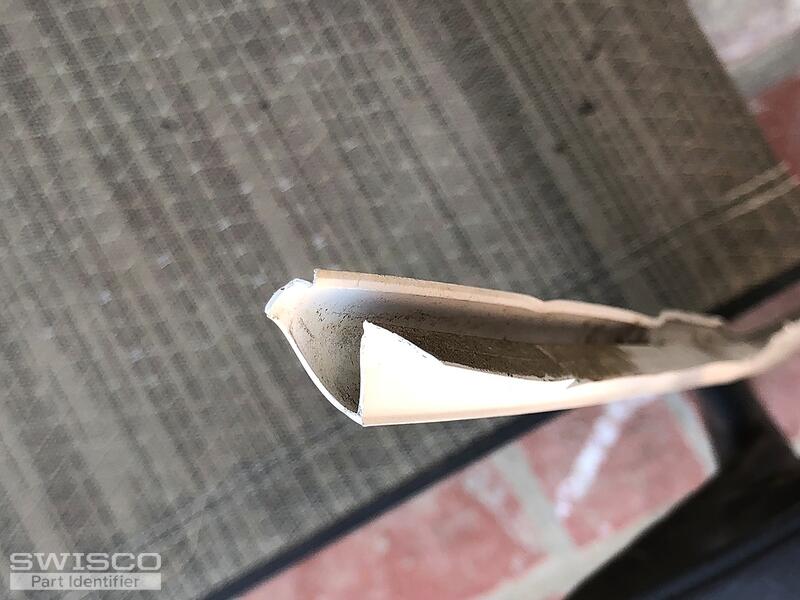

I'm not able to find these glazing beads for my old aluminum Milgard sliding windows. The size of the panel where the glazing goes is 35.5 x 30 inches. The length of the longer glazing bead is 33.5 inches after being cut diagonally.
Please advise.
Thank you,
Brar
2 user uploaded images
3 Replies
Paul
Paul from SWISCO
SWISCO
Expert

Your glazing bead is showing some similarities to our 55-195. The difference seems to be the back leg that goes behind the glass. Ours measures in 7/16", so you may have to trim it.

Home Owner from California
Thank you! I have ordered them. Hopefully, they will work.
