Old Window Parts

A handy person from USA says:

February 9, 2021

I manage a building that has old tilt windows. I'm trying to find pivot shoes and some bars. I attached pictures below. Doesn't have to be the same, something similar that can work.

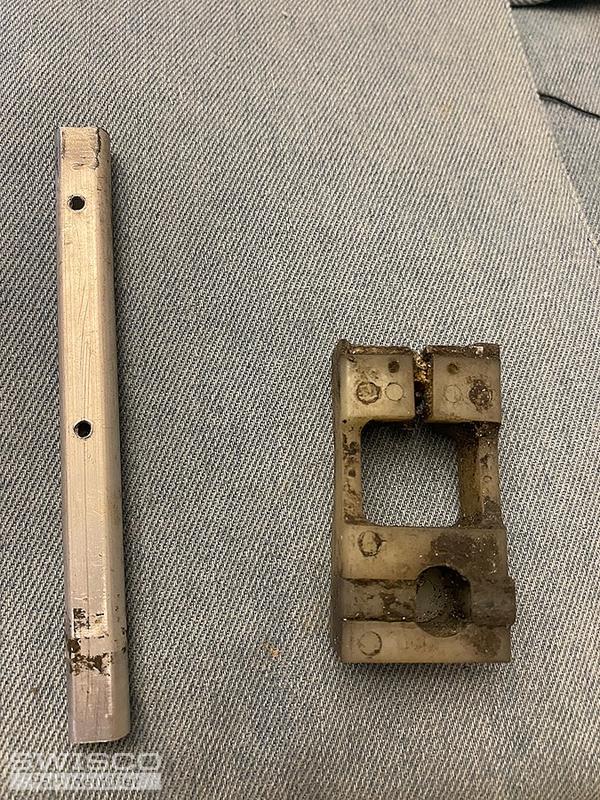

Pivot bar measurements:
4-5/8" Long
3/8 x 7/16 thick

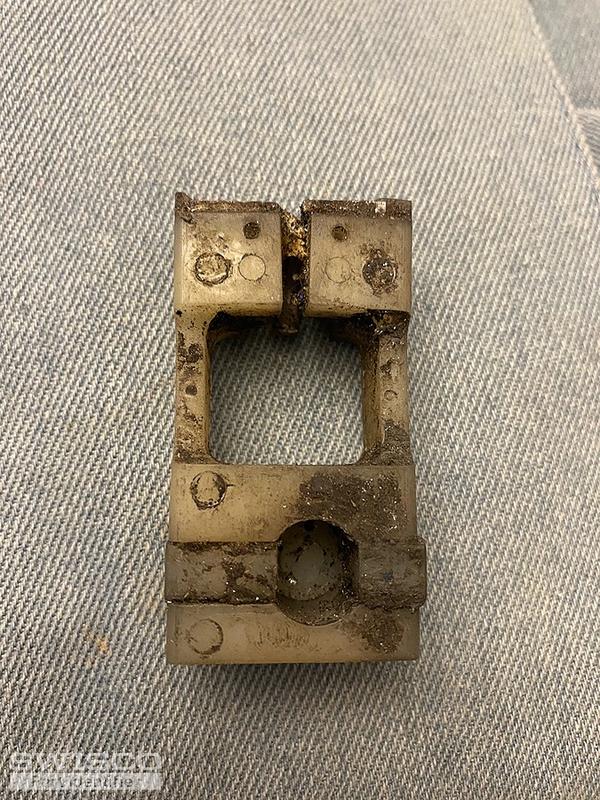

Pivot shoe:
2-1/4" high
1-3/8" wide
11/16" thick

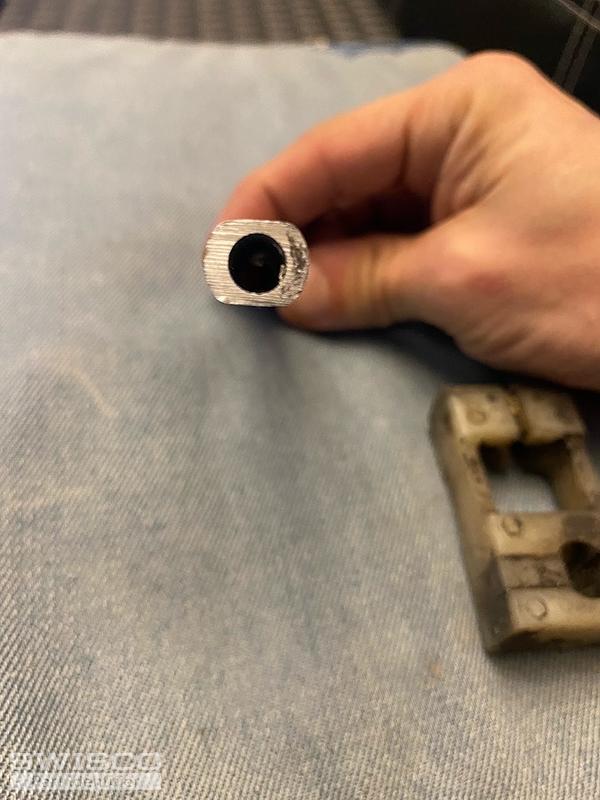

Thumbnail of the uploaded file named Mejia 3 what's that.jpeg

Thumbnail of the uploaded file named Mejia 2 shoe.jpeg

Thumbnail of the uploaded file named Mejia 1.jpeg

Casey from SWISCO responded:

February 11, 2021

Hello,

I don't recognize this pivot shoe and pivot bar at first glance but I'm going to have one of our senior experts take a look and see if they could recommend replacements for you. We'll reach out as soon as more information is available. Thank you!

Paul from SWISCO responded:

February 12, 2021

Hello,

May we see the balance that attaches to this pivot shoe? That will help us research replacement options for the hardware in your photos.

A handy person from USA says:

February 12, 2021

There you go.

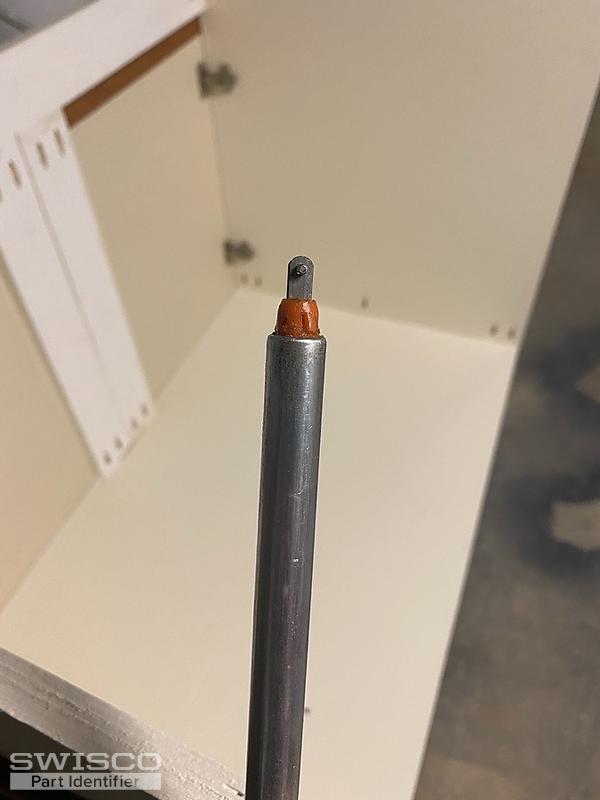

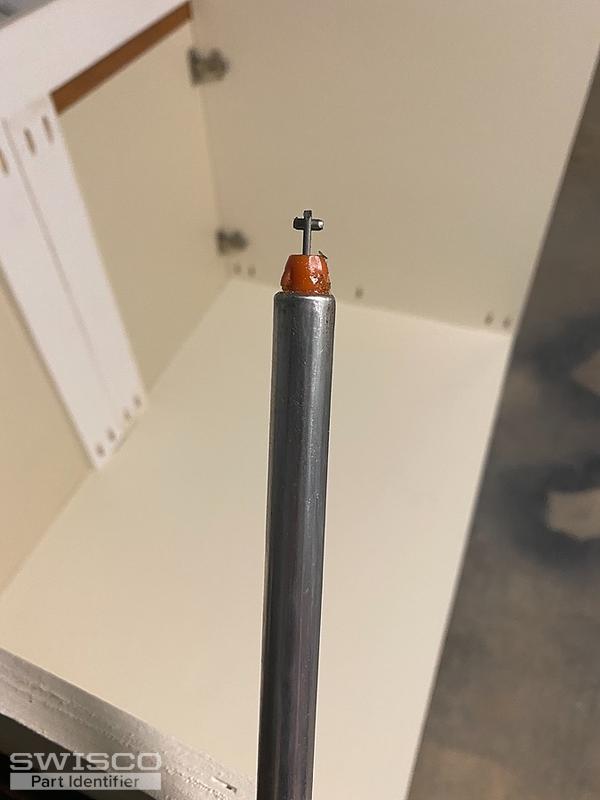

Thumbnail of the uploaded file named 9CA2D522-6413-4A3B-BFCE-6D1B39671B79.jpeg

Thumbnail of the uploaded file named C3C81DC9-0315-4E80-BCA4-AEFFA24B349C.jpeg

Paul from SWISCO responded:

February 15, 2021

Take a look at our 5/8" thick Series 600 window balance. Our 15-119 pivot shoe will work with the Series 600 balance. The width of the shoe is 1-1/4" wide by 3/4" thick. The off white center cam is 1/2" wide by 5/16", so we believe your pivot bar should fit. Thanks for posting!
