Old aluminum sliding glass door

Quick Learner from North Tustin California
Tall side:
1 3/16"h

Short side:
1"h

Width:
.5"

Metal wheels

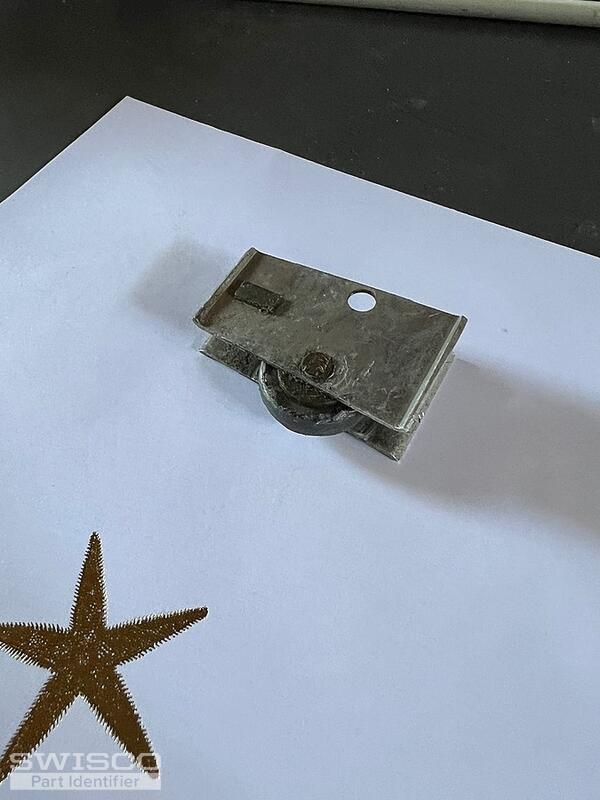

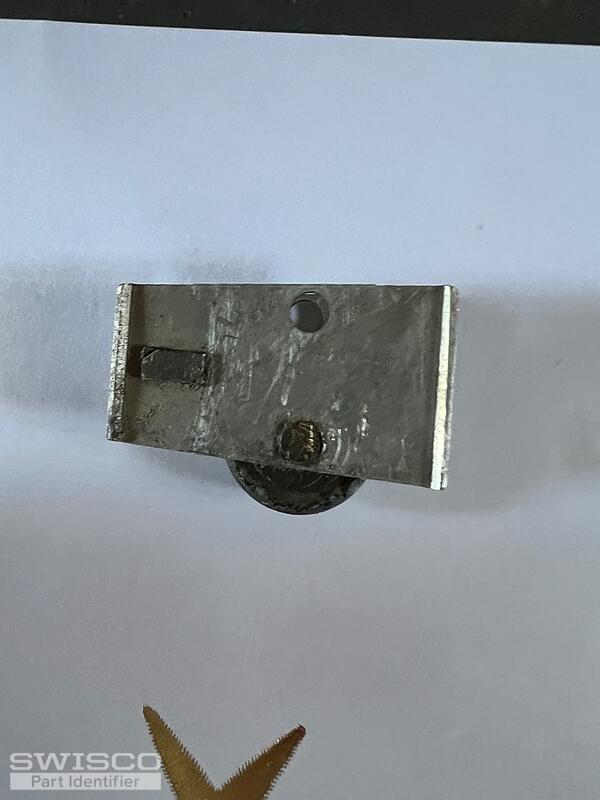

5 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

I'm sorry to say that I don't recognize this roller. Looking at your photos this looks like it might just be the internal housing of a complete roller unit. Can you confirm? Check the door to see if the external housing may still be installed.

Most patio door rollers, even for older types like yours, are made of two major components: the internal housing, which holds the wheel, and the external housing, which allows for adjustment. If your rollers adjusted then there's definitely another housing.
