Old aluminum windows

A quick learner from southaven, ms says:

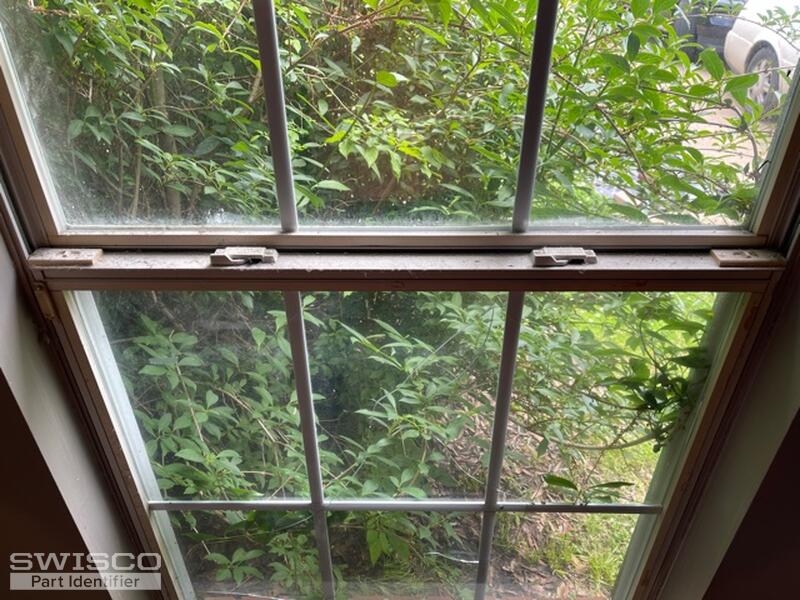

I need the hardware on top of the bottom pane that locks the window as well as the hardware on the sides that guide it in the groves.
Thumbnail of the uploaded file named Windsor Window.jpg
Profile picture of Bob
Bob from SWISCO responded:

Can you show closer pictures of the locks and latches? For the tilt latches, can you give me the distance between the center of each mounting hole? I'll do my best to ID what you need from there.

A quick learner from southaven, ms says:

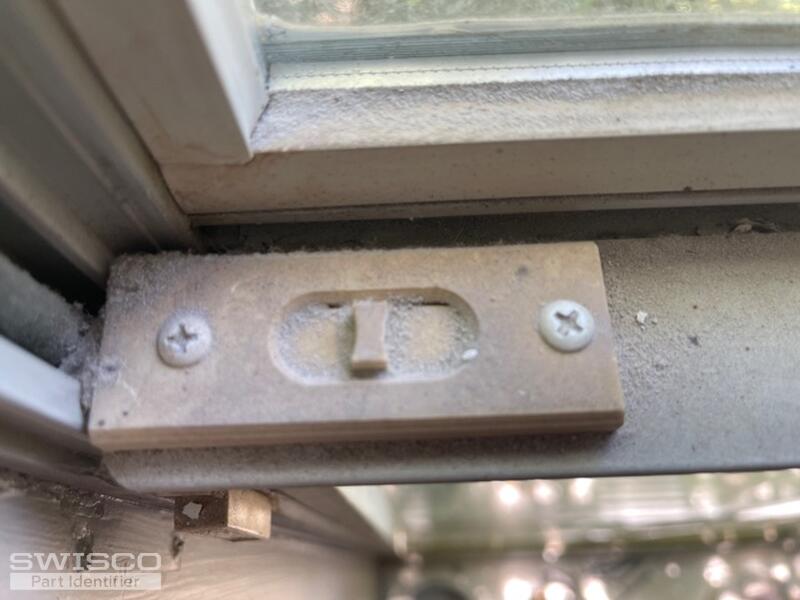

The distance between the center of each mounting hole is: 2 1/2"

Thumbnail of the uploaded file named IMG_5950.jpg
Thumbnail of the uploaded file named IMG_5951.jpg
Profile picture of Bob
Bob from SWISCO responded:

This tilt latch looks like the General Aluminum 26-195 and 26-196 ; but these tilt latches have hole spacing of 2-3/16", center-to-center. See our 26-215 , which has a hole spacing of 2-1/2" exactly. Look over all the dimensions we list in the pictures on the shop pages and see if this matches what you need.

A quick learner from southaven, ms says:

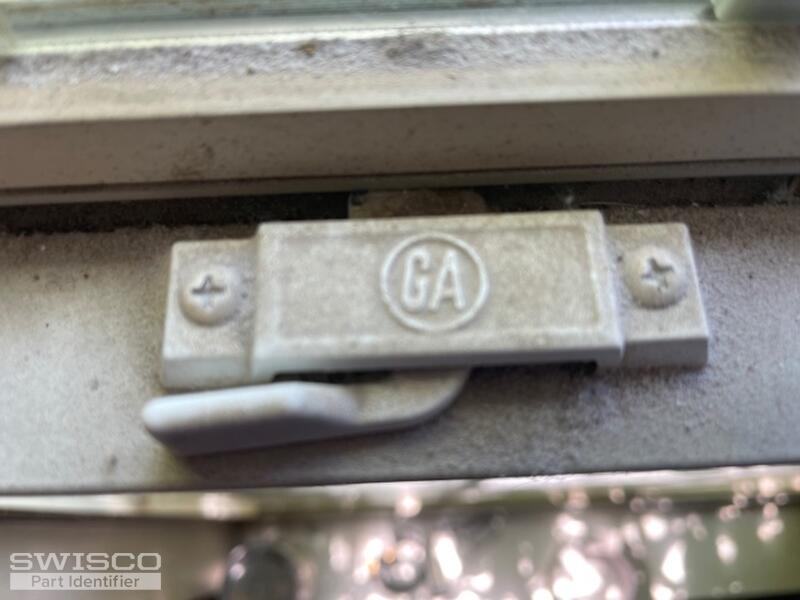

Can you help me identify and give me the part number for this window latch?
Thumbnail of the uploaded file named IMG_5951.jpg
Profile picture of Bob
Bob from SWISCO responded:

See our 90-005 Sash Lock. Look over the dimensions and see if you think this matches.
