Old bifold metal closet door

Home Owner from Madison Heights, Va

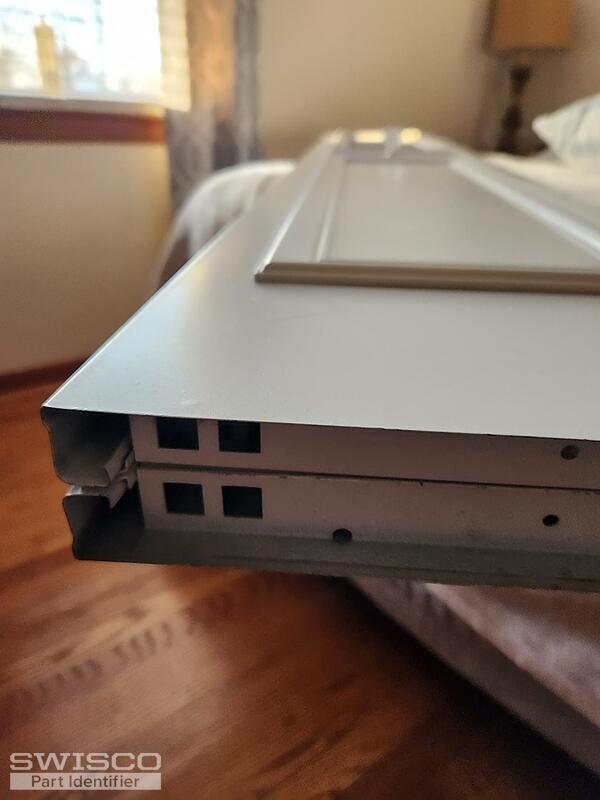

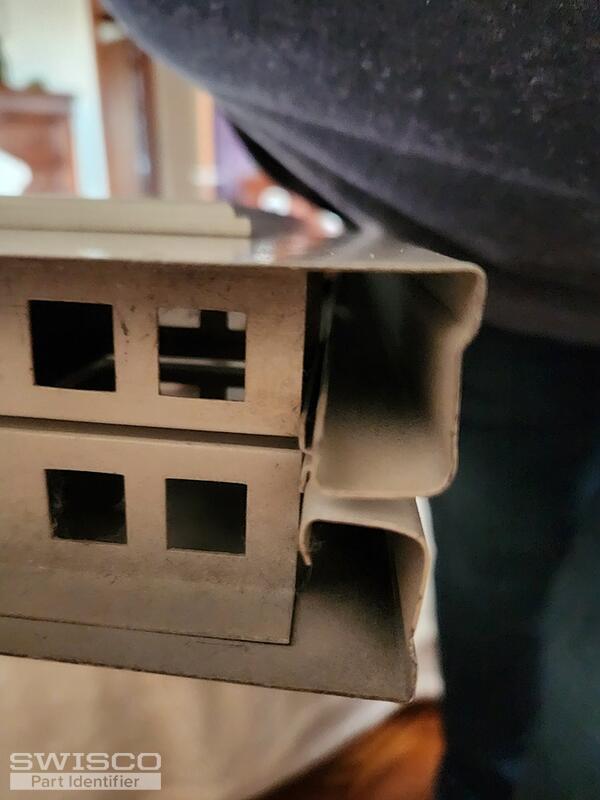

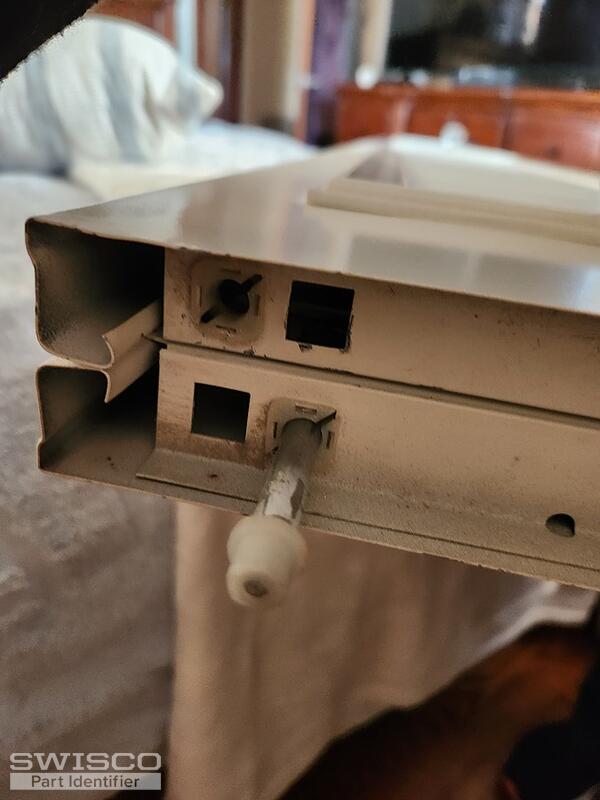

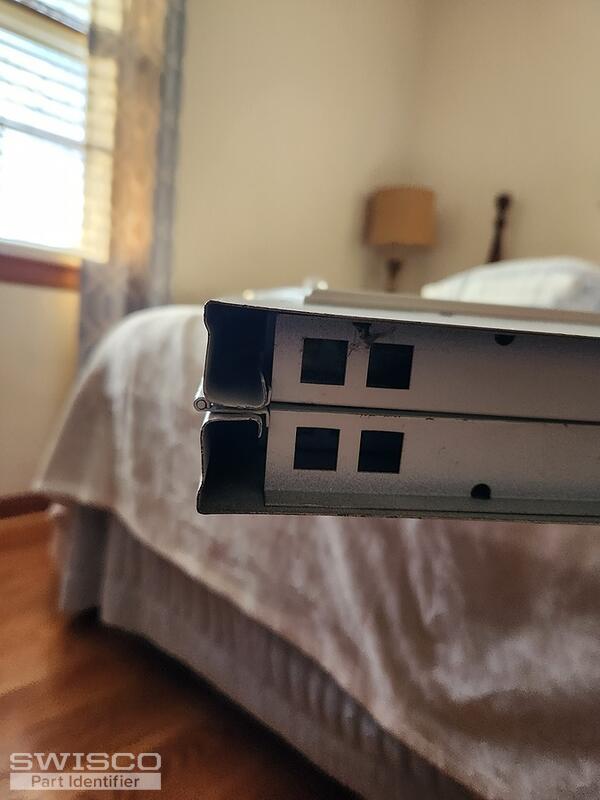

I need to replace the pins in both bottom and top of my closet doors. I c cant find replacwment parts here locally.
5 user uploaded images
4 Replies
Home Owner from Madison Heights, Va

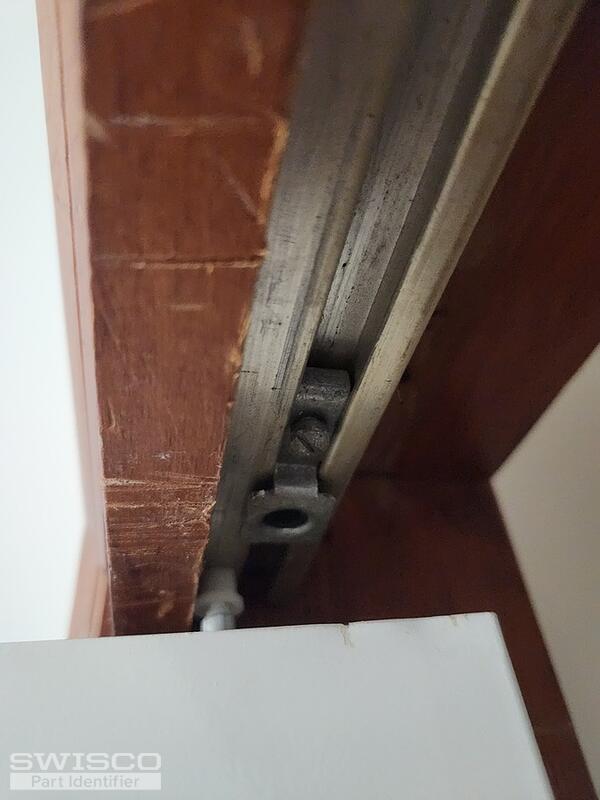

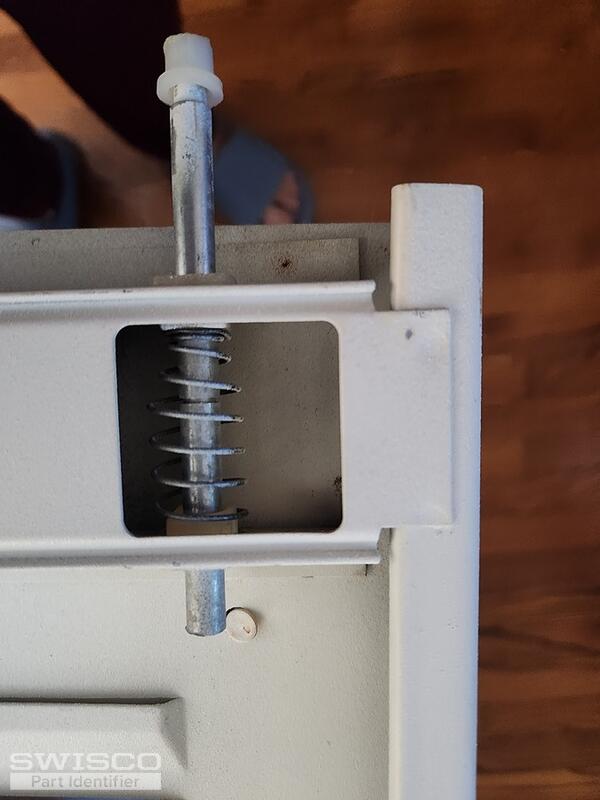

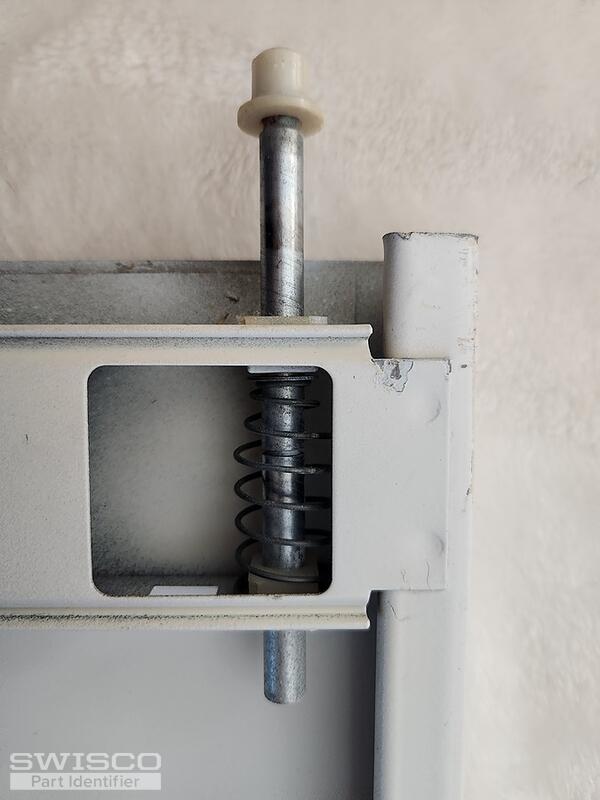

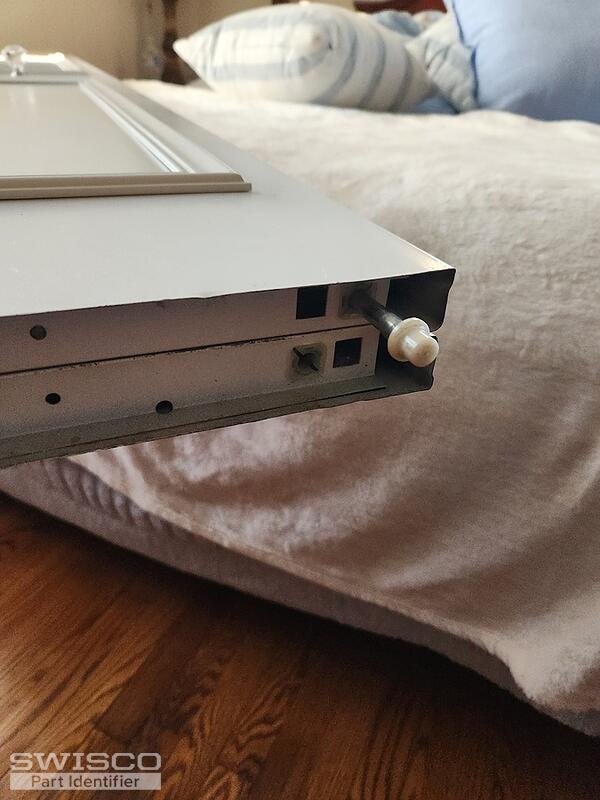

Here is a photo of the top pin and bottom pin and the top bracket.
4 user uploaded images
Home Owner from Madison Heights, Va

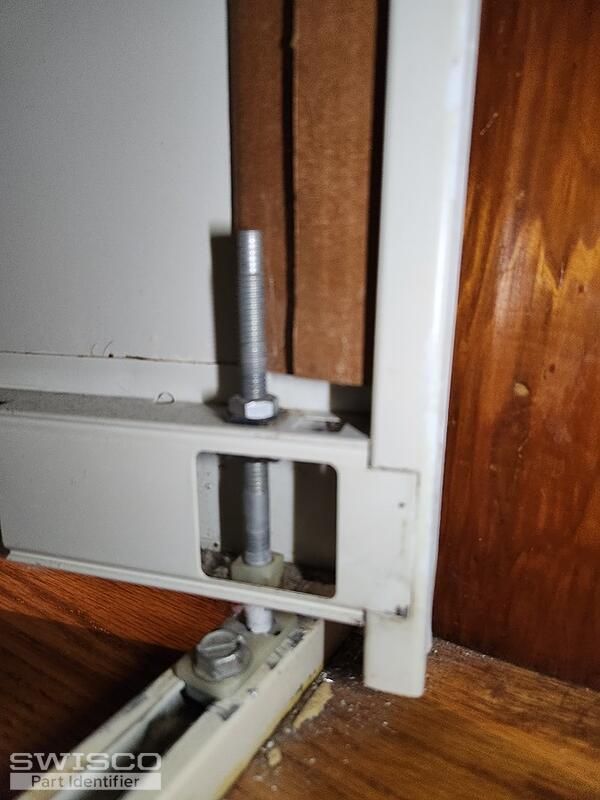

Here is the bottom stable pin
1 user uploaded image
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

The pivot bracket in your track resembles the 21-209, which is compatible with the 21-002 pivot pin and 21-044 top pivot and guide. I would recommend starting by removing your pin from the door to compare to the specifications shown on our product pages.

As for your bottom pin and guide, I can't quite make out if you have something like the 21-210 or 21-204. If you can remove the pin from the door and show us the pin and guide separately, that would help us confirm the type of bottom hardware your door uses. Thank you!
