Old bow window replacement crank and locker

Question

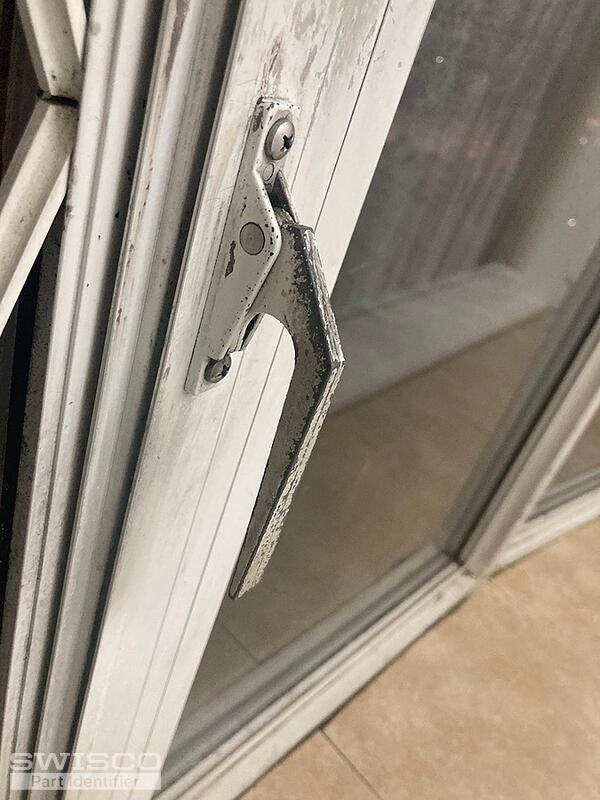

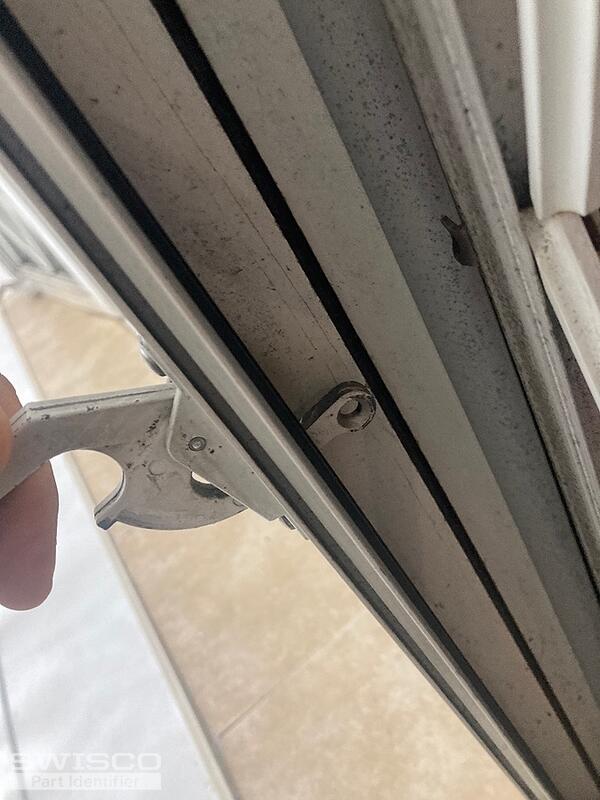

I need to replace both Trust crank and lock handle.  I also need small clips for when I attach window insect vents but don't have pictures of this.

Emily · Accepted Answer

Hi there!

Thanks for reaching out to us. Start by taking a look at the 39-028E. The arm is 9-1/2" when measured from the gear's center to the wheel's center. You'll want to measure as shown below to confirm. As for the lock, the 38-005 is similar. Take a look and see if this part matches what you need.

I'm not sure what clips you need though. Can you upload photos of them for us?

Dimensions for 39-028e

Profile view of 38-005

Side view of 38-005
