Old castle door parts

Home Owner from Wisconsin

Aug 17, 2024 12:28 pm

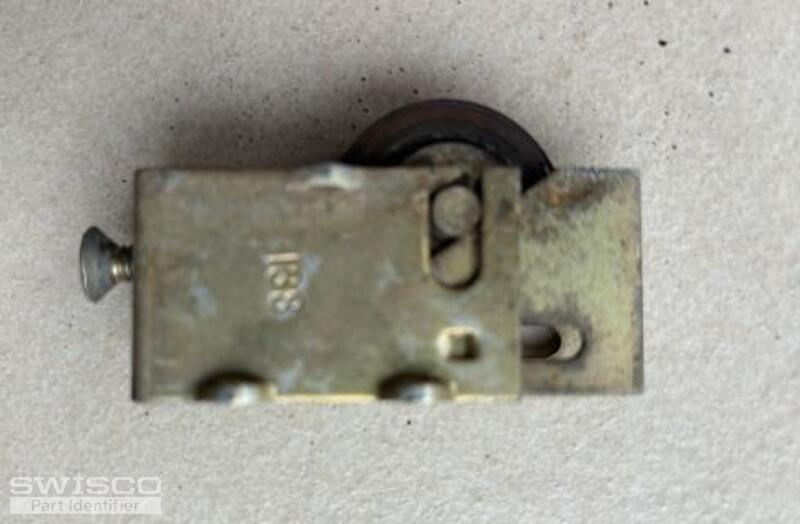

Rollers and bottom weatherstrip for 1986 era Old Castle patio doors. Rollers have metal wheel, 1 1/8" diameter. Housing is 2 11/32" long and 19/32" wide and 1 1/16" tall.

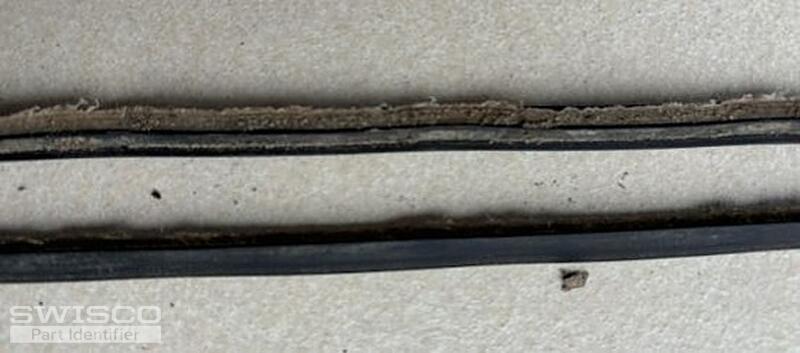

Weatherstrip (one each side on bottom door frame is 46 1/4" long and has 9/32" wide plastic strip to slide into rail. Unable to measure further because of wear.

3 Replies

+ Add a Comment

Home Owner from Wisconsin

Aug 19, 2024 9:00 am

Resending pics of patio door rollers and weatherstrip on #D335967

5 user uploaded images

Emily from SWISCO

Aug 20, 2024 1:53 pm

EXPERT

Hello there!

Thanks for reaching out to us. The 81-007 roller comes to mind. Your dimensions are off from ours though so you may want to double-check to be sure.

Unfortunately, the weatherstrip is too damaged to identify. Is there an undamaged sample by chance? We specifically would like to see the end profile.

Alternate image for 81-007

Home Owner from Wisconsin

Aug 20, 2024 3:59 pm

Thanks. I have a shopping Carter with a number of items now but will pull one of the other less used doors to see if I can get a pic of less damaged weather strip
