Old closet

Home Owner from San Antonio
So looked for a manufacture can not fond any on the door. I know the house was built in the late 60's. I saw your other post and don't know if those are the same as I don't have any way of mounting one of those clips as there are holes in the doors.I have 5 closet doors like this and all the hardware is breaking. Can you help. Let me know if you need anything else

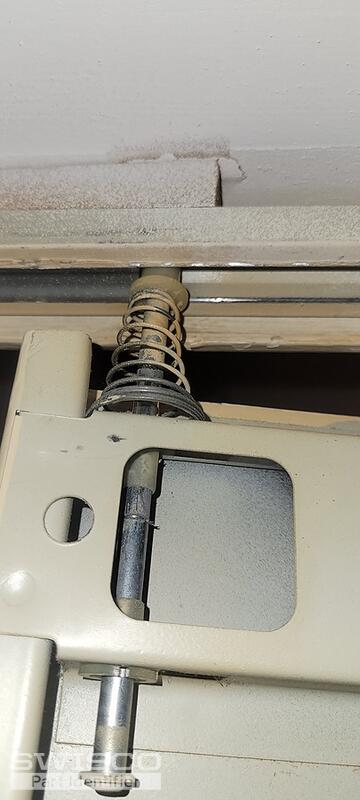

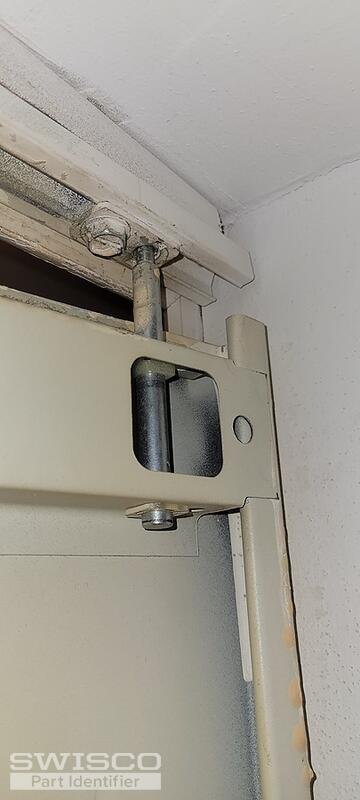

5 user uploaded images
4 Replies
Paul
Paul from SWISCO
SWISCO
Expert

Hello,

It looks like you may have Peachtree bi-fold doors. Take a look at the new style parts related on this page. Review the dimensions of the 21-028 nylon cap to yours, as well as the diameter of the pin ends of the 21-029 and 21-030 to your original pins. Note that the nylon housing springs fit and lock into a 1/2" square hole. Thanks for posting.

Home Owner from San Antonio
So how many would I need I have a total of 6 doors? Thanks
Paul
Paul from SWISCO
SWISCO
Expert

For six doors, you'll need 6 of the 21-030 bottom pivot pins, 6 of the 21-029 top pivots, and 12 of the 21-028 top and bottom guide pins.
