Old double hung aluminum windows

A quick learner says:
December 6, 2017
Need the springs and the brackets that attach to the bottom of the window. Can you help?
double hung windows
Profile picture of Paul
Paul from SWISCO responded:
December 7, 2017
I believe we can replace this. We will need the diameter and length of the plastic balance tube, though. Please update us!
A home owner from Key West says:
February 16, 2018
I would need four of each shown in the photos.

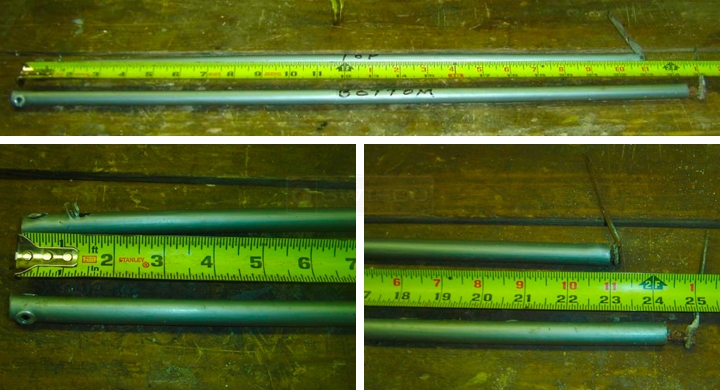

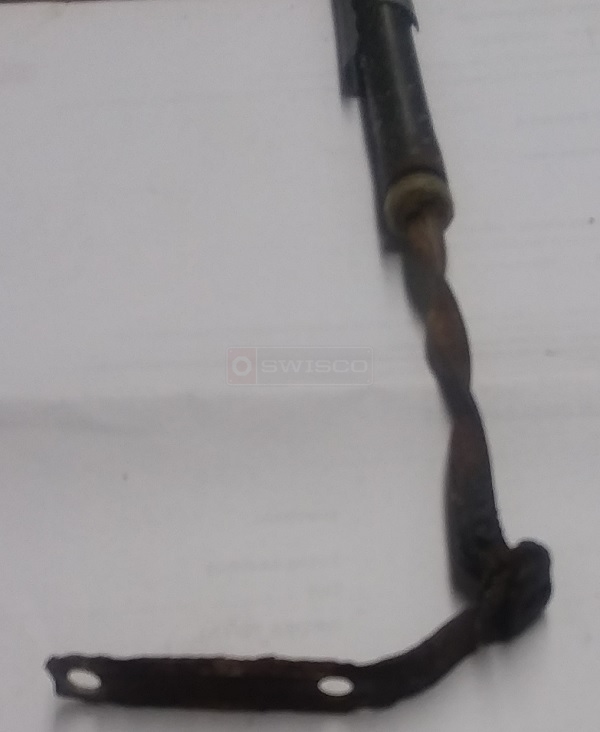

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
February 20, 2018
Thank you! Please see our S500-23 and S500-24 spiral balances. The bottom balance bracket looks like a match for our 17-012, which hooks onto the balance spiral. Let me know what you think, or if you need help reinstalling the new hardware.
23" Series 500 Spiral Balance
23" Series 500 Spiral Balance
S500-23
$8.80
24" Series 500 Spiral Balance
24" Series 500 Spiral Balance
S500-24
$9.02
Bracket, #32
Bracket, #32
17-012
$1.20
Spiral Balance Charging Tool for Non-tilt Windows
Spiral Balance Charging Tool for Non-tilt Windows
75-005
$12.10
#8 x 1" SS Philips Pan Head Screw
#8 x 1" SS Philips Pan Head Screw
33-017
$0.21
#8 x 3/4" Philips Pan Head SS Screw
#8 x 3/4" Philips Pan Head SS Screw
33-090
$0.27
