Old metal closet doors pins and sliders

A handy person from Grand Rapids, MI says:

April 1, 2021

Need replacement bottom pins and a couple plastic sliders for the bottom rails. Pic1 shows top pivot pin (which I have all of), pic 2 shows bottom of a door, pic 3 shows the one bottom pin and the plastic slider that it snaps into. The rail is at (or just over) 7/16ths inch wide. The pin is 5 1/4 inch long, 1/4 inch wide. Doors were installed in 1965. Company I work for (Standale Lumber, Grandville, MI) installs closet doors, but they've never seen anything like this. If you can find it, I'll tell them where to look for replacement parts! Thanks for any help you can provide. This is actually for my home closet doors. No idea who manufacturer was.

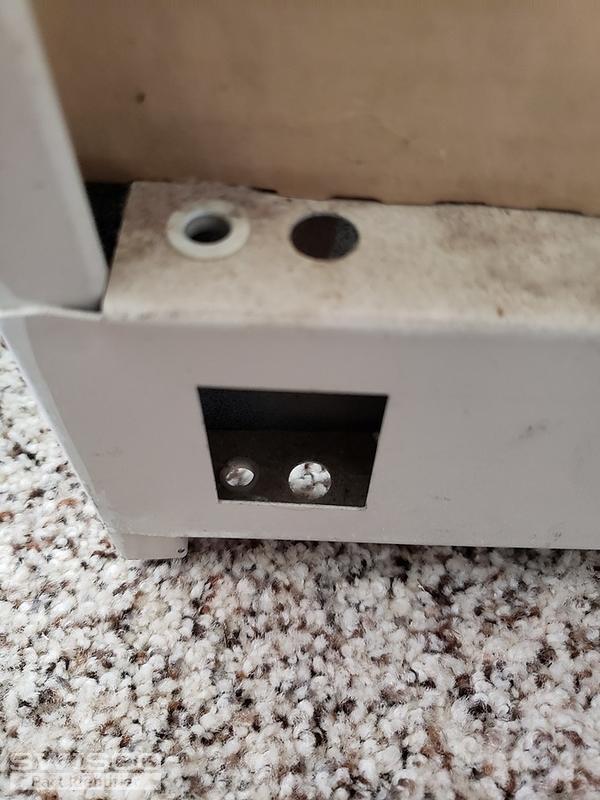

Thumbnail of the uploaded file named Pic2.jpg

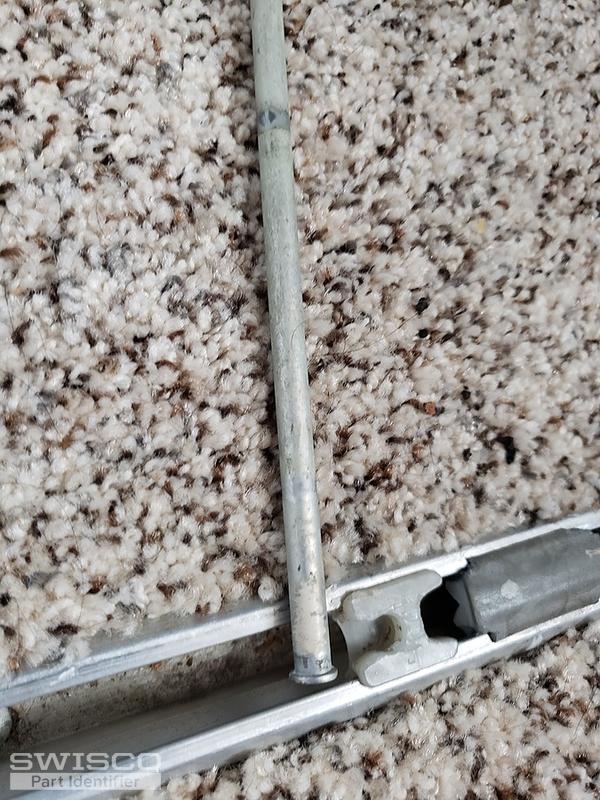

Thumbnail of the uploaded file named Pic3.jpg

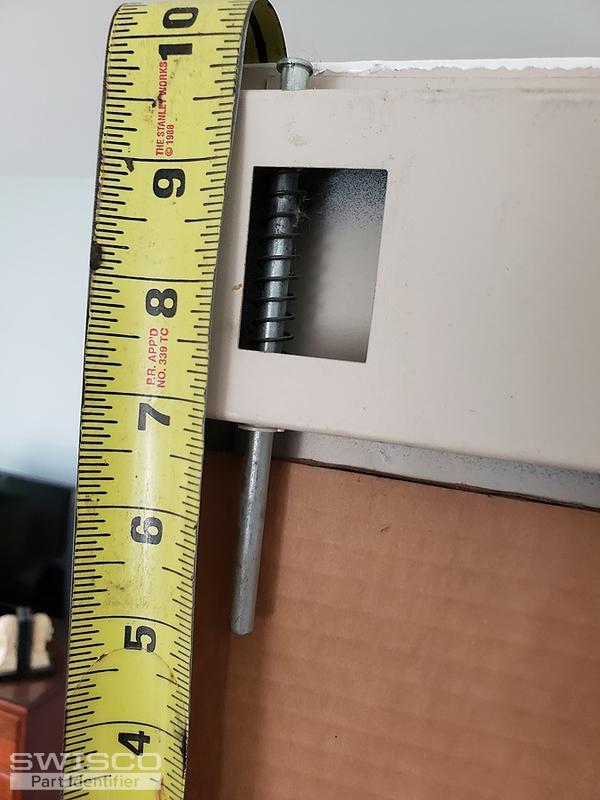

Thumbnail of the uploaded file named Pic1.jpg

Paul from SWISCO responded:

April 6, 2021

Hello,

It looks like you have an old Leigh bi-fold doors. The nylon guide from the track you are looking for is our 21-108 . We don't think you can snap it in so you might have to remove the track and slide the guide from the end of the track. We pulled up more related parts you might need as well. Thanks for posting!

A handy person from Grand Rapids, MI says:

April 7, 2021

Wow, awesome! Thanks a ton! Never thought I'd find parts for these old doors. Now they'll work again!

Really appreciate the help. I'll let people know about your site, the help you provide is way above and beyond any other website I've come across.

Jeffrey

Bifold Door Pivot, Leigh

21-048

$7.10

Bifold Door Guide Pin, Leigh, Full-VU Doors

21-049

$6.70

Bifold Door Guide Pin

21-050

$7.11

Bifold Door Guide Pin, Leigh, Monarch

5/16" Pin Pivot Bracket, Monarch, Leigh
