Old window locks, unidentifiable

Quick Learner from Massachusetts

Mar 28, 2020 5:54 pm

These windows are impossible to identify, but I have replaced the "dead" spiral balances with your products (thanks!) so I hope you can help me with this, also. One of the locks has a broken lever so I need at least one.

5 user uploaded images

4 Replies

Tom from SWISCO

Mar 30, 2020 11:45 am

This is definitely an old style lock. We may be able to track something down, though. Before I recommend anything, can you confirm the distance between the two installation holes, center-to-center? That would be for both the lock and keeper.

If it's 2-1/4", then you could possibly use our 90-005 lock and 90-109 keeper. These mismatch a little but they are compatible. You could also paint the keeper, if necessary.

Let me know what you think, or if you have any concerns.

Quick Learner from Massachusetts

Mar 30, 2020 4:00 pm

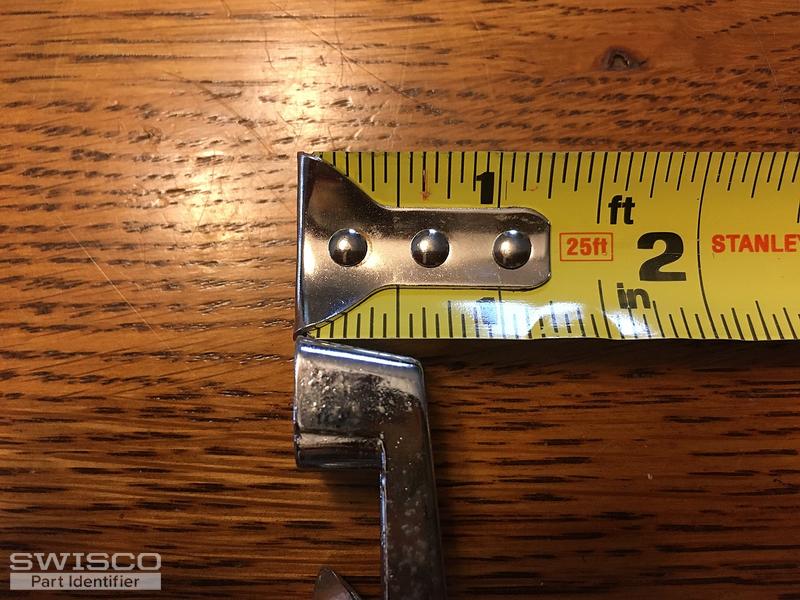

It's actually 2-3/4" between screws, on both lock and keeper. It's a 5/8" distance from keeper screw to lock screw when both on the window. Both units are about a half inch tall. Other ideas?

Tom from SWISCO

Mar 31, 2020 10:10 am

Thanks for confirming that measurement. I'm afraid we don't have anything with a hole spacing that large. Every sweep lock we carry has a hole spacing under 2-1/2", and most vary between 2-1/16" to 2-1/4".

Is redrilling your installation holes possible? I know that's not ideal, but we just don't have anything closer to the size you need. I apologize for the inconvenience.
