Older Milgard casement window locks

Handy Person from Santa Monica

Nov 24, 2021 3:58 pm

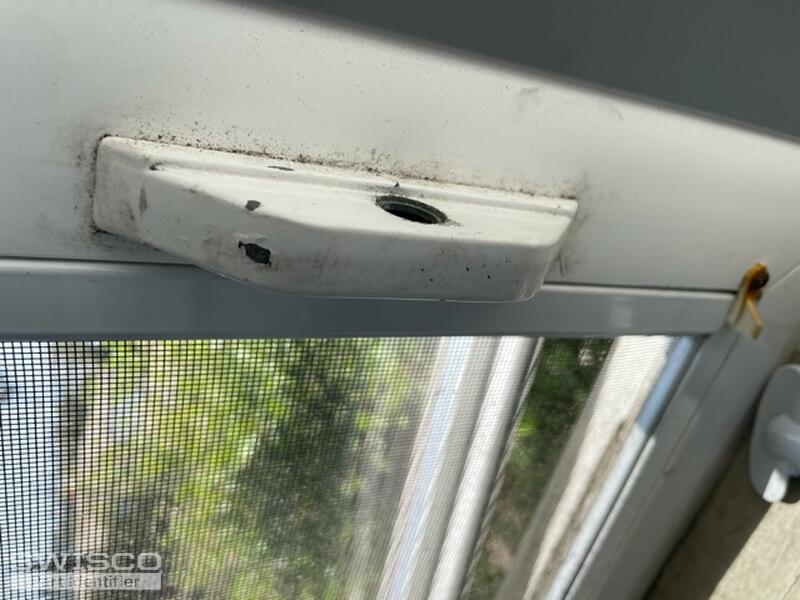

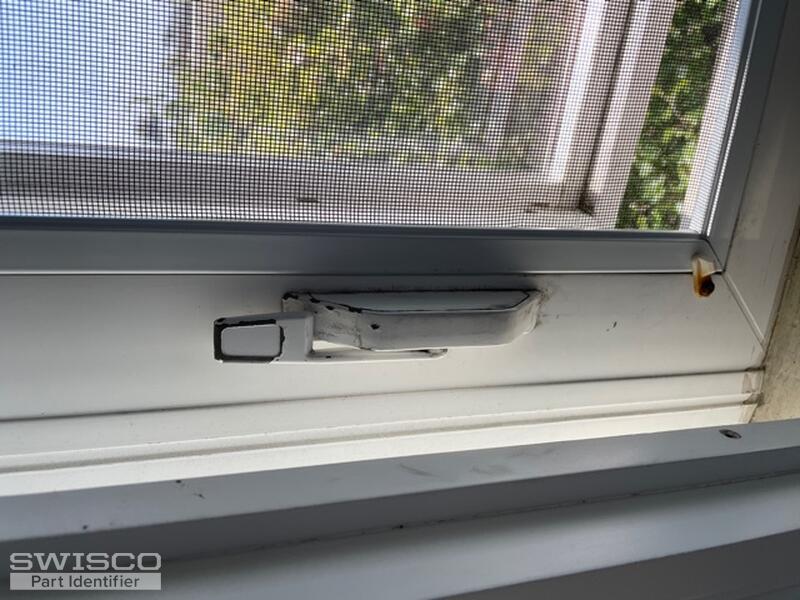

I need the locks for left and right Milgard casement windows. I hope that the photos are enough to identify the correct ones.
Other part numbers that I have ordered to fit the window (not the ones I need ) are as follows, which I hope will also help:

HA0106OPWH, HA0105OPWH, HA0024HG, and HA0094MI

Thank you,
Bruce

2 user uploaded images

4 Replies

Bob from SWISCO

Nov 30, 2021 3:46 pm

Start by looking at our 38-095, 38-096, 38-138 or 38-139 Multi-Point Locks. Compare all their dimensions, especially the projection of the fork, to your old lock and see if any of these match what you need.

Handy Person from Santa Monica

Dec 5, 2021 1:25 pm

I do not believe that any of these latches match at lease from the looks of the handle. The Milgard windows are older form the 90s. Do you have any other latches that I could compare that may match.
Thank you, Bruce

Bob from SWISCO

Dec 6, 2021 8:47 am

Without seeing the lock actually removed from the window so the rear can be seen, there's no way to narrow this down further. See the video below that shows how to remove and replace these type of locks. Note that if the lock does have a fork projection like the four possibilities I mentioned, then I believe one of these will still be the closest match, and it will come down to dimensions.
