Older closet bi-fold door pivot

A home owner from Alamogordo, NM says:

February 4, 2017

Found no names, markings, or numbers on existing hardware. Pivot is a plastic block measuring 13/16" long, 5/8" wide, and 3/8" high with a 3/8" hole a little towards one end where the door pivot goes. There is a small hole on the side towards the other end where a 8/32 screw goes to hold the pivot in place on the rail. The rail has a slot for the screw which allows adjustment. The same plastic block pivot is used for both the top and bottom pivots of the doors.

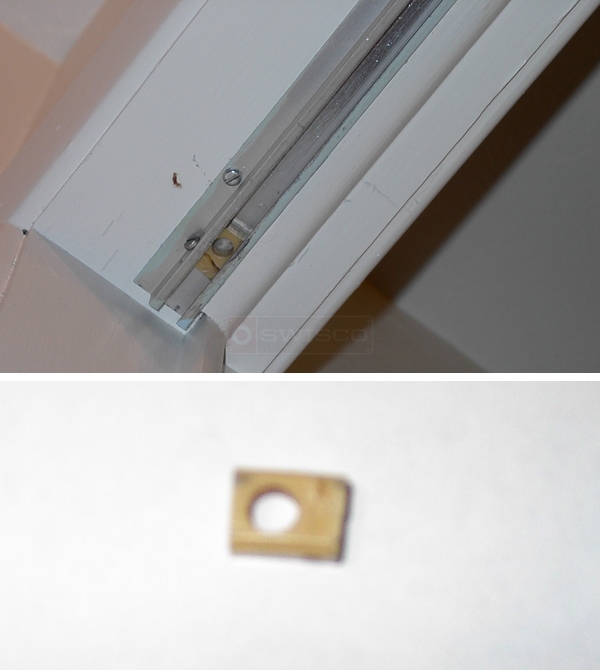

User submitted photos of closet hardware.

Paul from SWISCO responded:

February 10, 2017

I don't believe your old bracket is available anymore. You might be able to substitute it with a 21-209, but you will probably have to do some measure of adaptation. I'm just not sure as to the extent necessary.

Pivot Bracket, Benchmark
