Operating awning lever and hinges

Question

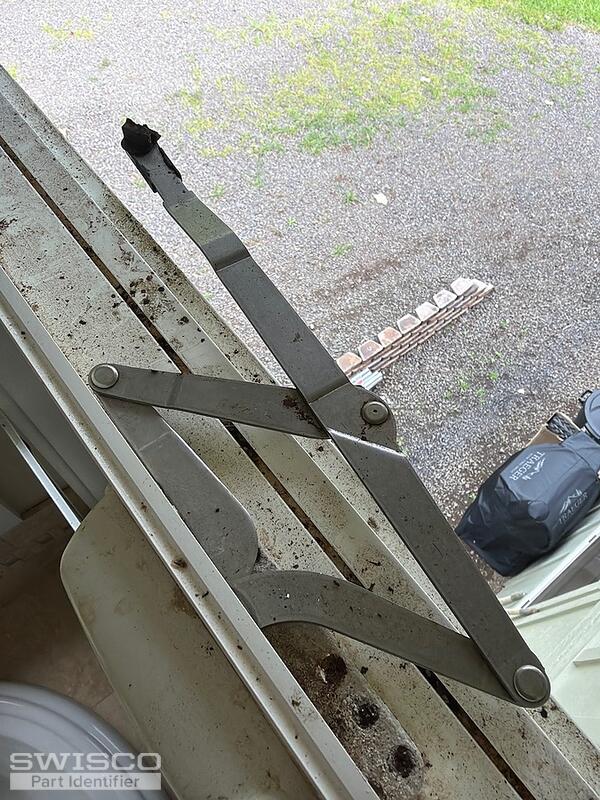

Hello I've been looking for this operating awning arm and hinges, but the ones I've ordered were incorrect. Could you guys help me  me find the correct ones please thank you !

Emily · Accepted Answer

Hi there! I am very sorry for the long wait; we appreciate your patience during an incredibly busy season.

Your operator reminds me of the 39-239B, which uses the 39-536 shoe. The 39-451 is the compatible handle/cover. As for the hinge, take a look at the 36-031. Note that it's best to replace the top and bottom hinges at the same time.

Review the specifications for these parts and compare them with yours to confirm a good fit for your window.

Dimensions for 39-239B

Alternate view and dimensions for 39-239B

Dimensions for 36-031
