Operator Crank handle and window lock

A home owner from Danville Ca says:

October 25, 2017

Markings on window : IGCC496 CBA Marvin
Can the operator crank and window locks be retro-fitted with updated hardware in
a white color ?

Tom from SWISCO responded:

October 31, 2017

I think we can help, yes. See the list of hardware I made on the right side of this page. Keep in mind that my suggestions for the locks are an educated guess; I can't quite make yours out based on your picture. If you want, you can show us a picture of one of your locks out of the window and I can confirm.

A home owner from Danville says:

November 11, 2017

Please see attached for pictures of the locks. I believe a comparable Marvin Window part no would be 10840039 and 10840040. Can you also advise me as to whether there is a comparable Truth Hardware folding handle style that would work with my operator. Operator is a Entry Gard Truth 0842R. Comparable Marvin part no might be 10898292 and 10898291 but I am not sure.

Thank you for your help.

Donna

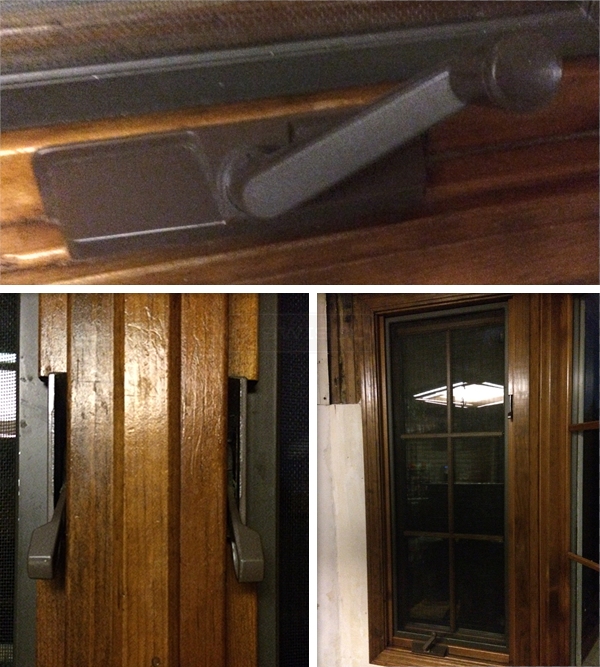

User submitted image of their window hardware.

Dave Sr. from SWISCO responded:

November 20, 2017

Thanks for the additional photos, Donna. After reviewing this photo further,I believe the Marvin lock may be replaced with our 38-075. The number stamped on the back of your lock 30306 is the same stamped on the back of the 38-075. Check the dimensions with your lock. The 38-075 uses the 38-089 keeper. See if the keeper matches yours. Get back to us and let us know how you made out.

Truth Hardware Operator Cover

Truth Hardware Low Profile Sash Lock

38-075

$10.37

Casement Window Keeper

38-089

$2.27
