Operator for Awning window, and cover plate.

Question

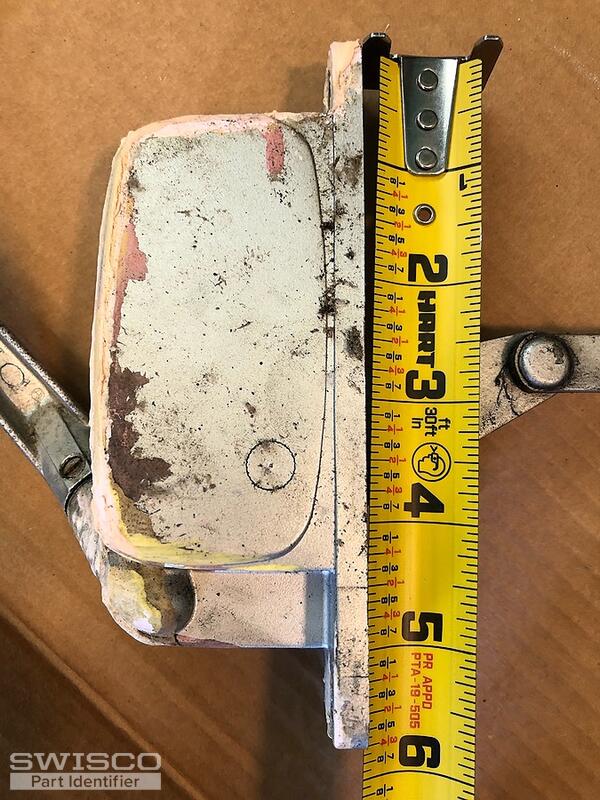

Hello. Please help me ID the window operator and cover plate for my windows, images attached. Arm extension measures 2 3/8". Also, operator mounting hole needs to be to the right at the top, not centered. Thank you.

Casey · Accepted Answer

Hello,

Unfortunately, Air Control is no longer in business but the 39-061 and 39-062 operators are a similar style to yours. The link arm is a slightly different length but that is not necessarily a deal breaker since the arms have a good amount of play to compensate for the difference. The determining factors would be the installation hole spacing and diameter of the hole at the end of the link arm that attaches to the window linkage.

Dimensions for 39-061

Alternate view of 39-061

The cover plate shown in your last photo is no longer made but we do offer the 39-355 cover plate. Take a look and see what you think. Thank you!

Alternate view with measurements
