Operator for Continental Aluminum Producsts louvered windows

Question

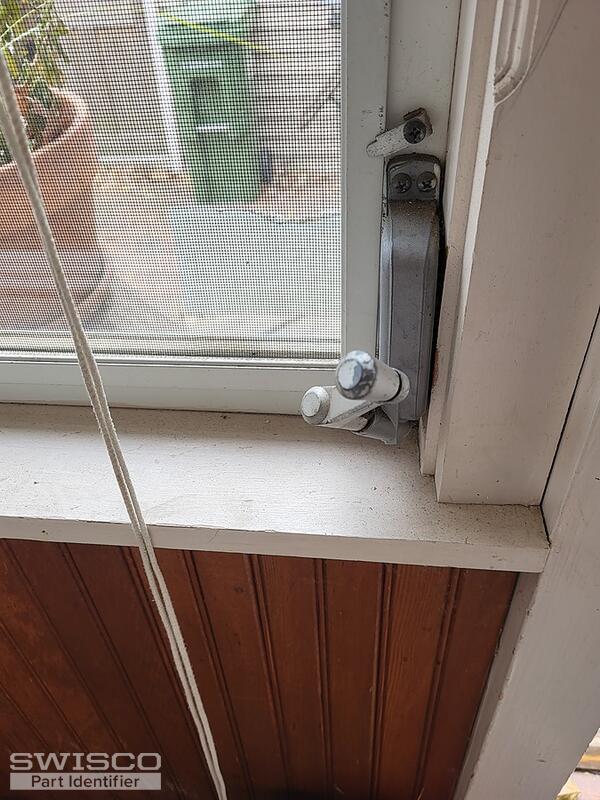

I need a right hand operator for louver windows. The flat connector arm is 2 7/8" hole to hole and holes are 3/8". Distance between lower mounting holes is 1 1/8" and the distance between the upper two holes is about 7/16". The vertical distance between the lower and upper mounting holes is about 5 1/8".

Jasmine · Accepted Answer

Thanks for your post! This window operator reminds me of the 39-279 RH Awning Operator. It uses the 33-081 screw and 33-206 Should Bolt Washer. To confirm that this is the correct match, carefully double check the dimensions below.

The left handed version is the 39-280.

Dimensions for 39-279

The left handed version is the 39-280.

Dimensions for 39-279
