Operator for left crank out window

Quick Learner from St Marys, Ohio 45885

Sep 30, 2024 11:55 am

The pictures are of the right side. I need the left if looking at it from outside. It is way broken. Crank broke too. Don't think I can open it.

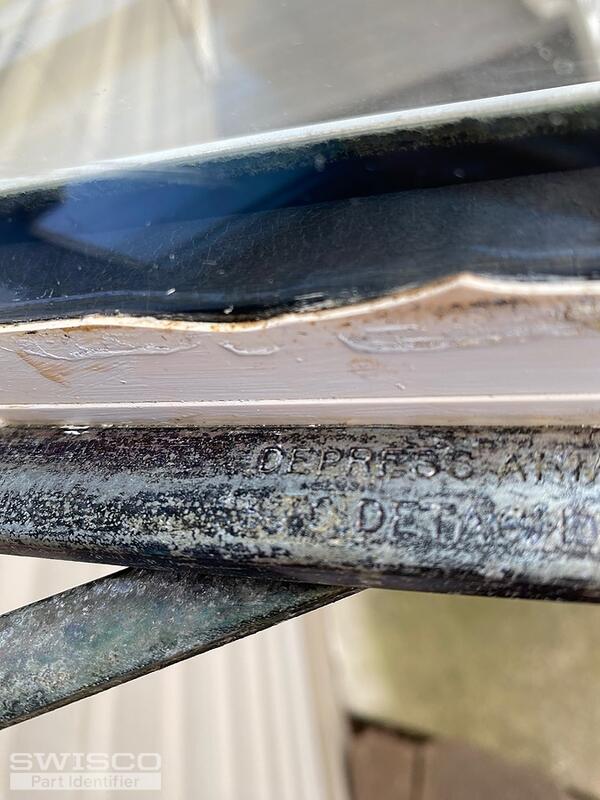

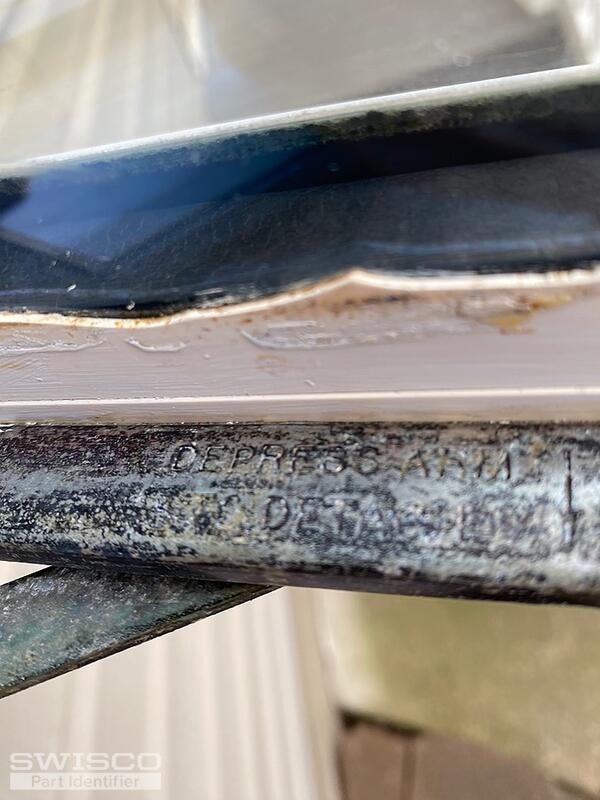

Numbers on it DEPRES-???

DETA ??

Also says entry gard Truth29810

5 user uploaded images

4 Replies

Jasmine from SWISCO

Oct 3, 2024 3:20 pm

The window operator you are searching for is the 39-031 EntryGard Dual Arm Operator, which is the opposite version of the one you have (the 39-032). Compare the dimensions shown below to confirm that this is the right fit for your repairs.

Be sure to take a look at the other compatible hardware and accessories tagged below!

Dimensions for 39-031

Quick Learner from St Marys, Ohio 45885

Oct 4, 2024 1:43 pm

Can you see the piece in the first picture I sent that looks like each end is underneath the other parts. One end attached to the window and other end is attached to the longer bar of the part with the gears on it? I don't see that piece in the photos you gave me. The rest measures right.

Jasmine from SWISCO

Oct 7, 2024 12:52 pm

Hello,

I believe you are referring to the sash track that the end of the straight operator arms slides in. Please review the 39-533 or 39-505 to see how they compare to your original.

There are also the hinges that sit under the operator itself. If you need new hinges, start by reviewing the style and dimensions of the 36-048 2-bar hinge set that has a 10" sill track. Please note that both the top and bottom hinges would need to be replaced at the same time. The video below shows the placement of the hinges. Let us know if you have any additional questions!
