Operator and Lower Link Guide(?) for older Awning Window.

Home Owner from Sarasota, Florida

May 8, 2024 10:55 am

No indication of names/brands/company on windows.
There are pat. number on the Lower Link Guide (pat no 3444648); Operator D-198,20? RD. 1963 CAN.
Window make a snapping sound when I attempted to screw in operator handle which came loose and would not close window.
House built in 1980 in Florida.

Thanks in advance.

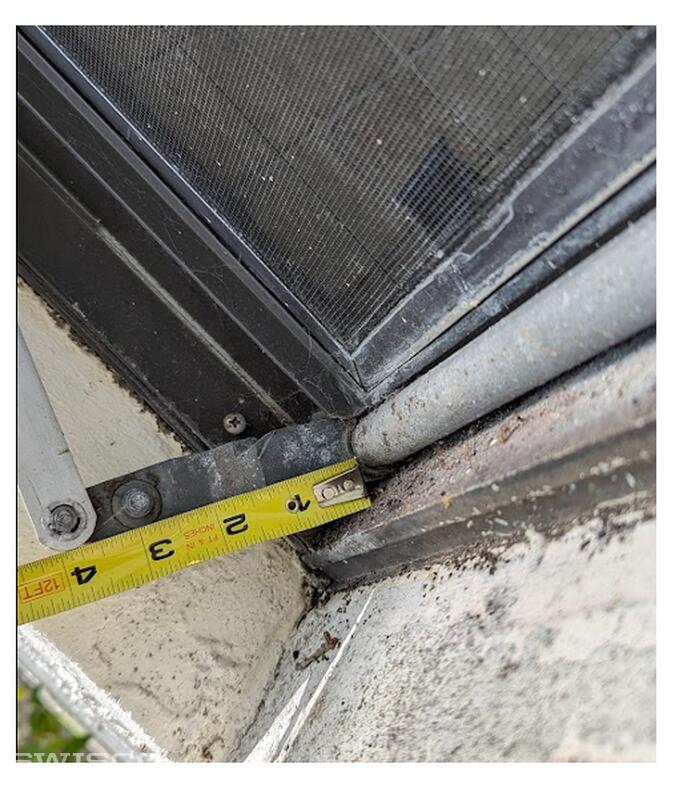

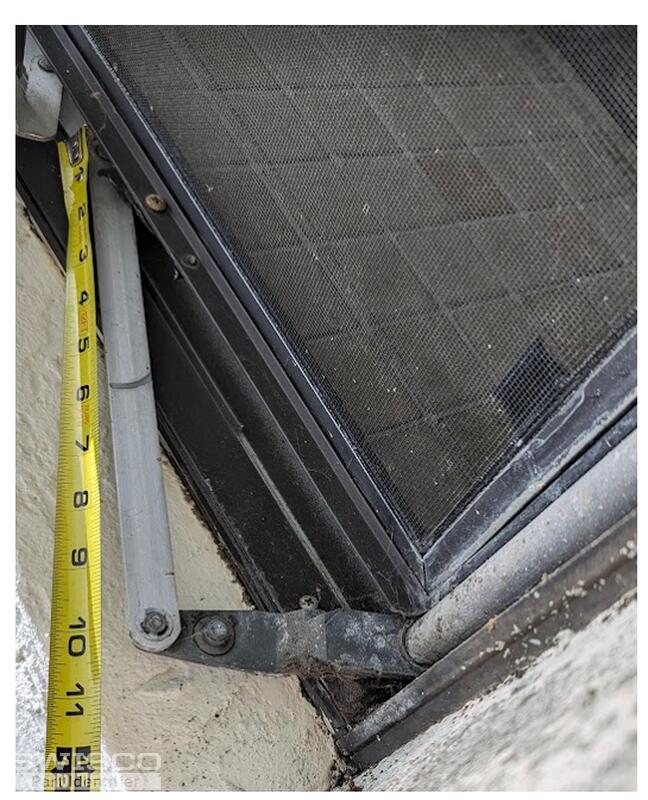

Operator Measurement Guide with Measurements

5 user uploaded images

3 Replies

+ Add a Comment

Lauren from SWISCO

May 9, 2024 3:25 pm

EXPERT

Hello, thank you for posting,

Please start by reviewing the style and dimensions of the 39-539 Andersen vent hinge pair.

For the operator, would it be possible to see a side view of the operator link arm? At first sight, the style looks similar to the 39-259. but the dimensions differ than what was provided. Take a look below.

Dimensions for 39-259

Home Owner from Sarasota, Florida

May 9, 2024 5:23 pm

Thank you for the help.

The measurements of the 38-259 line up well. (Mine is flush for all of the screw holes, but I can grind the one flush if needed)

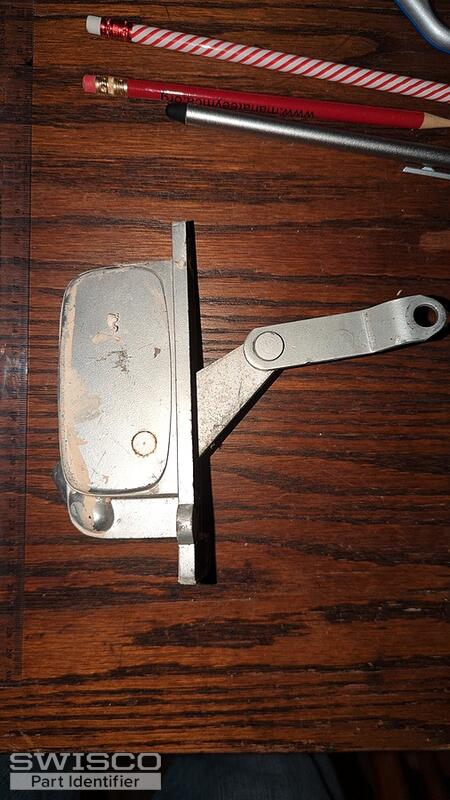

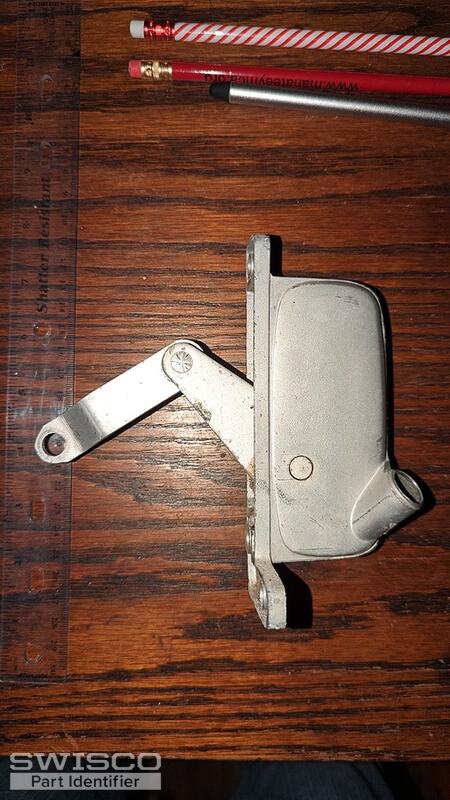

Here are two side photos of the operator, as requested.

2 user uploaded images

Lauren from SWISCO

May 10, 2024 8:05 am

EXPERT

Thank you for the additional pictures,

If the dimensions are matching up, the 39-259 operator would be our closest option to your original based on the style. Let us know if you have any additional questions!
