Optimum Window tape balance replacement

A home owner from Beacon, NY says:
March 31, 2020

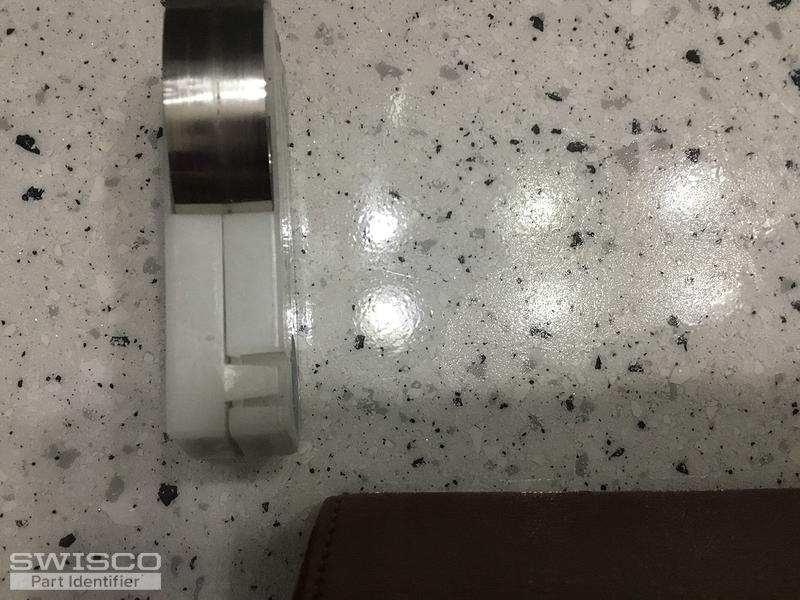

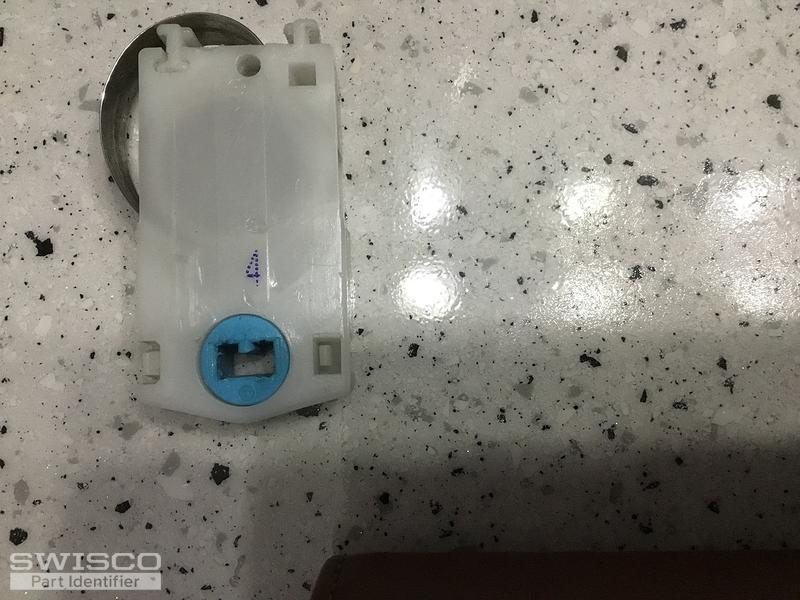

I have a window that was purchased 15 years ago. I need to replace the tape balances. The manufacturer at the time was Optimum. They are no longer in business. The size of the balance shoe is 9/16 d x 1/14 wide and 1/12 high including tabs on top. The sash weight is 8lbs. The sash size is 18 .5 " high x 20.5" wide x 1.5". The size of the window is approx. 24 "x 36"
Thumbnail of the uploaded file named 7088DDB9-87B8-4DF1-9064-AE01958C6ABB.jpeg
Thumbnail of the uploaded file named 29443E8E-136B-422C-863E-020AAAD5B9D9.jpeg
Thumbnail of the uploaded file named D19DC348-80E1-490A-A2C3-98EDE7E83597.jpeg
Thumbnail of the uploaded file named 0F69C453-4A21-4059-A9F1-7450F973297B.jpeg
Thumbnail of the uploaded file named D7AEBF55-BA17-41F1-8FD1-F59386005FB3.jpeg
Profile picture of Tom
Tom from SWISCO responded:
April 1, 2020

Hello! This looks like our 15-087 pivot shoe, which is compatible with our Series 180 coil spring. Look these parts over and let me know if you agree.

Since the weight of the sash is eight pounds, I recommend our S180-4. These carry four pounds each, so one on each side will total up to your sash weight.
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
4 lbs Series 180 Coil Balance
4 lbs Series 180 Coil Balance
S180-04
$4.20
