Hi! My double hung window - original manufacturer Oran - has some broken parts. Research indicates you have the most compatible components.
1 - two broken pivot bars (see pic for example). 3 inches long. 3/16 wide.

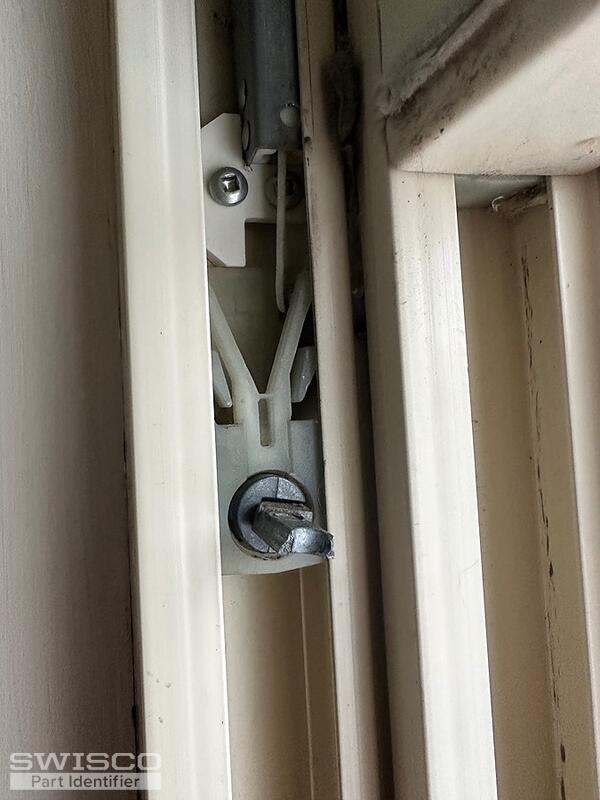

2 - one channel bar (see pic) with broken component that connects spring to pivot shoe via string. Bar is 28 inches long and 5/8 wide. Since I want consistent tension in both sides, I will need 2 replacement channel bars and replace the unbroken side as well. Marking in the channel bar I removed is: (first numbers hard to read) (64/84) unique 27-D-40
3 - I assume I will need to replace the pivot shoes as well? Since I assume new channel bars and pivot bars would not be compatible with existing shoe.
I believe I will need to count out a bit of the channel frame to be able to remove and replace the pivot shoes?
Any other advice?
Thanks! Dave
|
Paul from SWISCO responded:
May 28, 2020
Many thanks for writing in. Offhand from your photos, it looks like you need the S770-28 tilt window channel balance with a stamp option of 28D, which is for a window sash in the weight range of 23 through 28 lbs. Look this balance over to ensure it matches what you need; you'll also want to make sure it attaches to the top of your window track the same way ours does, via a screw hole; if not, show us how yours attaches. For your pivot bar, I can't quite make it out, but it might be something like our 26-226. Compare to see. If your pivot shoe is undamaged you can reuse yours; otherwise, compare your shoe's dimensions to the 15-188 to see if this matches what you need. |
|
|
Paul from SWISCO responded:
June 1, 2020
You should be able to use the original securing devices with the new S770-28. You won't need to drill a new hole to attach the balance at the top. |
|
Bob from SWISCO responded:
June 1, 2020
Great! Let us know if you have any other questions. |
