Hi, I need 6 new cranks and 4 new hinges.
Thank you,

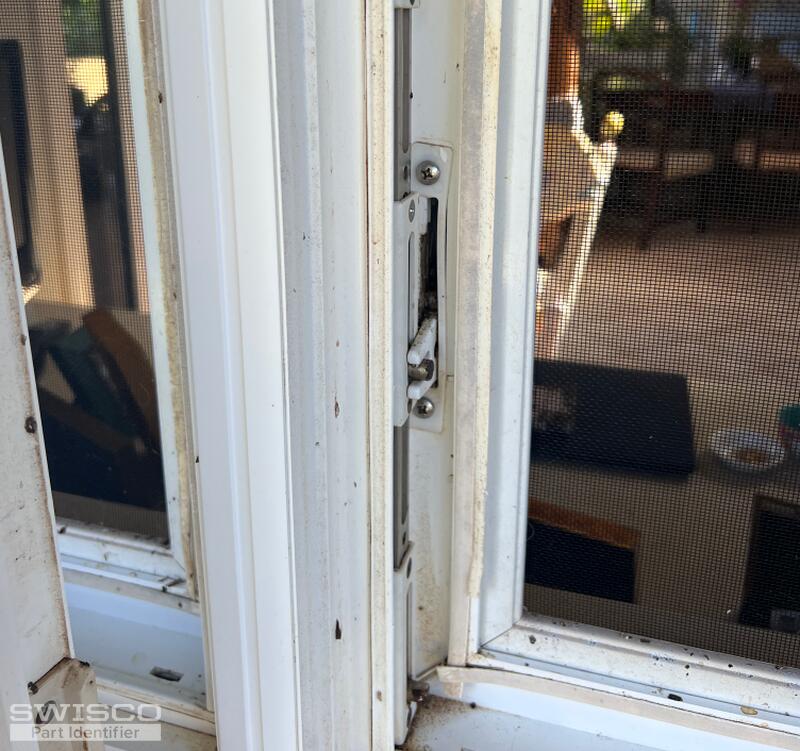

Are you able to identify these parts? I'm having a difficult time getting anyone out to look at them to make sure I order the correct parts. I need hinges ( I think for 2 windows and about 6 cranks for the other windows.

Casey · Accepted Answer

Hello,

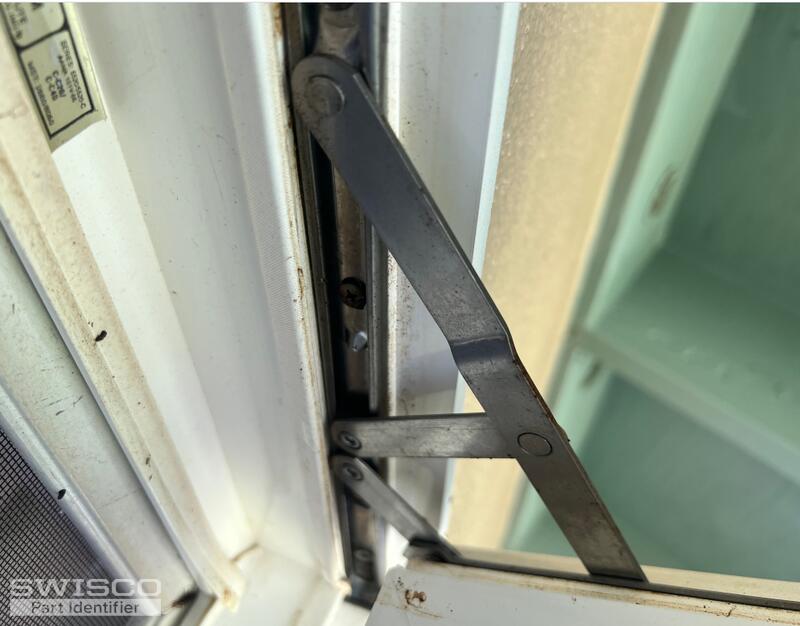

It looks like your window uses four-bar hinges. I would recommend comparing the specifications of the replacement options shown in our inventory here to determine if one of them matches up to yours. Detailed dimensions can be found on each of our product pages.

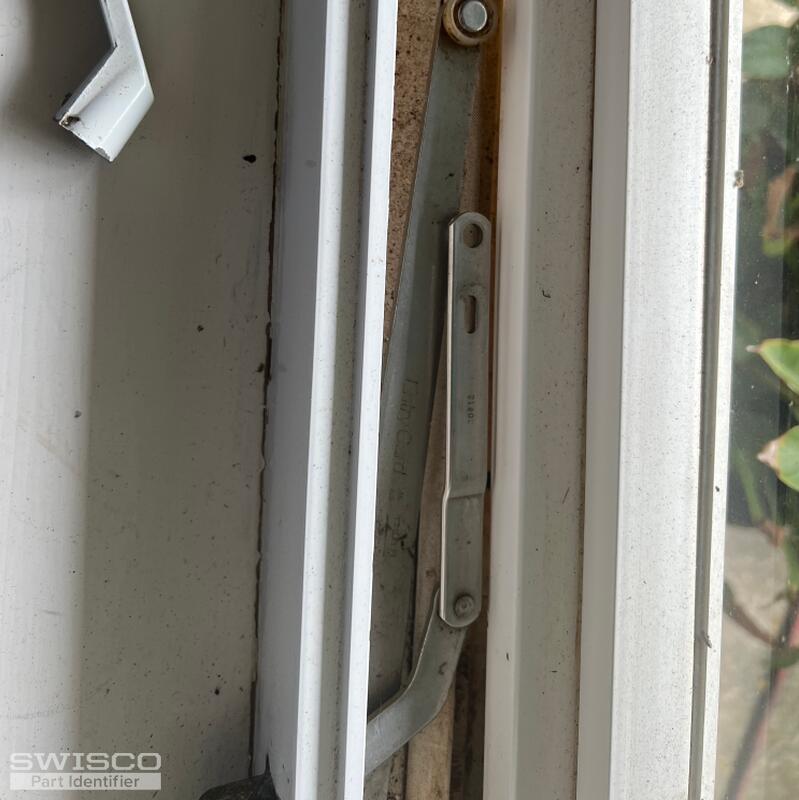

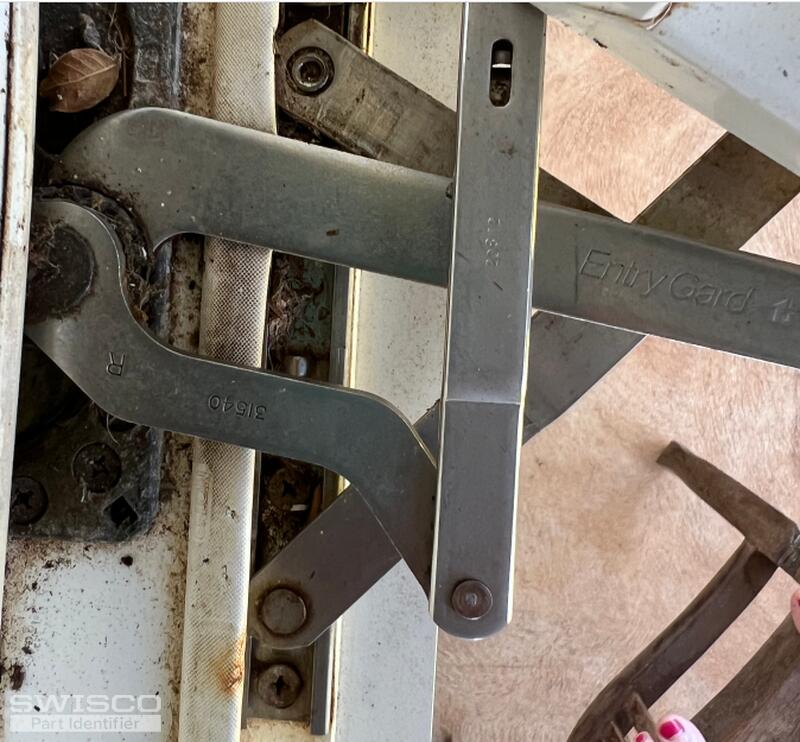

As for your operator, I would recommend starting by comparing the dimensions of the 39-031 and 39-032 to your assembly. Note that the length of the shorter link arm is a key dimension. Take a look at the parts and videos related on this page a see what you think.

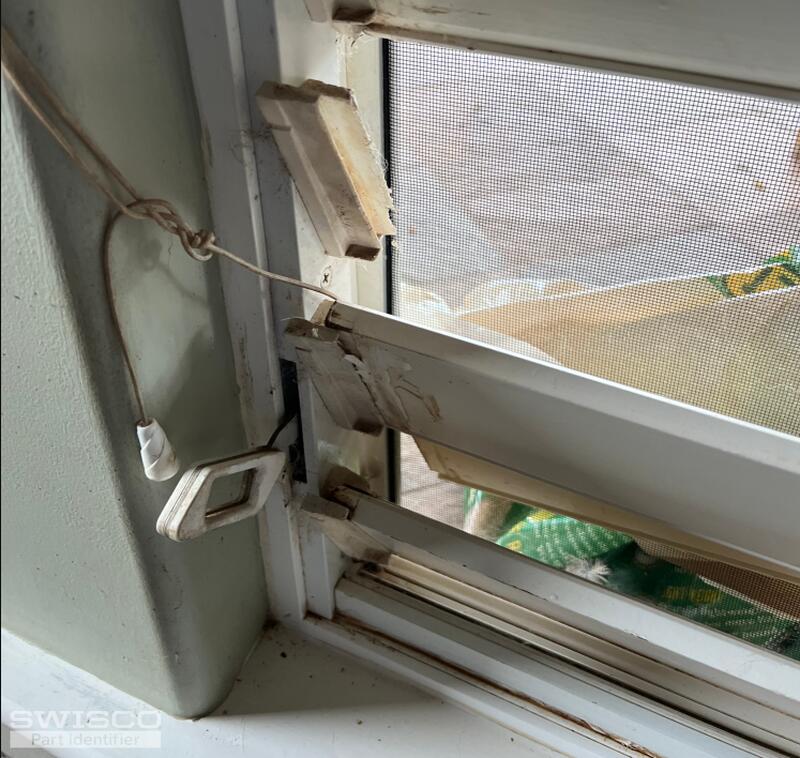

As for the jalousie window hardware shown in your last photo, unfortunately, we do not carry suitable replacements for these old-style parts. We apologize for the inconvenience.

Dimensions for 39-032
