Outside Screen frame corner

Quick Learner from Wichita,KS

We have Simonton reflections white vinyl casement windows series 5500. We are needing to replace some of the outside screen frame corners. I believe the part number is 95-207 but would like your opinion if I am correct.

I also want to replace the screen clips on some of them that have broken. I believe it is part number 70-222 - silver line screen clip. Can you confirm that as well?

Thank you.

Anne

3 user uploaded images
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to look into this for you but we would need to see your screen corner uninstalled to compare to our inventory. We'll also need you to write out the exact thickness of the frame opening where the corner installs to narrow down your options. Please also include photos of your original screen clip. Thank you.

Quick Learner from Wichita,KS

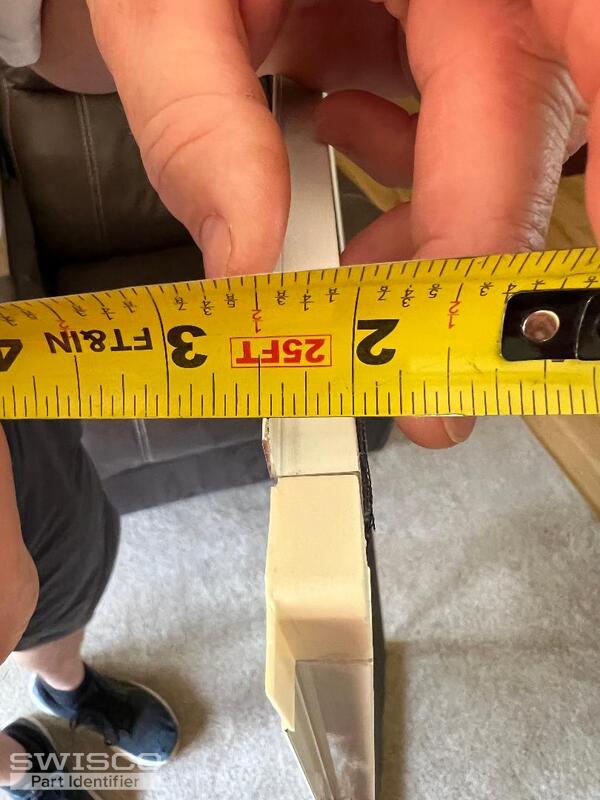

The screen thickness at corner is 7/16".

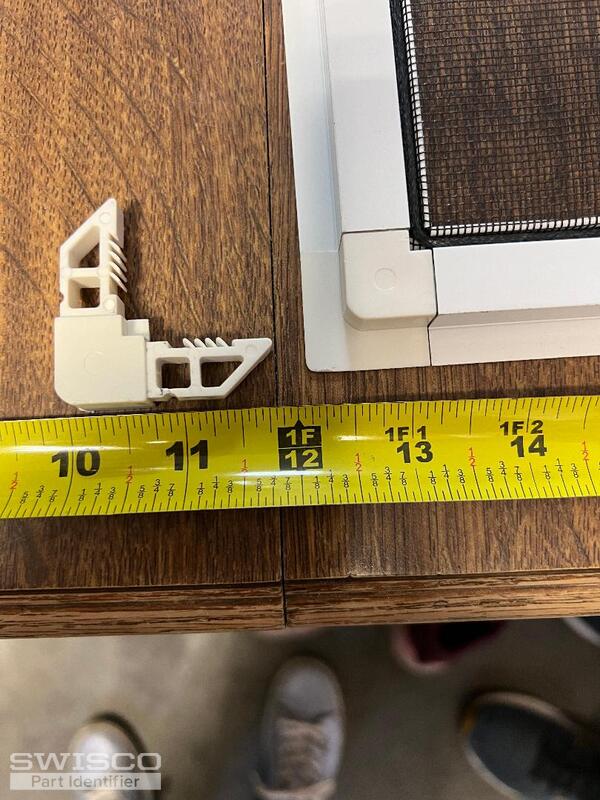

The screen corner uninstalled (flange broken off) next to screen corner with flange.

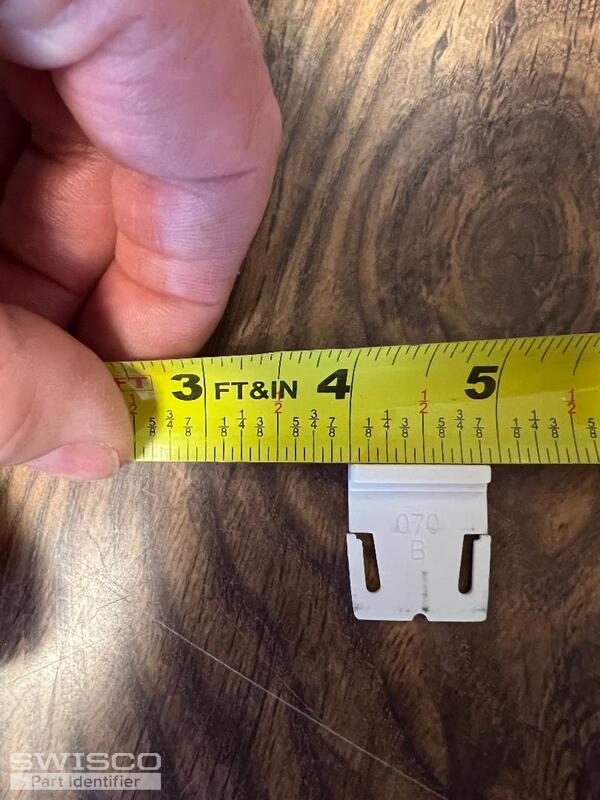

Screen Clip width is approximately: 15/16"

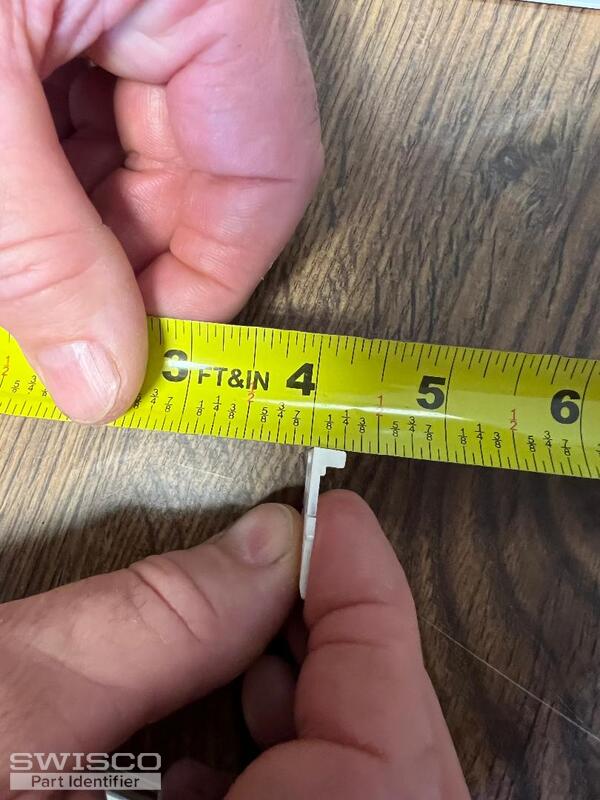

Screen Clip thickness is approximately: 1/4"

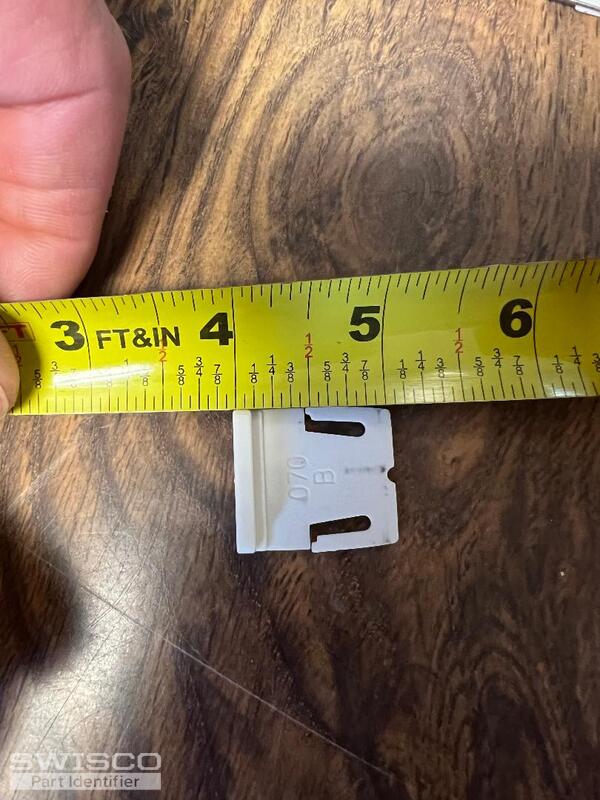

Screen Clip length is: 1 1/16"

Please let me know if you need more info. I am thinking the replacement for the screen corner is #95-245B and the screen clip is #70-222.

Look forward to hearing from you. Thank you for your help.

Anne
5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. I agree that your parts resemble the 70-222 clip and 95-245B as long as the dimensions match up to yours. Note that our corner has a raised edge, which appears to have broken off of the corner you removed.

Alternate image for 70-222
Alternate image for 70-222

Dimensions for 95-245B
Dimensions for 95-245B

Quick Learner from Wichita,KS
Thank you. I appreciate your help.

Anne
Casey
Casey from SWISCO
SWISCO
Expert

It's our pleasure. Just let us know if you need anything else.
