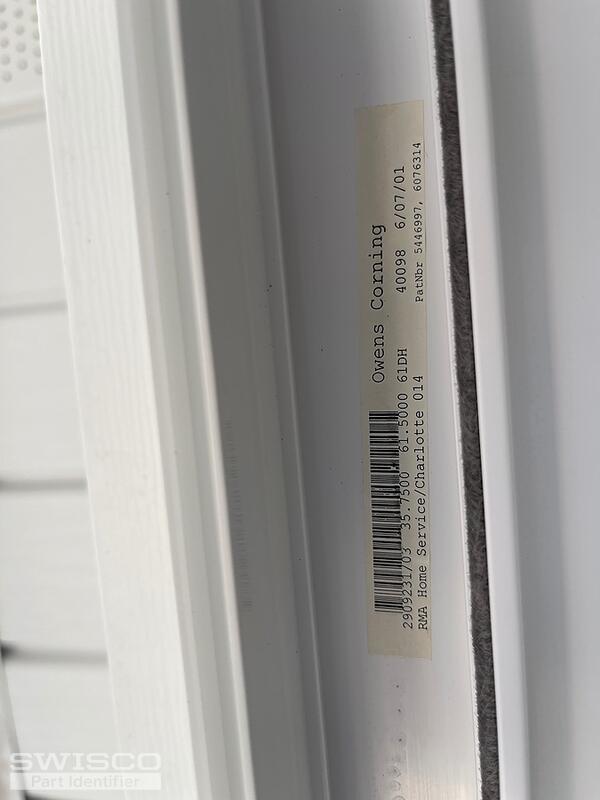

Owen's Corning window parts

Question

Left and right tilt latches, pivot shoe, and latch that keeps bottom sash from being opened up fully.

Casey · Accepted Answer

Hello,

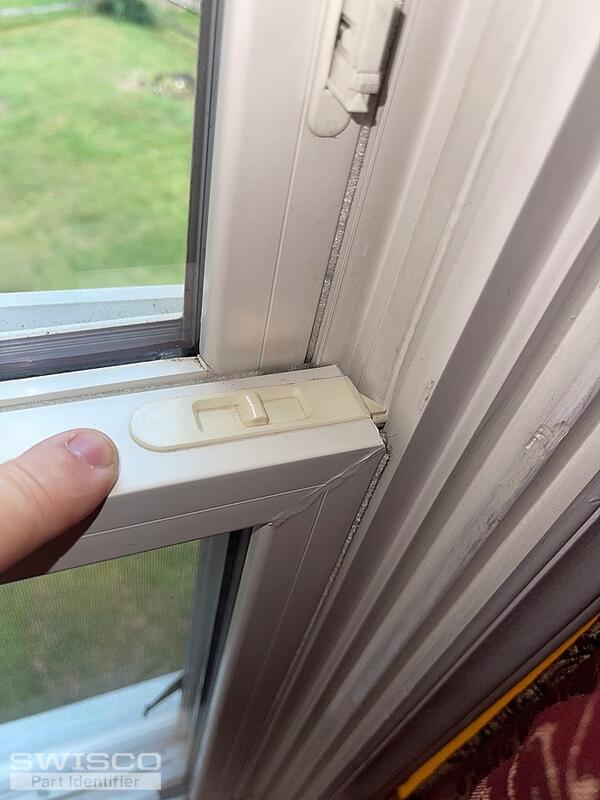

I'd suggest comparing the specifications of the 26-243A and 26-244A tilt latches to yours. The top is a different shape, but that won't matter as long as the base that installs in the cutout matches.

Dimensions for 26-244A

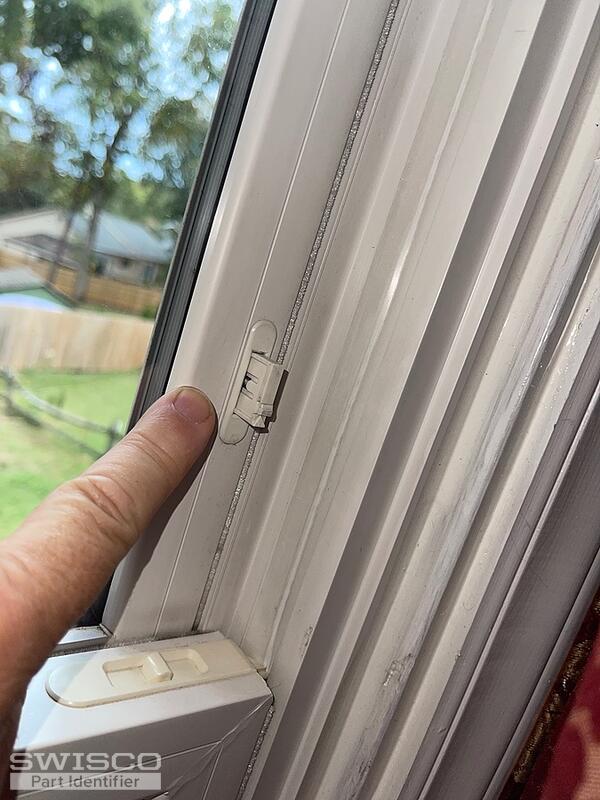

As for the vent latch, review the measurements of the 26-362 shown below.

Alternate image for 26-362

Alternate view of 26-362

Diagram of the cutout for the 26-362 vent latch

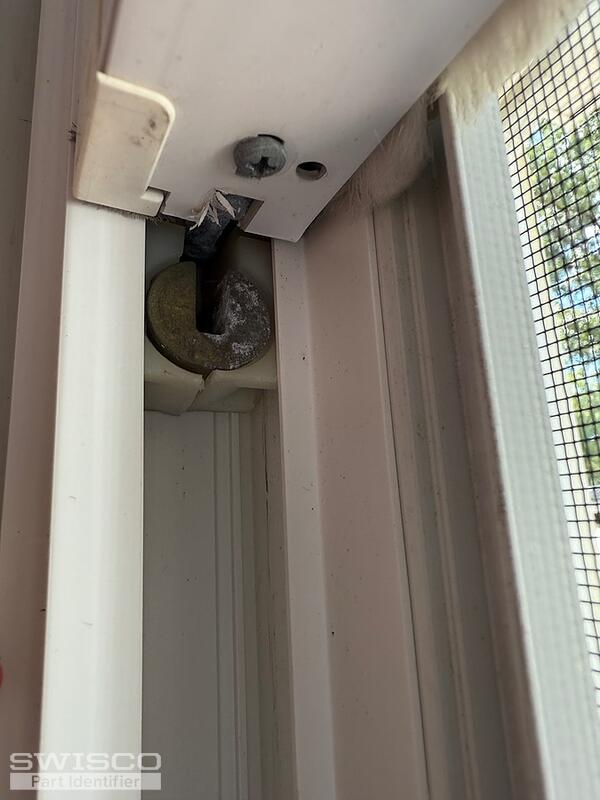

As for the pivot shoe, we can't be sure of what you need with the shoe still installed but the Certainteed 15-192 pivot shoe comes to mind, which uses the Series 170 and Series 171 coil springs.

There is also another version of this show commonly used in Simonton windows, which the 15-192 may not work to replace and would likely require shaving down the front of the shoe. For that reason, we came up with the conversion shown in the video below to replace all of the necessary balance hardware. Take a look and see what you think.
