Owens Corning windows

A quick learner from united states says:
June 26, 2019

Does anyone know how these come apart to replace pivot shoes or spiral balances?

Windows were installed about 1996 and are still in good shape, except for the pivot shoes. The frames are very rigid fiberglass, not vinyl so jamb spreaders will not work.

Thanks if you can help,

Bill

Thumbnail of the uploaded file named IMG_3792.jpg
Thumbnail of the uploaded file named IMG_3793.jpg

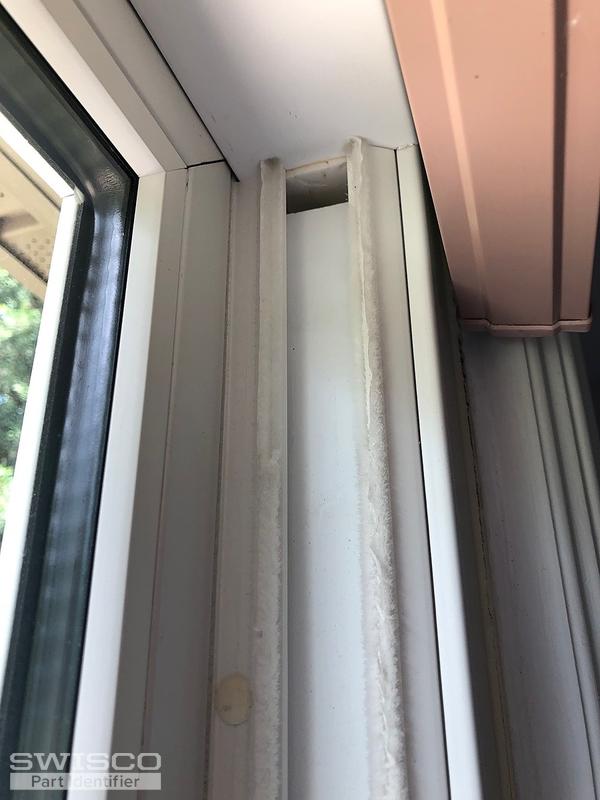

Thumbnail of the uploaded file named IMG_3794.jpg
Thumbnail of the uploaded file named IMG_3795.jpg
Profile picture of Tom
Tom from SWISCO responded:
July 1, 2019

Sure, we actually have a couple videos on how to replace this kind of shoe. I'll link them below for your convenience.

Once you have a shoe out, I'd like you to tell me its thickness. That dimension alone should be enough for me to identify a good replacement.
A quick learner from 22043 says:
September 16, 2019
the thickness of the old pivot shoes is 5/8"
I have previously ordered pivot shoes 15-047 from Swisco in 2017, but have not been able to figure out how the windows come apart. 15-047 seems to be the correct part.

Your videos are not appropriate for this type of window, the framing is much too rigid for the spread method and the balance and sash covers cannot be pried off with a screwdriver, as in first video.

In the second photo I previously sent you, a dirty-looking flat white cap is visible. When pried off, there are philips head screws under each of these. Perhaps if unscrewed, the assembly could be pulled out and reveal the pivot shoes?
Profile picture of Tom
Tom from SWISCO responded:
September 20, 2019

I'm honestly not sure. I've never come across a tilt window where at least one of the two prior methods didn't work. If your window is special in some way, then I'm afraid it would fall outside our ability to advise you.  You'd have to contact the original manufacturer of the window to see what special method is required.
A handy person from Clifton, NJ says:
January 4, 2021
Hi Bill,

I have the same type of Owens Corning windows in my house. Did you figure out how to remove the pivot shoe? If so, do you mind sharing?

Thanks.
Kelly.
