PARTS NEEDED

A home owner from Bethalto, IL says:
Need 1 folding crank handle white. I think od of spline is 5/16"

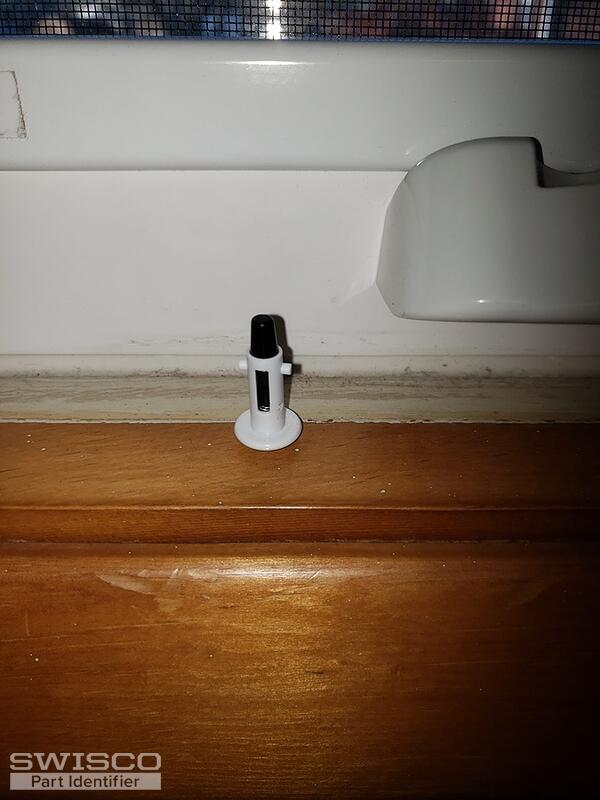

Need 4 screen retaining pins

See pics
Thumbnail of the uploaded file named 20220109_152644.jpg
Thumbnail of the uploaded file named 20220109_152637.jpg
Thumbnail of the uploaded file named 20220109_152627.jpg
Thumbnail of the uploaded file named 20220109_152620.jpg

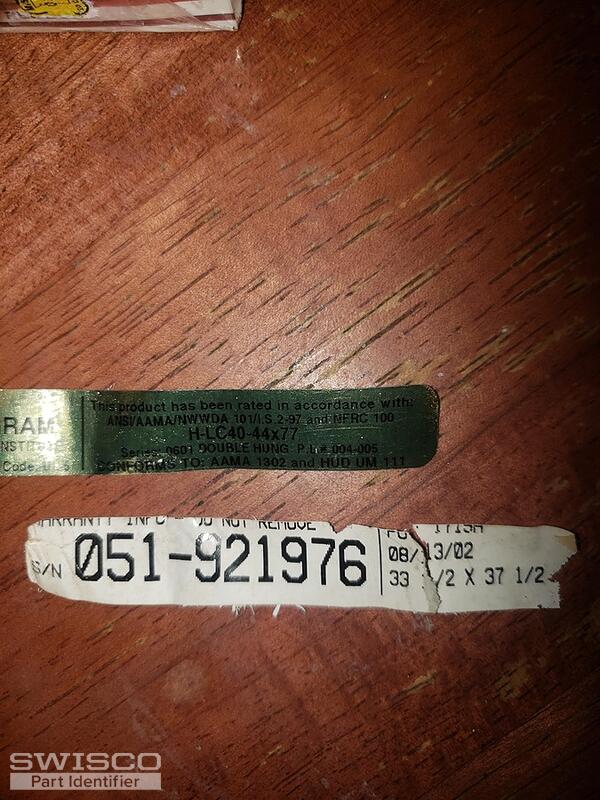

Thumbnail of the uploaded file named 16417746841757574693400189852002.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello! I recommend double checking the size of the original spline. based on the design of this hardware it should be 11/32".

In the meantime, see our 39-375. This appears to be a good match for the original.

A home owner from Bethalto, IL says:
Your probably right on the spine. I measured it with a crappy tape in bad lighting. That looks like the handle. What about the screen retaining pin?
Profile picture of Tom
Tom from SWISCO responded:

Oh, I'm sorry for overlooking that piece. Reviewing it now I can't say that I've ever seen it before. Would it be possible to see a photo of how it relates to the screen? That may give us the clue we need to track down a good match.
