PARTS NEEDED - SIMONTON BRAND WINDOWS

A quick learner from West Union WV says:
May 19, 2022

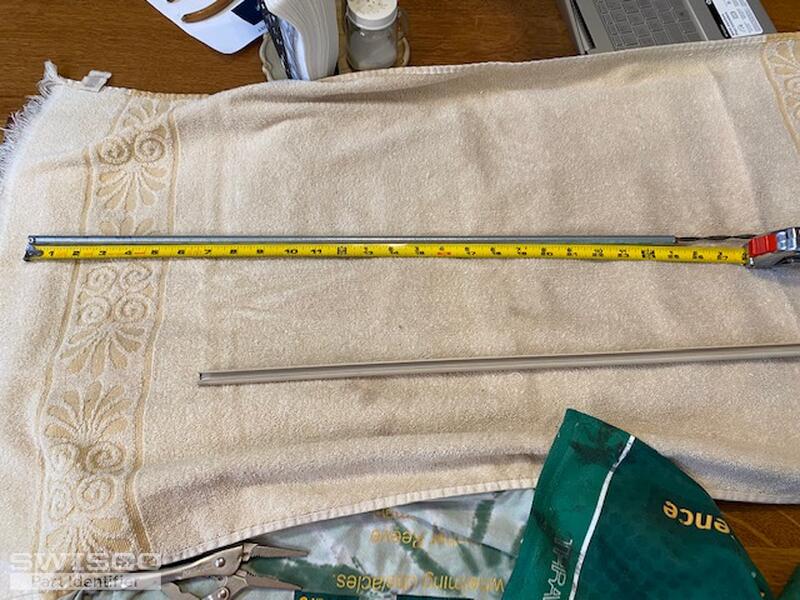

Balance Spring is 25" - Red tip - Sash weighs 18#. Please advise with correct part numbers. Thank you
Thumbnail of the uploaded file named IMG_1218.jpg
Thumbnail of the uploaded file named IMG_1221.jpg
Thumbnail of the uploaded file named IMG_1222.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 23, 2022

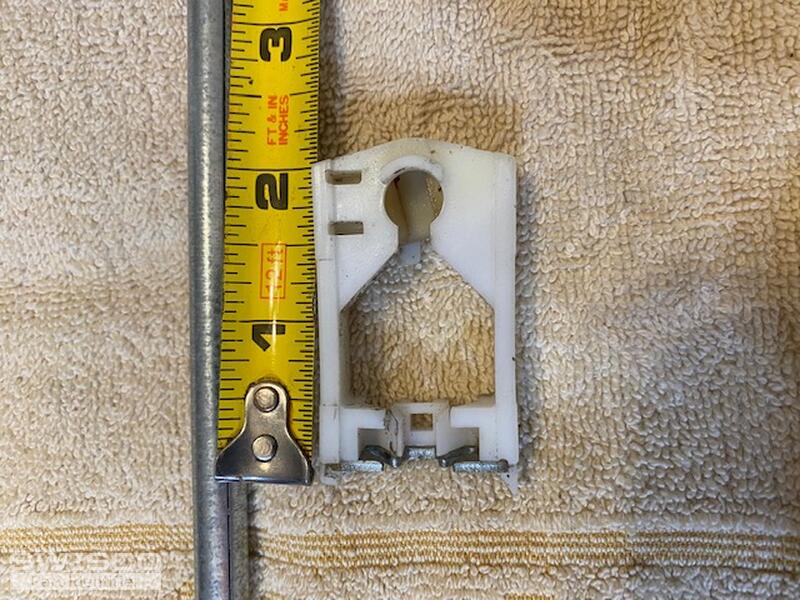

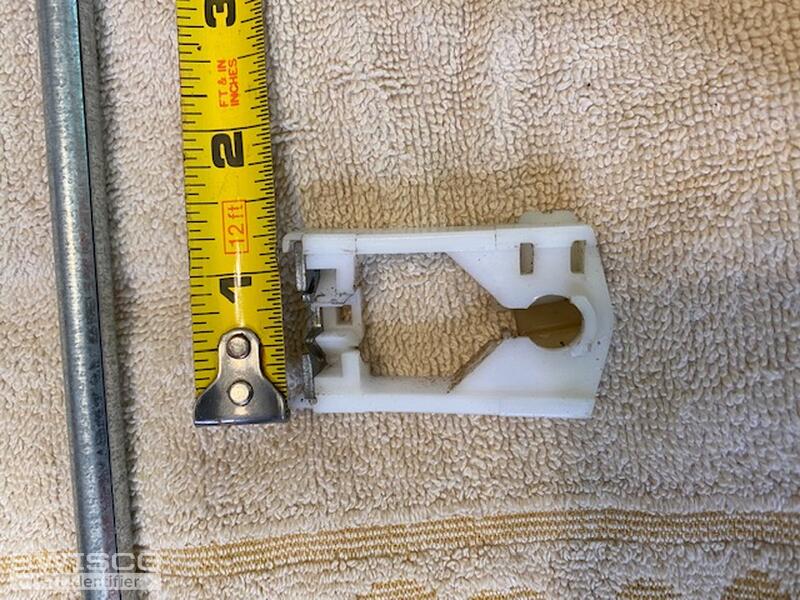

Hello! Your pivot shoe resembles our 15-210 at first glance, but you should review our dimensions to ensure that they all match up.

As for the spiral balance, it would be either our 9/16" diameter Series 600 or 3/8" diameter Series 900 , depending on the diameter of the outer tube.

Alternate image for 15-210
Alternate image for 15-210

Corner Locking Pivot Carrier, Black
Corner Locking Pivot Carrier, Black
15-210
$2.67
