PATIO DOOR SLIDER : SWISCO.com

Home Owner from Maine.

Oct 20, 2023 10:31 am

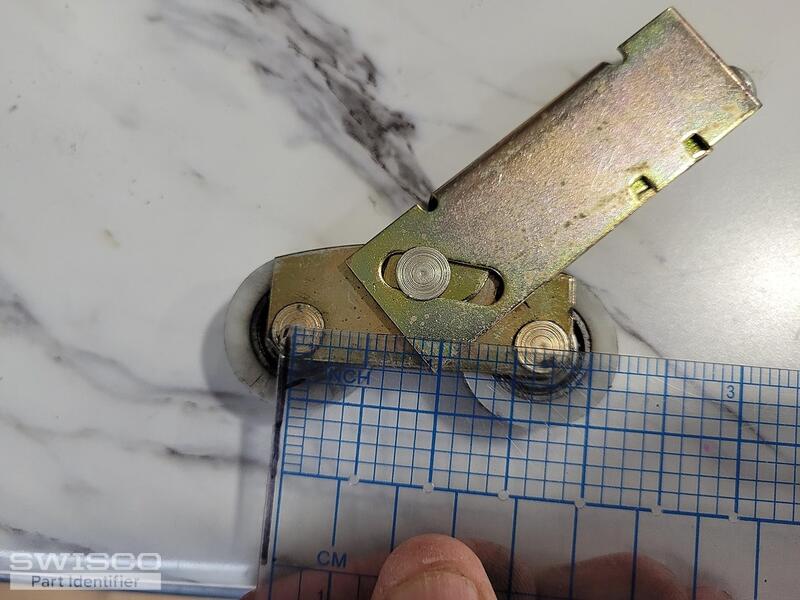

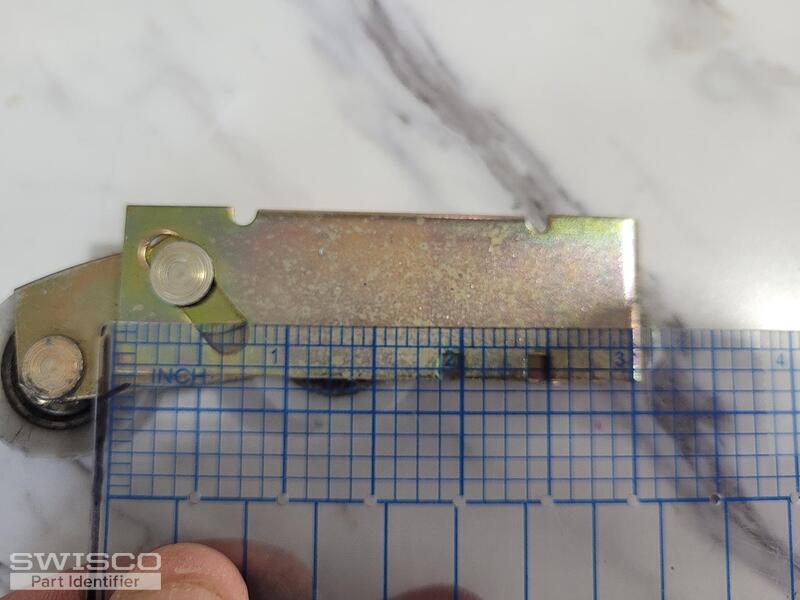

Hi, I'm trying to identify which roller is closest to mine. 81-138 looks extremely close, but the width is not quite right. Is this the best suited one? Thanks!

5 user uploaded images

4 Replies

Casey from SWISCO

Oct 23, 2023 11:16 am

Hello,

We'd be happy to confirm if the 81-138 would be our best match for your roller but we would need you to write out the exact width of your assembly to compare to our inventory. If the housing height and wheel diameter differ from the dimensions below, we'll need you to write out those measurements as well since, unfortunately, it's tough to make out exact dimensions from photos. Thank you!

Alternate image for 81-138

Home Owner from Maine.

Oct 24, 2023 7:42 pm

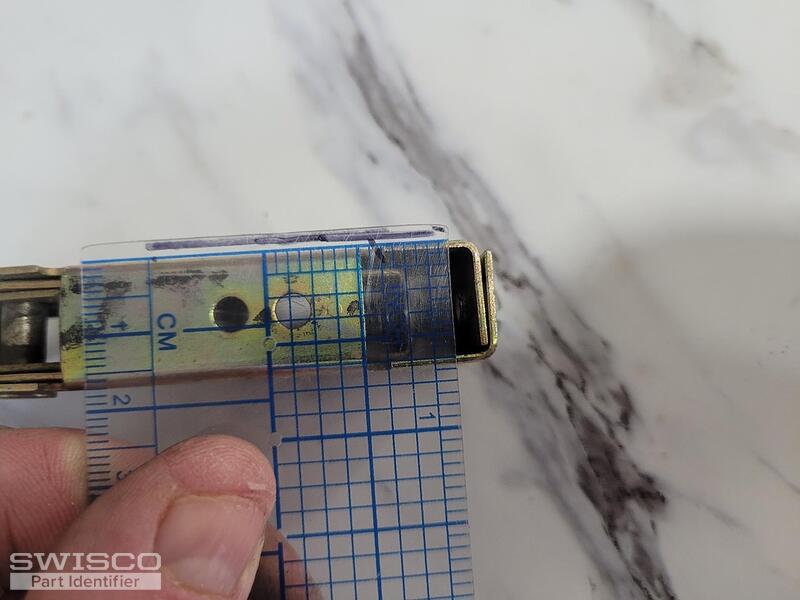

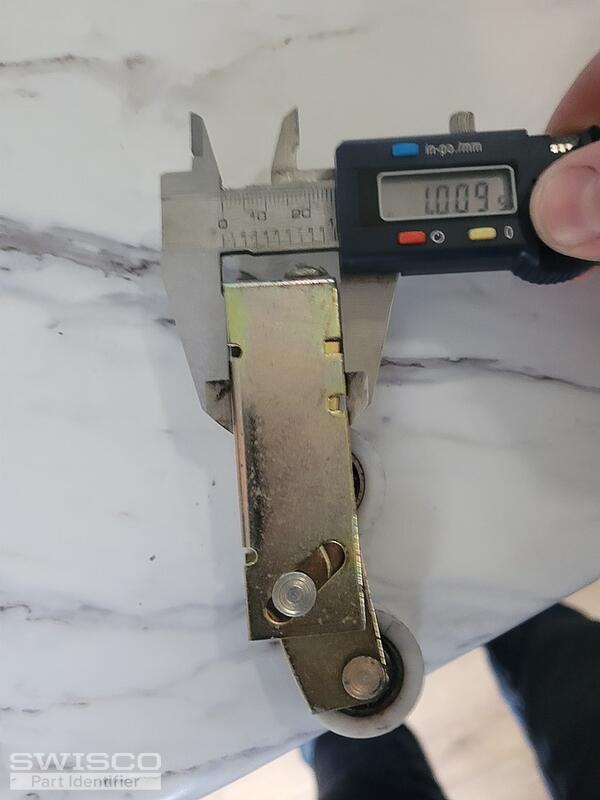

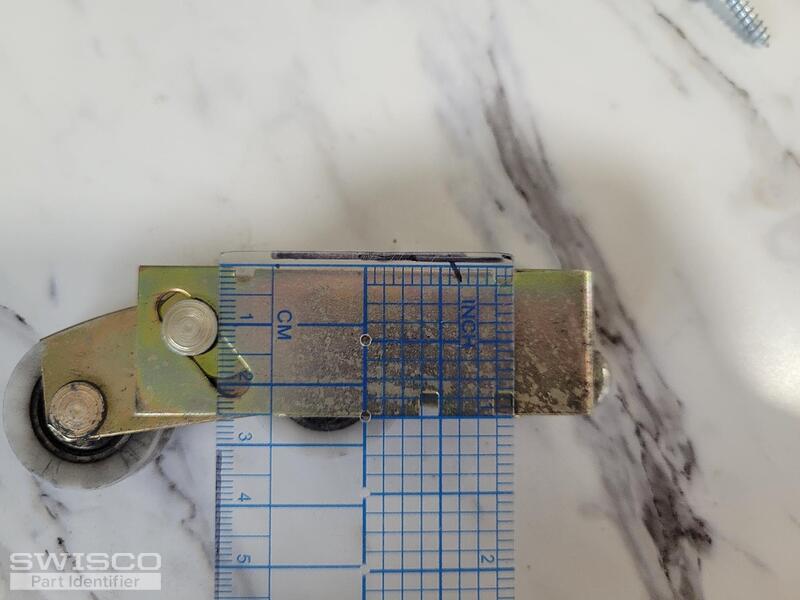

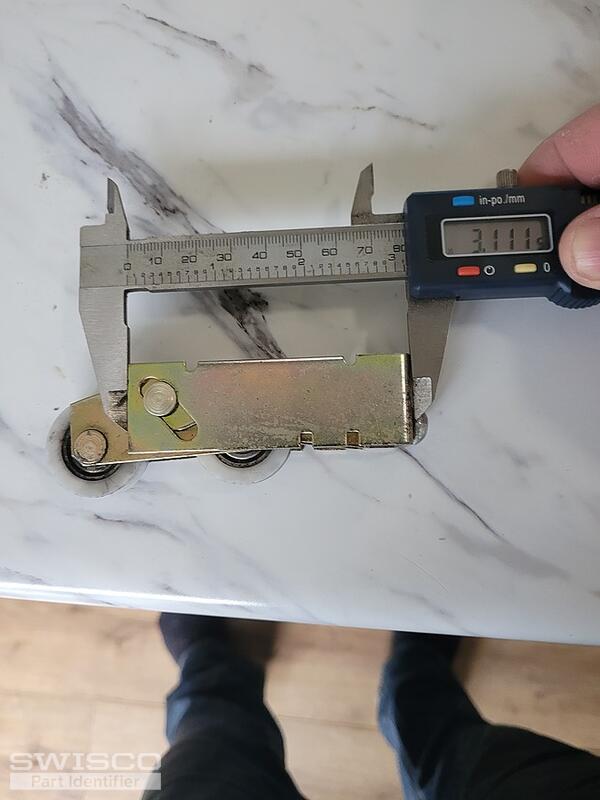

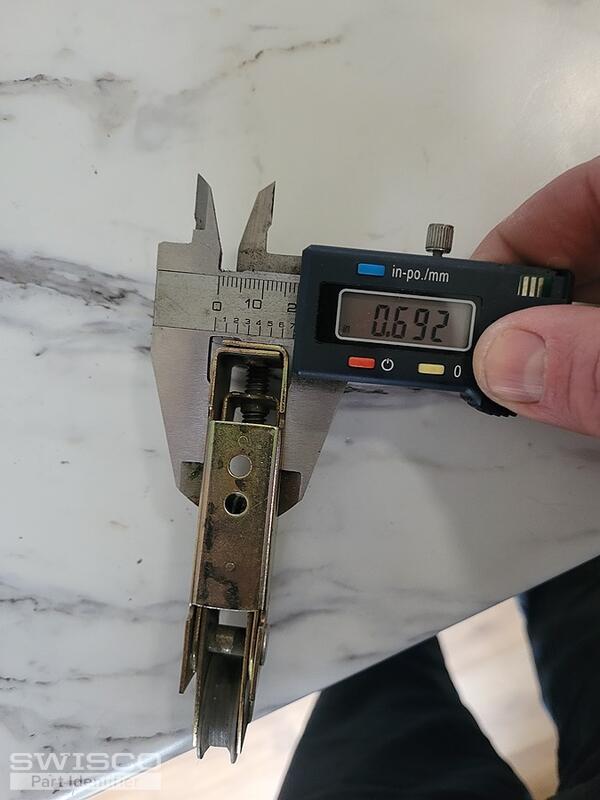

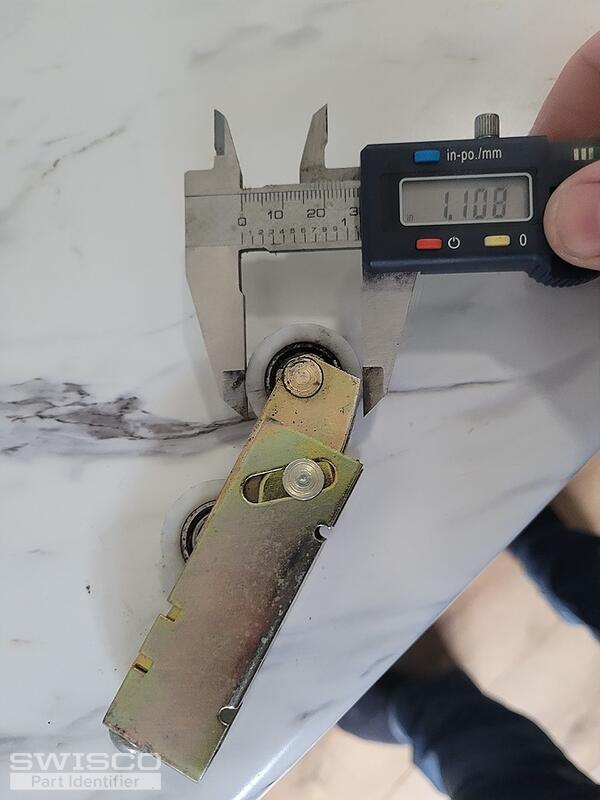

Hi, here are some more accurate measurements. The only thing I'm questioning is the width, but I think it should be fine!

4 user uploaded images

Dave Sr. from SWISCO

Oct 26, 2023 10:34 am

Take a look at the 81-155 and 81-165 tandem rollers. They both have an 11/16" wide housing. Review the housing dimensions and roller diameter compared to your roller to determine if you could use either option as a replacement.

Alternate image for 81-155

Alternate image for 81-165
