PGT 4001 Single Hung Window Balances

Home Owner from SW Florida
Need help please.
I need to replace 4 x 35" Balances for single hung windows, the sash weighing 23lbs. The channels are approx. 5/8" wide and 5/8" deep, (although this could be slightly different as my tape measure only goes to 1/8ths).
The writing on the Balance says: 34-4 LX CMC 7

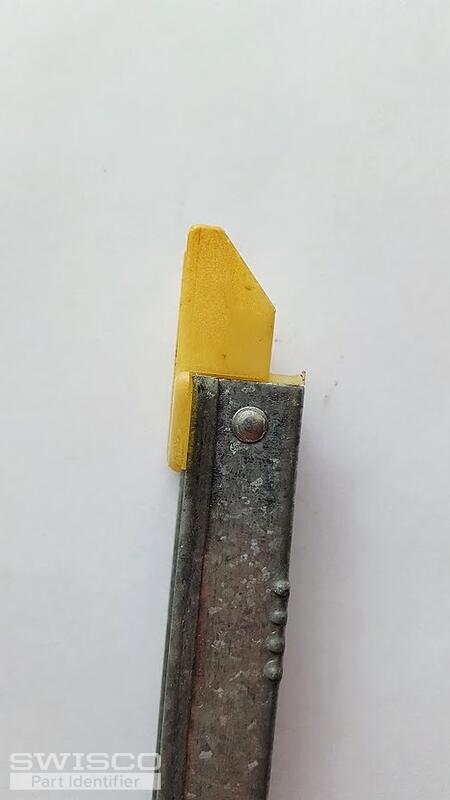

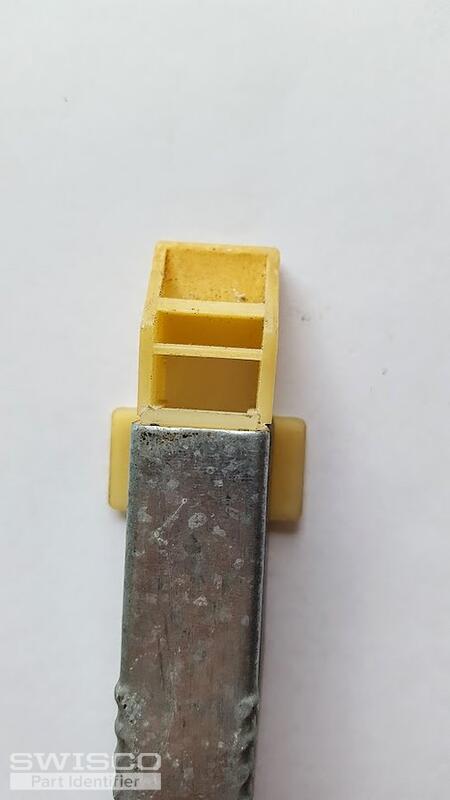

The plastic pieces are about 1-1/4" long.

Thank you for your help. I have more photo's if you need them!
Cheers.

5 user uploaded images
3 Replies
Paul
Paul from SWISCO
SWISCO
Expert

Thanks for all the detailed information you supplied to us. See if our S395-35 channel balance with a 3440 option would work for you.

Home Owner
That looks exactly like the balances I have! Thank you so much for your help. Going to order them today.
