I am looking for parts for my home casement window. I need full hinge set replacement parts for the left and right.

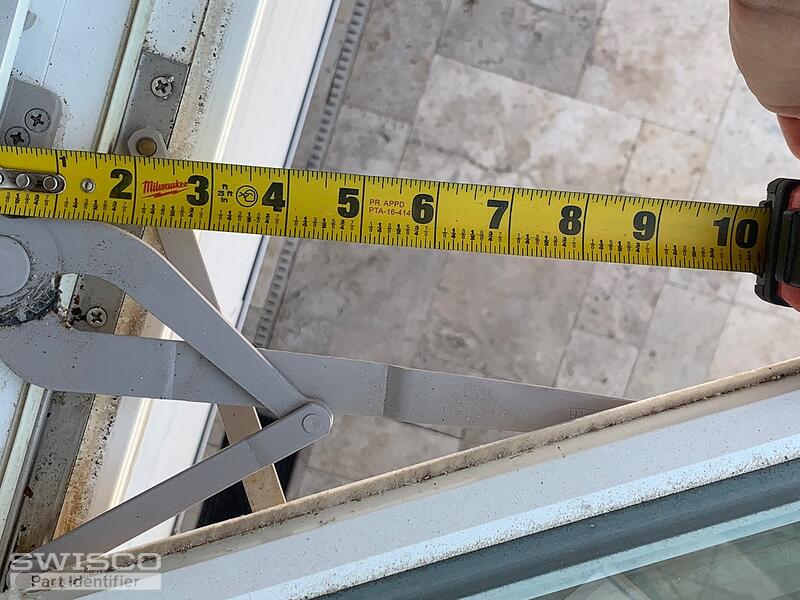

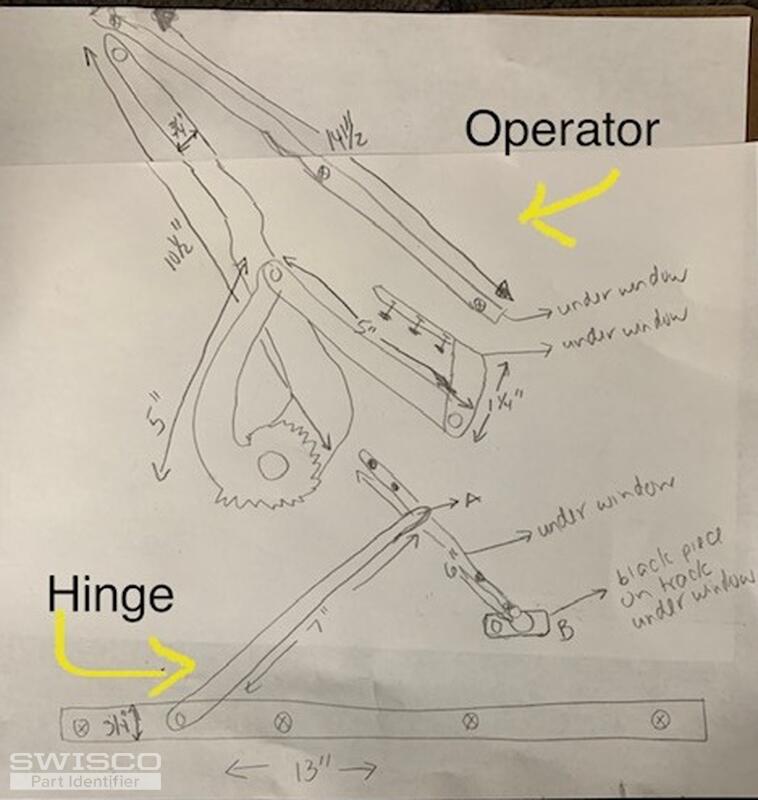

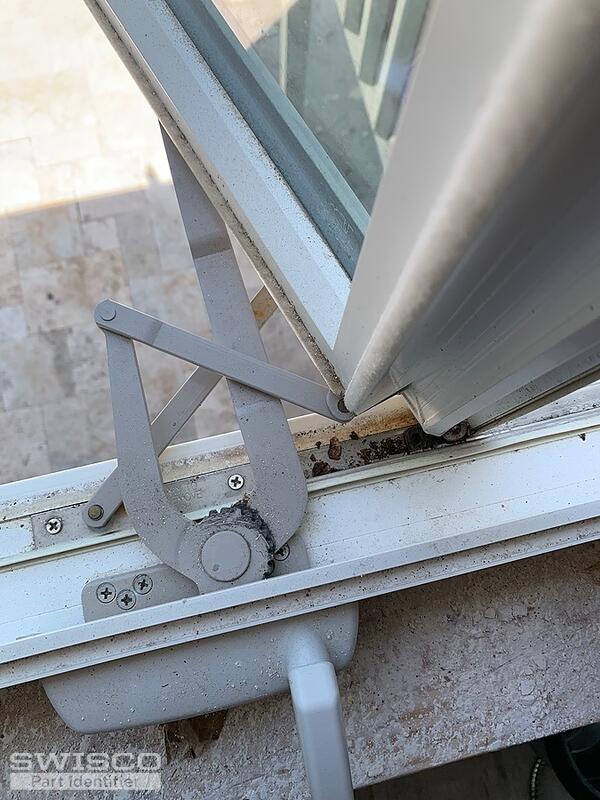

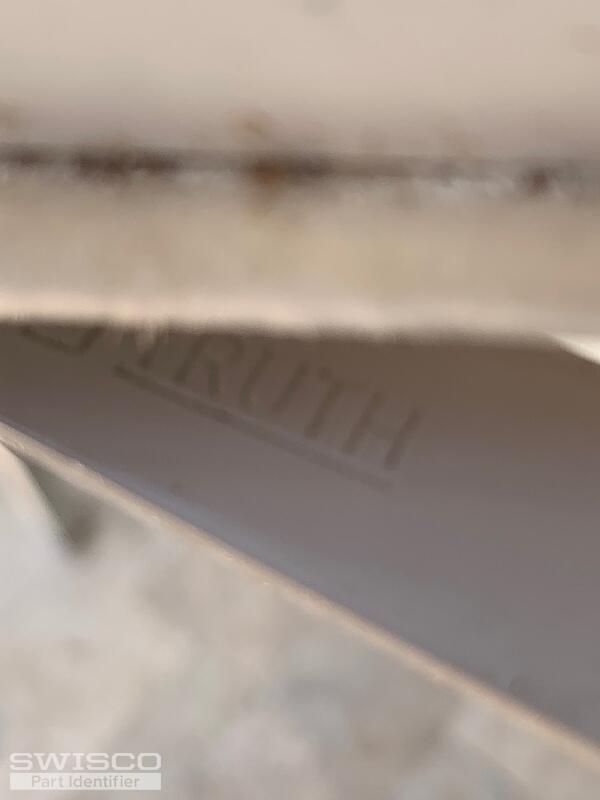

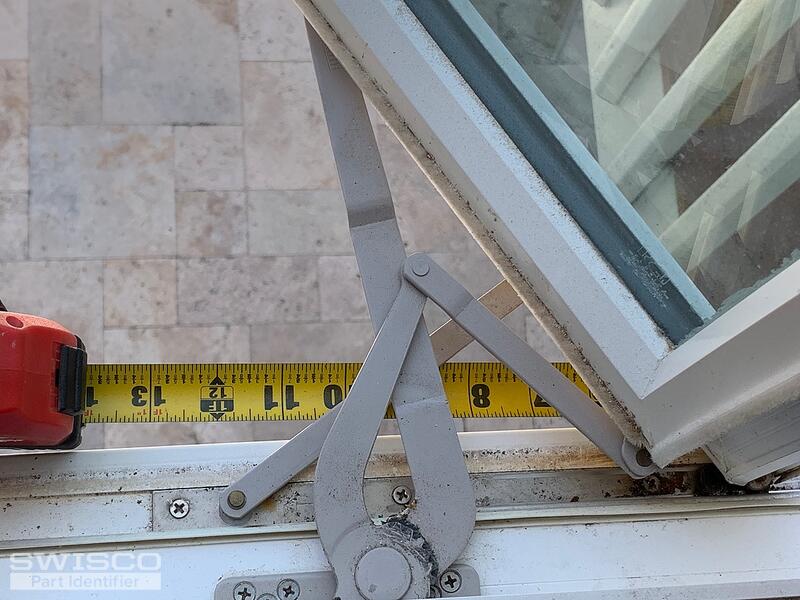

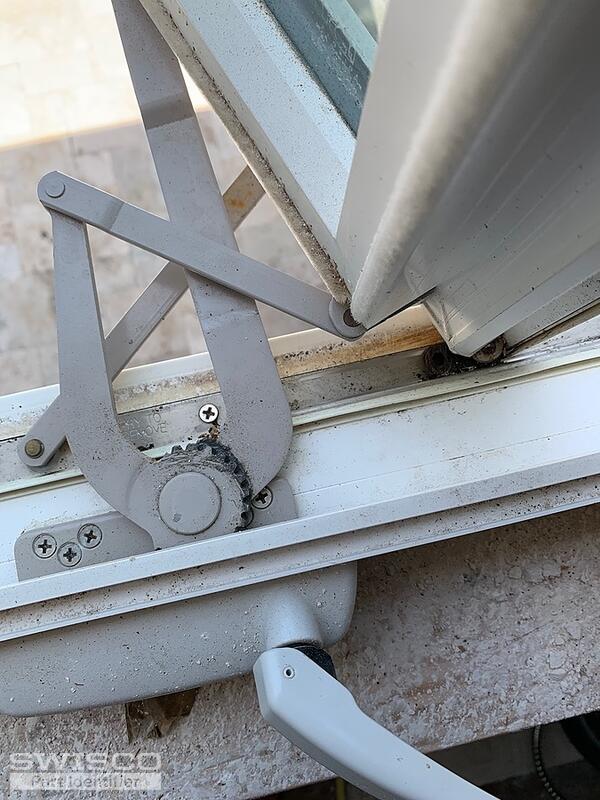

I am attaching pictures. The part to replace was manufactured by Truth.
The window is PGT. I contacted them but they no longer manufacture the model I have and referred me to you.
Here is the window specs:
MGR: PGT-2
Series: 440/540 Casement
A-L-I Validator
Etched in window:
10:25 08/13/2011
ANSI Z97. 1-2009
CFR 1201.11
S/16U A SGCC #2426
Window is 153 X 58
My name is Betty
|
Casey from SWISCO responded:
June 24, 2022
Hello, Take a look and compare the specifications of the 36-048 hinge set to yours. As for your operators, see the video below that will help you choose the correct Ecore operators for your windows depending on the type of track slide attached to the end of your long, straight arm. Thanks for posting! |
|
|
Casey from SWISCO responded:
June 27, 2022
Unfortunately, we do not carry a hinge-like yours with a 13" base but we do offer the 14" long 36-049. Either option could work for you but your sash may open a bit less or more depending on which option you go with. Some modifications may also be necessary. When you're ready, you can place your order directly on our website but you are also welcome to give our customer service team a call at (888) 991-1929 for assistance. Thank you! |
