PGT Channel Balance and Top Sash Replacement I.D

Quick Learner from Florida
Jan 24, 2019 1:48 pm
Attempting to identify the correct Channel Balance and Top sash guides.
Require 2 24 inch Channel Balance Springs and 2 Top sash guides.
Pictures attached.
5 Replies
Bob
Bob from SWISCO
Jan 24, 2019 3:02 pm
SWISCO
EXPERT

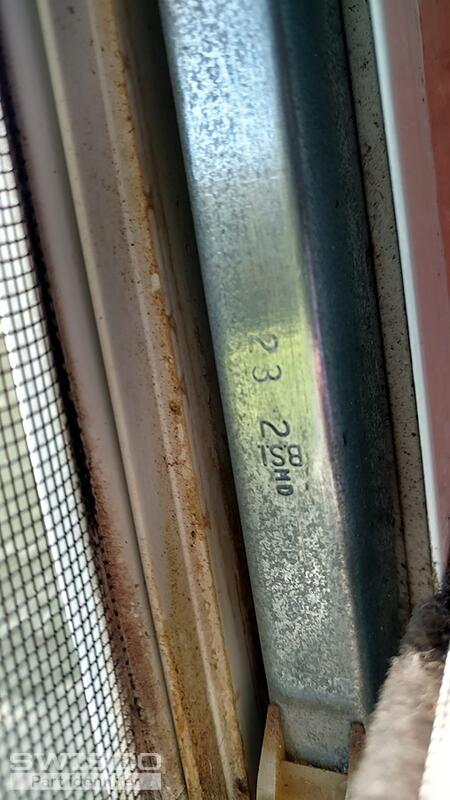

Thanks for posting. See our S395-24 Channel Balances. Your stamp option of 2320 corresponds to a window sash weight range of 9 through 15 lbs.

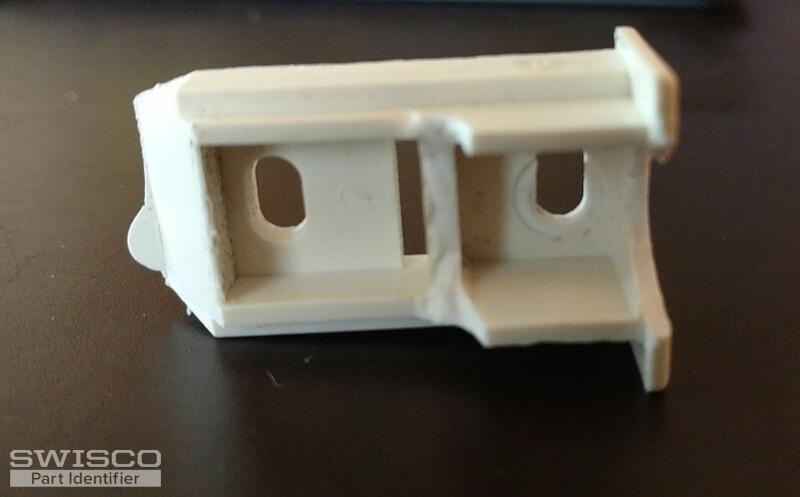

In regards to your Top Sash Guide, I can't be as certain as your old piece appears damaged, but the 18-166 seems like a good place to start. Carefully compare the dimensions listed on the product page and see if you think it's a possible match.

Quick Learner from Florida
Jan 24, 2019 3:32 pm
Perfect. Looks like a good match. I'll place an order
Thanks, Mike
Quick Learner from Florida
Jan 24, 2019 4:00 pm
The 18-166 looks like a perfect size match but appears the top of mine is hand notched out at the top?. Strange?
Bob
Bob from SWISCO
Jan 25, 2019 9:26 am
SWISCO
EXPERT

Does the Top Sash Guide on the other side of the window also have this 'cut out' design? Could we see a picture of it? In any event I am not certain this would matter in terms of function, but I will see if one of my colleagues can confirm this.

Quick Learner from Florida
Jan 25, 2019 9:49 am
I need to remove the window. Will advise
