PGT Single Hung window balances
Handy Person from Naples FL
Nov 22, 2020 11:33 am

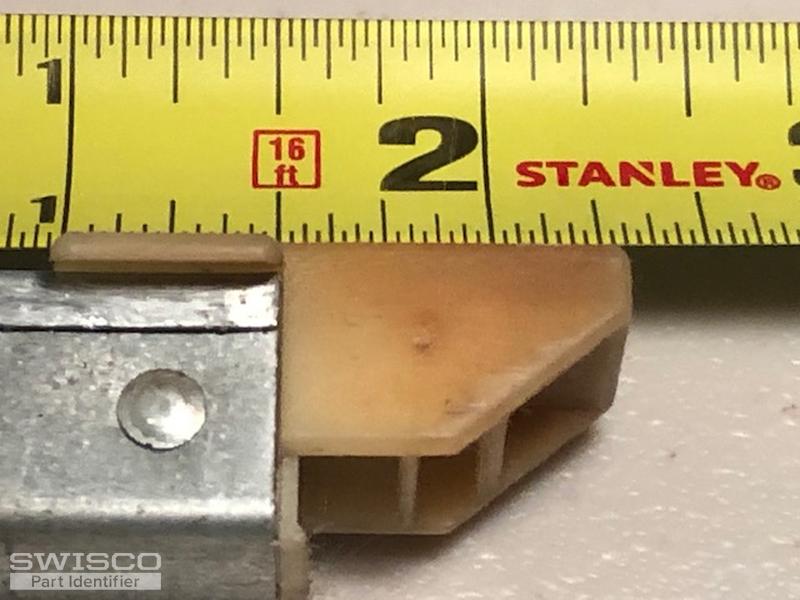

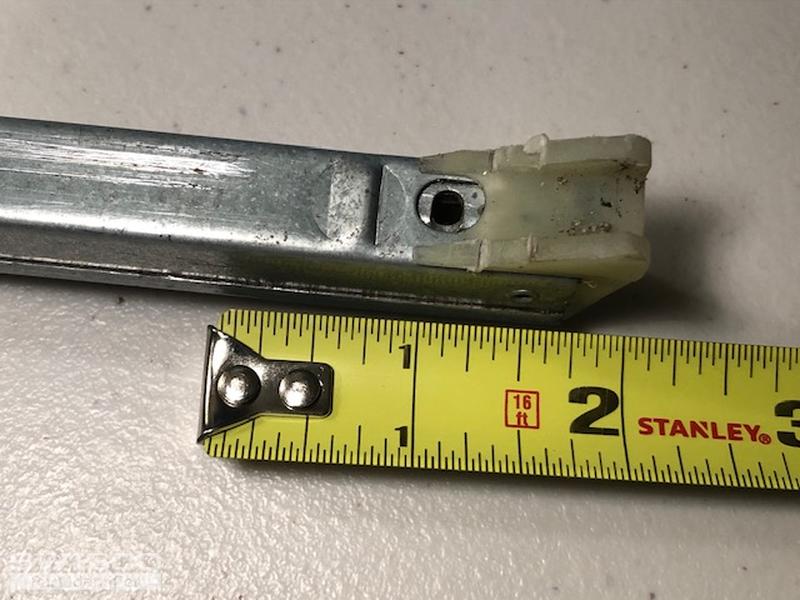

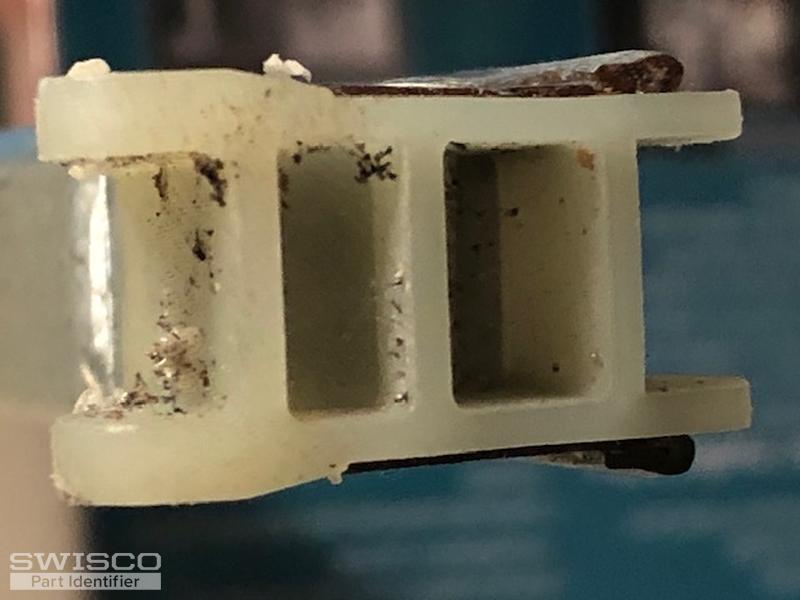

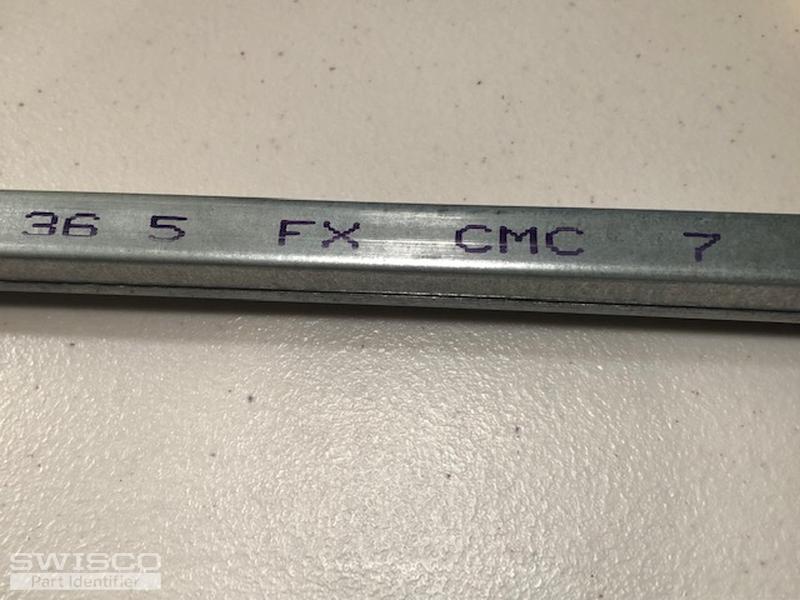

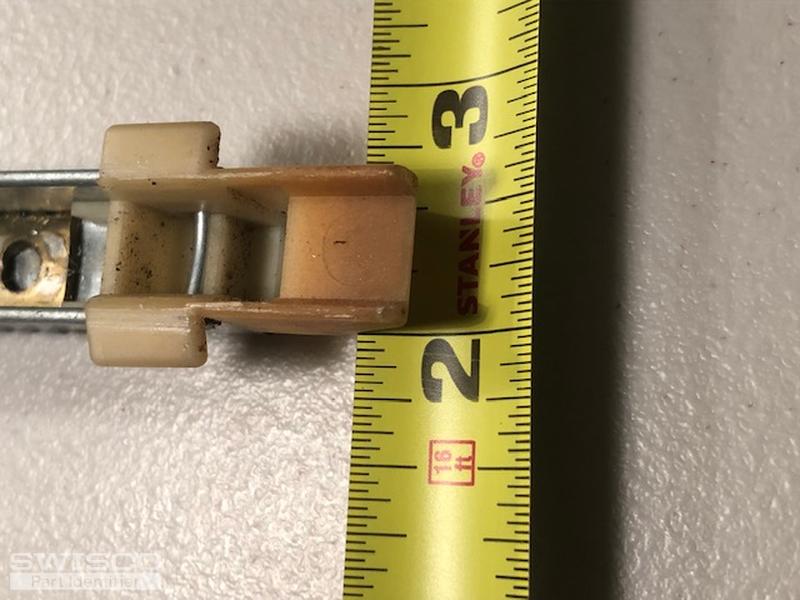

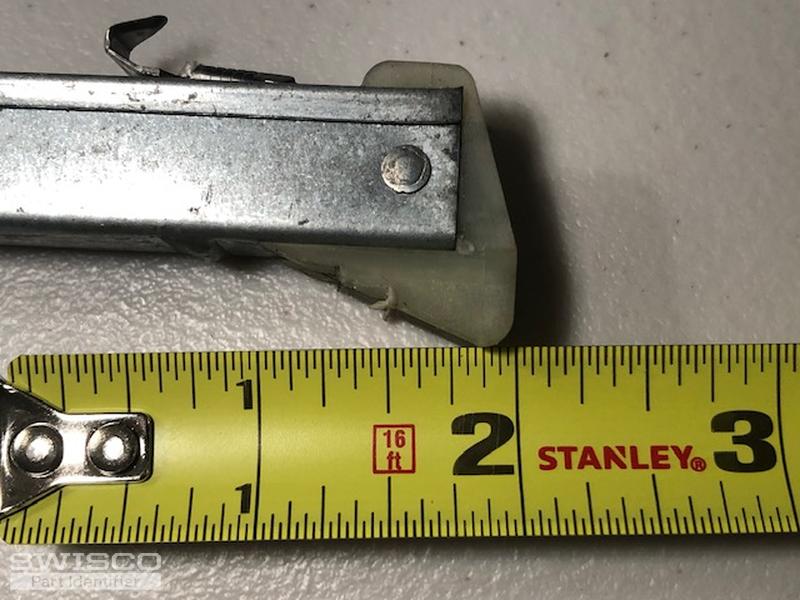

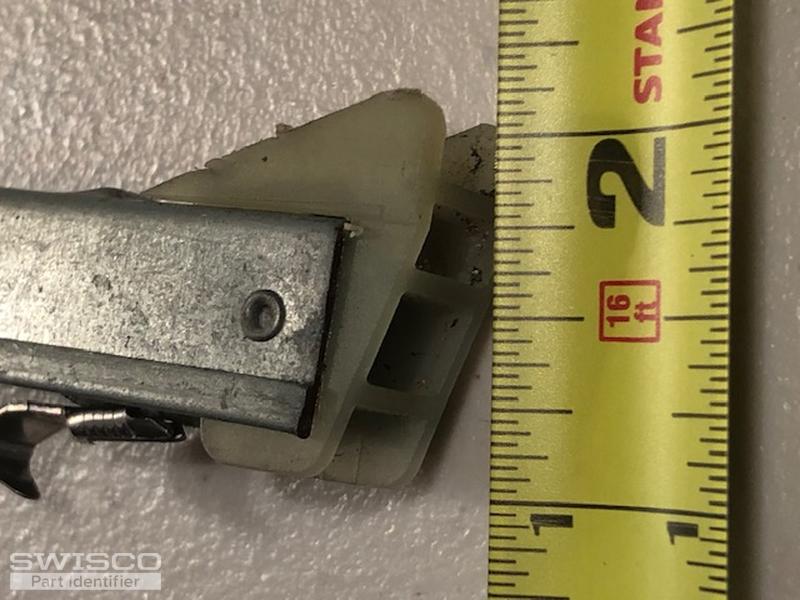

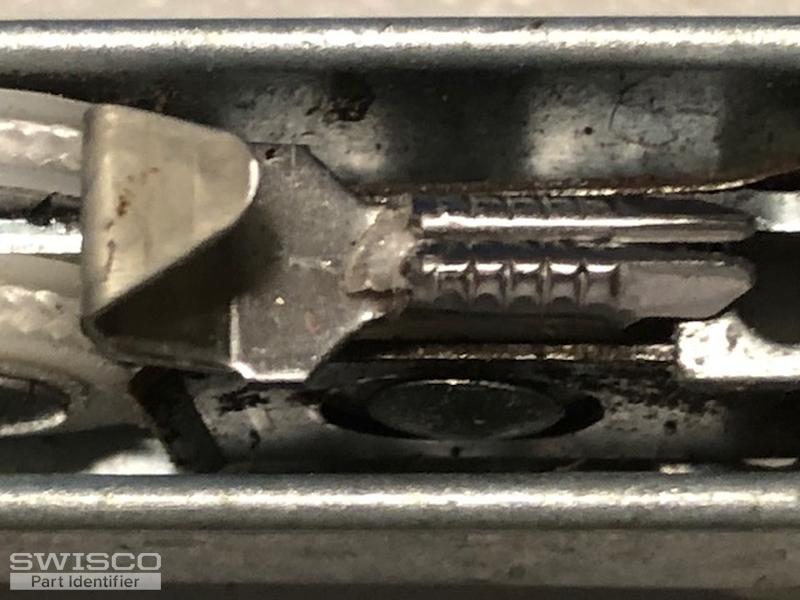

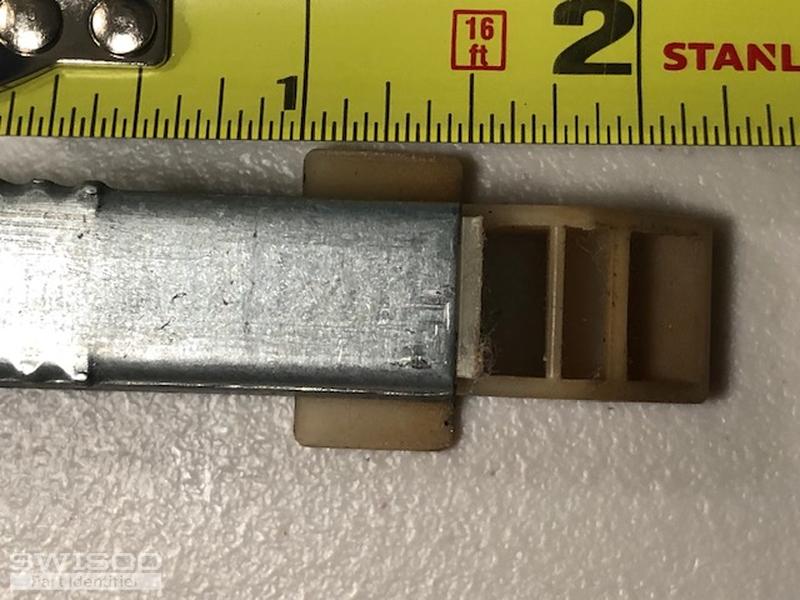

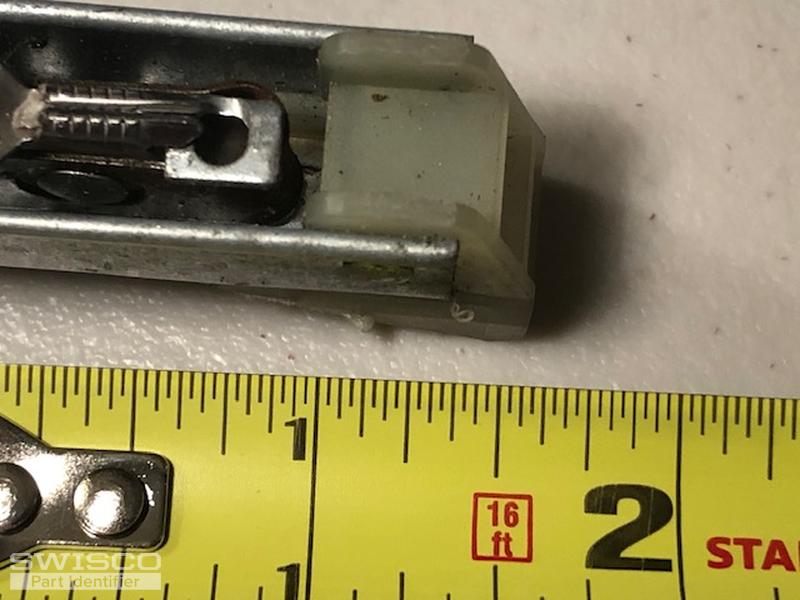

I have a PGT single hung window approx. 12 years old. I need new balancing springs and sash guides. I have attached pictures of these parts. From my studying the pictures on your site, it appears I need S385-37, with top 19-005 and bottom 15-004. The balance spring identifies it as 36 5 FX CMC 7. I thought that indicated a 50# window, but I weighed the window at 35#. All measurements seem to fit this configuration. The only difference I can identify is that the bottom nylon fitting on my spring balance does not have the "ears" on the bottom side (hook side) as seems to be shown on the pictures. Could you please take a look at the pictures and let me know if I can just cut these ears off? Also, do the pictures look like a S385 37? Thank you very much!
5 user uploaded images
3 Replies
Handy Person from Naples FL
Nov 22, 2020 11:36 am
I sent a previous email, but could not include all pictures.
5 user uploaded images
Casey from SWISCO
Nov 25, 2020 10:39 am
Hello,
Take a look and compare our S395-37 channel balance with a 3650 strength option to yours. Thanks for posting!
