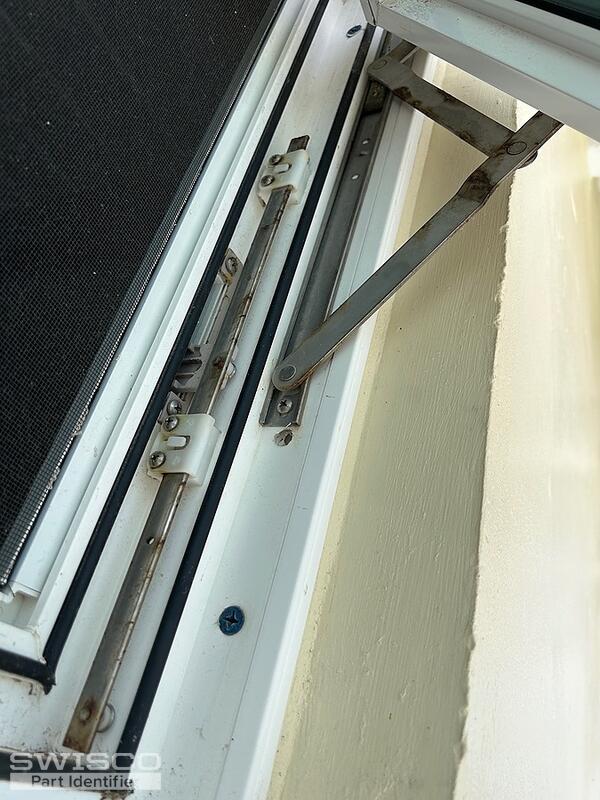

Hi?see pics for model/serial number. Need the attachment hardware for the crank mechanism for where it attaches at bottom of window. Also need the left and right side hinged support hardware (?). Picture is if a functioning window ?the other I found out the hard way was missing a good chunk of hardware. Thanks for your help.
Brian
PGT awning windows 5440/5540
Home Owner from USVI
May 10, 2023 9:18 pm
5 user uploaded images
2 Replies
Casey from SWISCO
May 12, 2023 10:17 am
Hello,
I would recommend starting by comparing the specifications of the 39-239B awning operator to yours. If it's a match, see the 39-536 pivot side and 39-558 detach clip used with this assembly. If you need the track as well, see the 39-556.
As for your four-bar hinges, take a look at our selection here depending on the size of your originals. Thank you!
Alternate view and dimensions for 39-239B
Dimensions for 39-239B
Alternate image for 39-536
Alternate image for 39-558
