PGT window channel balance

Quick Learner from Florida
I believe I need the S350-30 but want to check if possible. Stamp Caldwell 29 6
2 user uploaded images
7 Replies
Emily
Emily from SWISCO
SWISCO
Expert

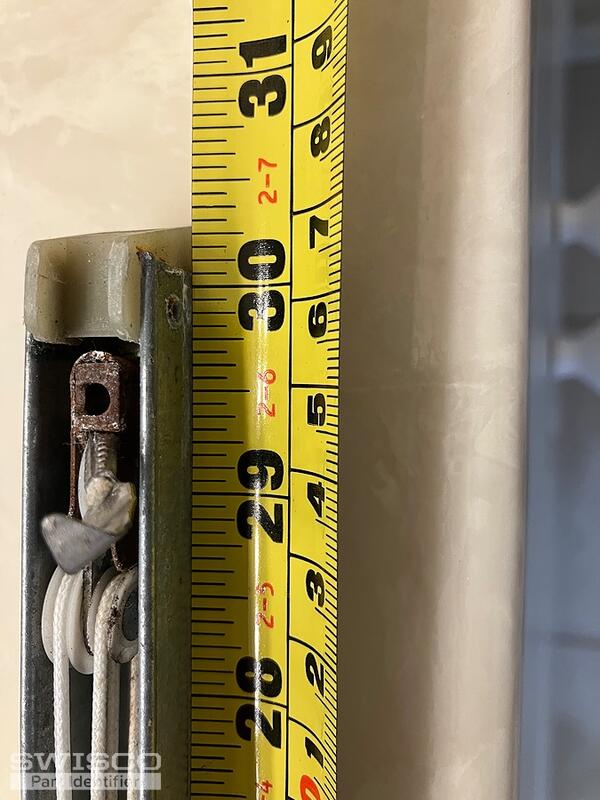

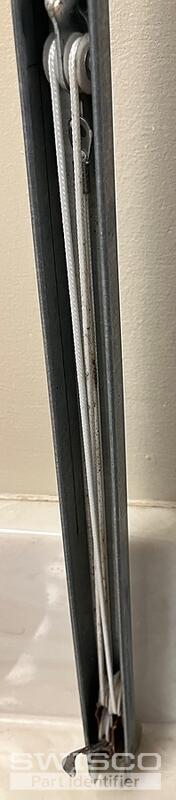

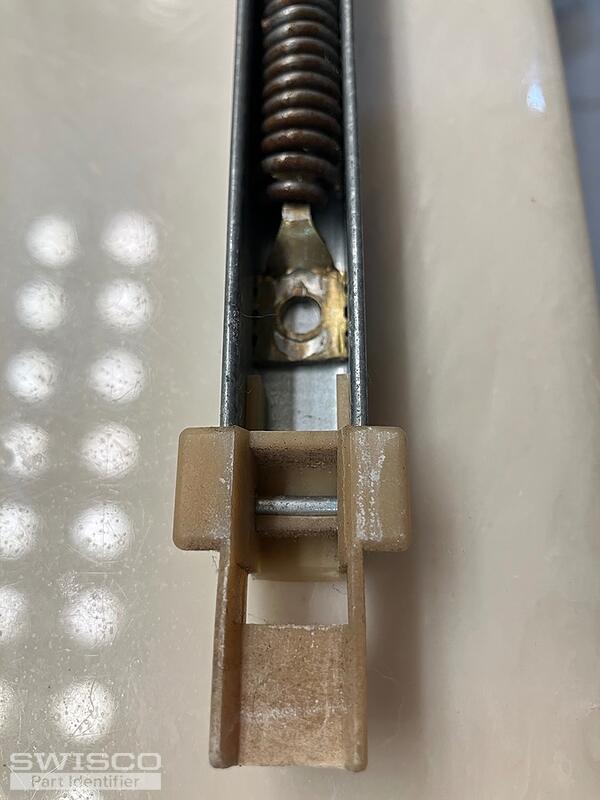

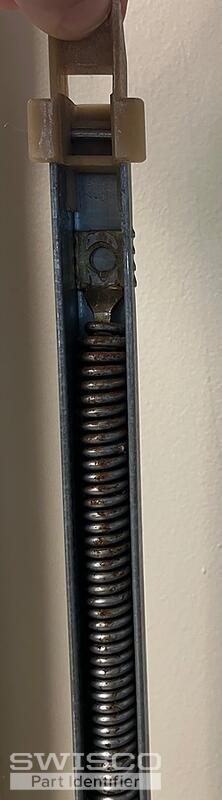

Thanks for reaching out to us. I don’t believe this is the Series 350. Your balance looks like it has a winged top fitting, while the S350 features a wingless top fitting. Could you please confirm this for us? Additionally, could you provide a photo of the bottom shoe? We would also like to see an image of the inside of the balance’s metal channel, where the innerspring connects to the pulley mechanism; this connection is located in the middle of the channel. Thank you!

Quick Learner from Florida
here you go! Thanks
3 user uploaded images
Quick Learner from Florida
adding a few more
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thank you kindly! Based on these new photos, the S395-30 looks like a better match. This balance comes attached with the 19-005 winged top and 15-001 1-1/8" deep bottom fittings. You can also select the 2960 stamp option for your replacements.

Please let me know if you have any questions!

Quick Learner from Florida
Thank you so much I'll give your suggestion a try!
Emily
Emily from SWISCO
SWISCO
Expert

No problem, good luck with the repair!
